The high-frequency hydraulic Breaker for excavators is a specialized tool designed for faster, more efficient rock and concrete breaking. Powered by the excavator’s hydraulic system, this attachment delivers rapid, high-impact blows with reduced recoil and noise. The high-frequency feature allows it to strike more times per minute than standard breakers, resulting in smoother operation and quicker material fragmentation.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Advantages of High-Frequency Hydraulic Breaker for Excavator
Choosing a high-frequency hydraulic Breaker for an Excavator offers major performance and safety advantages over conventional breakers.
Faster Impact Rate – Higher blows per minute (BPM) means quicker material breakdown.
Lower Vibration – Reduces stress on both the excavator and the operator.
More Precise Control – Ideal for delicate demolitions in urban or confined areas.

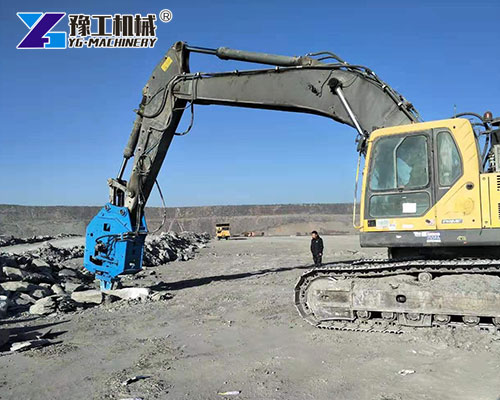

Application Scenarios for High-Frequency Hydraulic Breakers
The High Frequency Hydraulic Breaker for Excavator is used across multiple industries due to its versatility and speed. It is particularly effective in environments where precision and controlled force are needed.
Common applications include:
Urban Demolition Projects – Break walls, foundations, and reinforced concrete with less vibration and noise.
Road and Bridge Construction – Remove asphalt, pavement, and old bridge sections efficiently.
Trenching and Pipeline Work – Break hard rock or frozen ground to lay cables or pipelines.

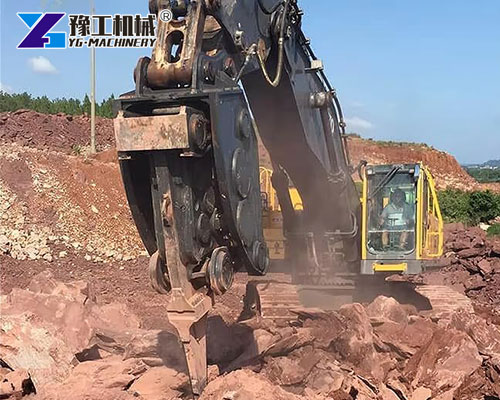

Mining and Quarrying – Ideal for secondary rock breaking in confined areas.
Tunnel Excavation – Suitable for environments where large hammers are impractical due to space limits.
These use cases make high-frequency breakers indispensable for modern excavation work.
The High Frequency Hydraulic Breaker for Excavator uses oil flow from the excavator’s auxiliary hydraulic system. This flow drives a piston that strikes a chisel or moil point at very high speeds.
Key components and their function:
Hydraulic Motor – Powers the internal hammering mechanism.
Accumulator – Stabilizes pressure and reduces hydraulic surges.
Tool Steel Bit – Transmits energy directly into the target material.
Control Valve – Regulates the blow frequency and impact force.
Housing – Reduces noise and protects internal parts from dust and debris.
By cycling these components rapidly, the breaker delivers consistent, high-speed strikes that break down even the toughest materials with ease.

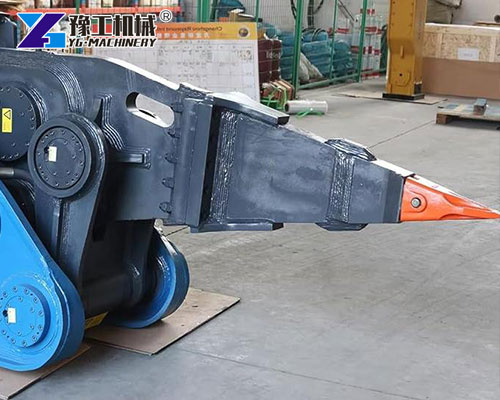

High-Frequency Breaker Supplier

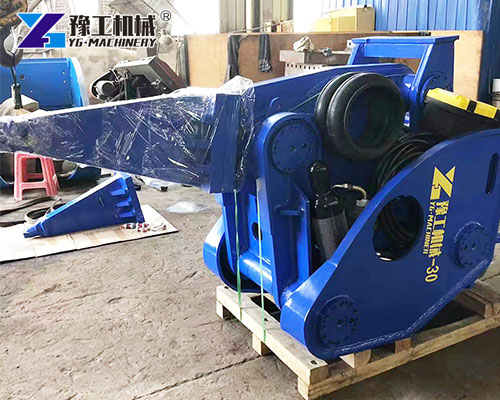

Low Noise High Frequency Excavator Hydraulic Breaker
Distinguishing the High-Frequency Hydraulic Breaker from Standard Hydraulic Breakers
While both high-frequency hydraulic Breakers for Excavators and standard hydraulic breakers serve the purpose of breaking materials, they differ significantly in their operating characteristics and optimal applications:
Feature
High Frequency Hydraulic Breaker
Standard Hydraulic Breaker
Blow Frequency
Higher (typically 900 – 2000+ BPM)
Lower (typically 400 – 1000 BPM)
Impact Energy per Blow
Generally lower
Generally higher
Breaking Action
Rapid, frequent impacts; effective for fracturing brittle materials
Powerful, single impacts; effective for crushing tougher materials
Efficiency
High efficiency in appropriate applications due to speed
High efficiency for heavy-duty, high-impact breaking
Vibration
Often, lower vibration transfer due to design
Can have higher vibration transfer
Noise Levels
Some modelsare designed with noise reduction features
Can be louder
Applications
Concrete demolition, asphalt removal, rock fracturing, trenching
Heavy concrete demolition, quarrying, primary breaking of rock
In essence, excavator high frequency hydraulic breakers excel in tasks requiring fast and consistent breaking of moderately hard materials, while standard breakers are better suited for heavy-duty demolition of very hard or thick materials where a high single-blow impact is crucial.
YG Machinery: Your Premier High-Frequency Hydraulic Breaker Manufacturer
YG Machinery is a leading manufacturer dedicated to providing high-performance and reliable construction equipment attachments, including the advanced High Frequency Hydraulic Breaker for Excavator. Our breakers are engineered with precision and built to withstand the rigors of demanding demolition environments. We utilize high-quality materials and innovative designs to ensure maximum productivity, durability, and operator comfort.
When you choose a high-frequency hydraulic Breaker for an Excavator from YG Machinery, you are investing in a tool that will enhance your excavator’s capabilities and significantly improve your project efficiency. Contact YG Machinery today to discover the perfect Excavator High Frequency Hydraulic Breaker solution for your needs.
