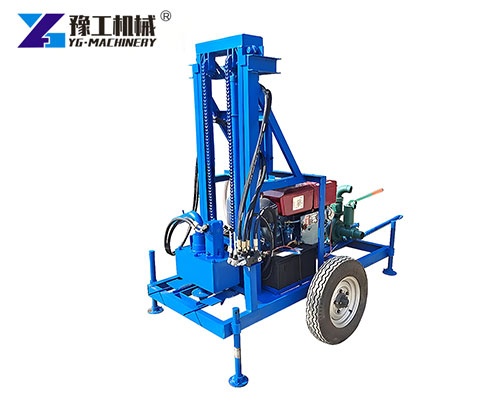

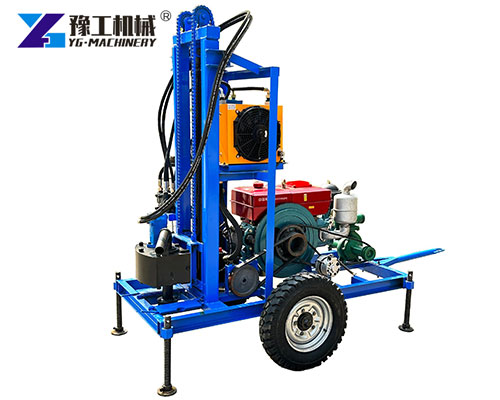

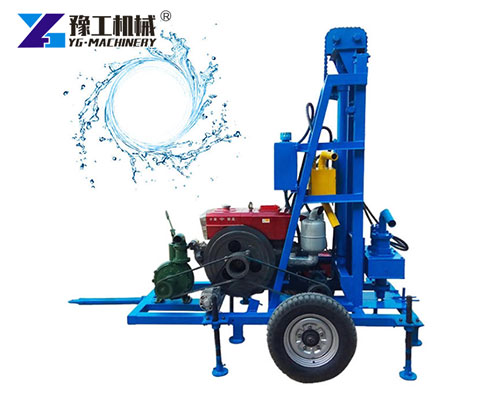

150M Depth Portable Water Well Drill Rig Machine

The 150M Depth Portable Water Well Drill Rig is a compact, high-efficiency drilling solution for small to medium-depth water well projects. Built to operate in diverse terrain and soil types, this rig is perfect for rural water access, farmland irrigation, or even light industrial use. Its portable structure allows for quick deployment, easy transport, and flexible drilling in locations inaccessible to larger rigs.

Whether you need to drill through clay, sand, gravel, or even soft rock formations, this machine provides stable performance with minimal environmental impact.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Core Features of 150M Depth Portable Water Well Drill Rig

This portable water well drill rig combines performance and portability. Its core design supports reliable drilling up to 150 meters while remaining lightweight and easy to maneuver.

Key features include:

• Drilling Depth Capacity: Capable of reaching up to 150 meters, ideal for household and agricultural wells.
• Flexible Power System: Diesel-powered engine or electric motor options to suit different locations and regulations.
• Efficient Rotary Mechanism: Smooth operation with strong torque output, reducing time spent on deep drilling.

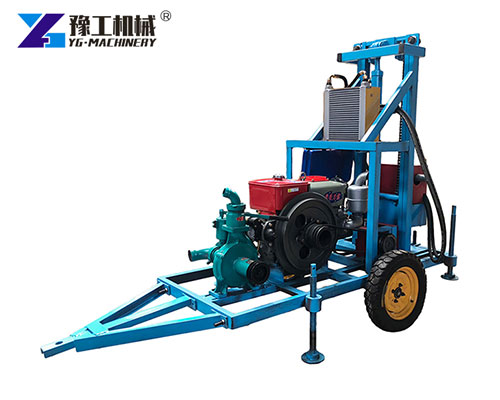

• Compact Chassis Design: Designed for off-road or tight-access projects, easily towed by pickup trucks or small tractors.

Technical Specifications of 150M Depth Water Well Drill Rig

This water well drill rig offers a balance between drilling power and portability, making it suitable for operators with or without heavy equipment experience.

Typical specifications include:

• Maximum Drilling Depth: 150 meters
• Drill Hole Diameter: 100mm – 250mm
• Drill Rod Diameter: 50mm – 60mm
• Engine Type: Diesel (4-cylinder, air-cooled) or optional electric version
• Power Output: 22 – 30kW
• Weight: Approximately 1000 – 1200kg
• Mobility: Two-wheel or four-wheel trailer base

These specifications can be adjusted based on your project needs and local terrain.

Advantages of Portable Water Well Drill Rig

Choosing a portable water well drill rig offers several practical benefits:

• Mobility: Lightweight and trailer-mounted, it is easy to tow and set up in rural or off-road areas.
• Cost-Efficiency: Reduces labor and logistics costs compared to truck-mounted or crawler-type rigs.
• Energy Saving: Fuel-efficient engine and minimal maintenance requirements.
• Operator-Friendly: Simple controls, ideal for small teams or community projects.

These benefits make it ideal for contractors, NGOs, or individuals drilling water wells in remote areas.

Applications of a 150M Water Well Drill Rig

This drill rig is suitable for a wide range of applications where mobility and depth are both essential.

Common use cases include:

• Rural Drinking Water Wells – In villages or farms with no municipal water supply.
• Agricultural Irrigation – For crops, orchards, or livestock watering.
• Rainwater Recharge Boreholes – To improve groundwater retention.
• Remote Mining Camps – To provide a water supply for temporary work sites.
• Construction Sites – Where reliable water sources are needed quickly.

Common Questions (FAQ)

1. Can this rig drill in rocky terrain?
Yes, with an optional DTH hammer and proper drill bits, it can handle most soft to medium-hard rock layers.

2. How long does it take to drill a 100-meter well?
On average, it takes 1–2 days, depending on soil conditions and team experience.

3. What power sources are available?
Diesel engines are standard, but electric or solar-powered versions are available on request.

4. Can one person operate the machine?
For safety and efficiency, it’s best operated by 2–3 people, though one-person operation is possible for experienced users.

5. Is it easy to transport?
Yes, the rig is mounted on a compact trailer frame and can be towed by a pickup or small utility vehicle.
