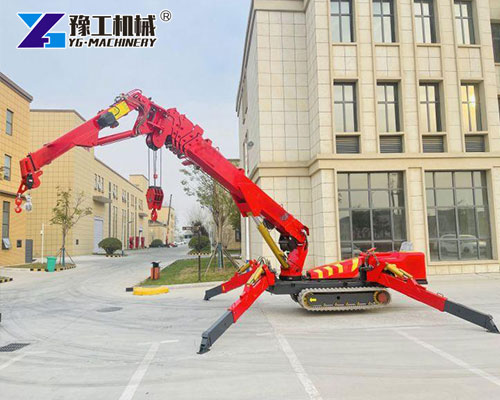

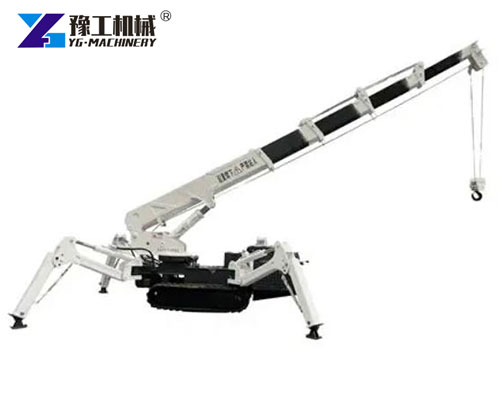

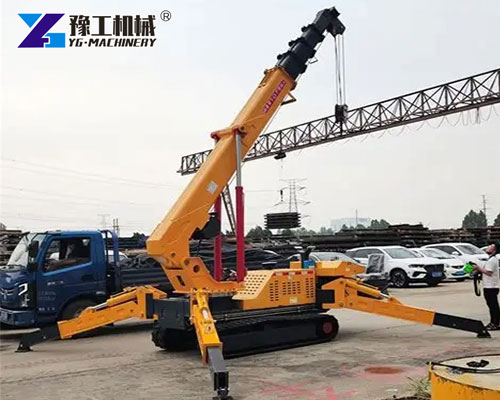

A 5 ton spider crane is a compact and strong lifting machine designed for medium-heavy lifting in tight or hard-to-reach spaces. It uses a crawler chassis and four extendable legs for better balance and flexibility.
This model has a larger capacity and longer reach than smaller mini cranes, but still fits in narrow work areas. It’s widely used for lifting heavy glass panels, steel beams, and tools on construction sites where big cranes cannot access.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Parameters of 5 Ton Spider Crane
| Model | YG-5 | |
| Specification | 5t | |
| Maximum working radius | 14m 0.5t | |
| Maximum above-ground head | 16.8m | |
| Winch device | Hook Speed | 12m/min(4 rope) |
| Rope diameter | 11mm 80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure |
| Boom Length/Time | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0 ~78 /13sec |
| Slew system | Slew Angle/Speed | 0-360 continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | |
| Grade Ability | (25 )36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 5000*1500*1900 |
| Total weight(kg) | 6200 | |
Real Applications Of Tracked Mini Crane
This tracked mini crane is designed to handle various tasks in construction, maintenance, and industrial applications. Some example use cases include:
- High-Rise Building Work: Lifts glass or steel to upper floors
- Roof Equipment Lifting: Installs HVAC units or generators on rooftops

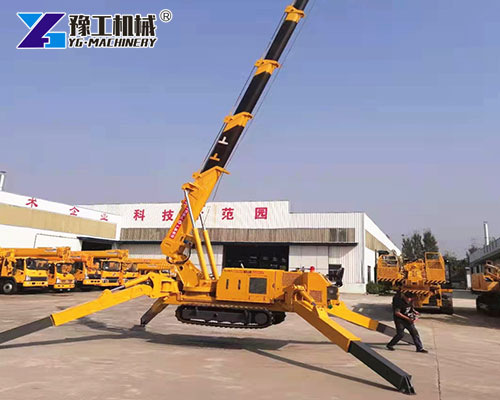

- Indoor Steel Assembly: Enters factories and plants to lift beams
- Urban Construction: Used where space is too small for tower cranes
- Temporary Events: Ideal for stage setup or equipment lifting at stadiums

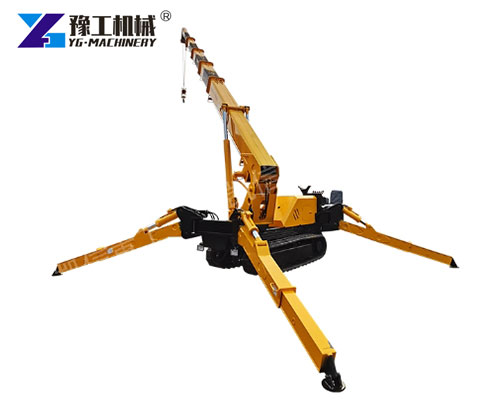

Its track base allows it to move on different surfaces easily while carrying heavy loads.
Benefits Of Using A Mobile Spider Crane
Compared to traditional cranes, the mobile spider crane brings several advantages:
- Works in both indoor and outdoor settings
- Easy to transport on trailers or trucks
- Requires less setup space
- Stronger lifting force in a small size
- Reduces labor with faster lifting cycles
It also helps reduce job site delays since it doesn’t require large supporting vehicles or lengthy assembly times.
Spider Crane For Sale – User Feedback & Popular Markets
Our spider crane for sale is popular in many industries. Here’s what some users say:
- Contractor in Germany: “This crane helped us install a steel canopy inside a parking garage. It saved time and space.”
- Glass Installer in France: “We use the 5-ton unit for curved glass facades. The suction cup and precise control are great.”
- Rooftop Crew in UAE: “We used it to lift 800 kg chillers to a 5-story roof. The crawler tracks handled the slope well.”
- Rental Company in the USA: “Customers love it. Low maintenance and good ROI. Easy to learn, even for new operators.”
The 5-ton model is a favorite for both rental companies and direct construction firms.
Pricing Guide for Buyers – Spider Crane Cost Factors
When evaluating a 5-ton spider crane, pricing varies based on configuration, features, and destination. Key factors that influence cost include:
- Model Specifications
Base Model: Standard lifting capacity with essential functions
Upgraded Models: Includes remote control, electric/hybrid power options
Specialized Attachments: Glass lifters, extended booms, or custom rigging
- Shipping & Logistics
Costs vary by region (export documentation, tariffs, and local compliance)
Bulk orders may qualify for reduced freight rates
- Additional Considerations

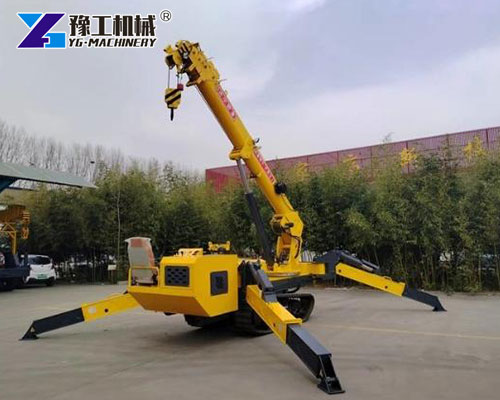

Power System: Electric, diesel, or dual-power options
Safety & Automation Features: Advanced controls, load monitoring
After-Sales Support: Warranty, training, and spare parts availability
For a competitive quote, contact us with your requirements—we provide factory-direct pricing with full export documentation.

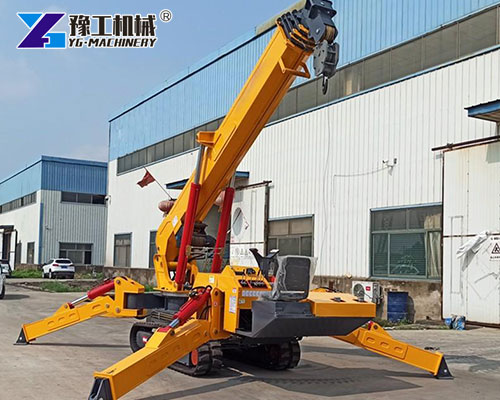

Electric Spider Crane Option Available
For indoor use or areas with emission rules, the electric spider crane version is ideal. It offers:
- Zero emissions
- Quiet operation
- No fuel storage required
- Suitable for indoor lifts in hospitals, malls, and airports
More customers prefer electric or hybrid systems for environmental and noise control benefits.
After-Sales Support For Crawler Spider Crane
To support our crawler spider crane users, we provide:
- 12-month warranty on main components
- 24/7 technical support via video or phone
- Training for setup and operation
- Spare parts are available in stock
- English manuals and maintenance guides
YG Machinery ensures every crane runs efficiently from day one.
WhatsApp/WeChat/Phone: 86 138 3715 9132
