An 8 ton spider crane is a large and powerful mini crane designed for lifting heavy loads in tight or complex areas. This model includes a man basket, which allows it to lift workers along with materials. That makes it useful for both material handling and aerial operations.
The spider lift crane uses four stabilizing legs, a crawler chassis, and a telescopic boom. It fits into hard-to-reach places while offering excellent lifting power and high reach.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Parameters of 8 Ton Spider Crane
| Model | YG-8 | |
| Specification | 8t | |
| Maximum working radius | 16.5m | |
| Maximum above-ground head | 18m | |
| Winch device | Hook Speed | 12m/min(4 rope) |
| Rope diameter | 11mm 80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure |
| Boom Length/Time | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0 ~78 /13sec |
| Slew system | Slew Angle/Speed | 0-360 continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | |
| Grade Ability | (25 )36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 5000*1600*2180 |
| Total weight(kg) | 7200 | |
Common Uses Of This Spider Crane
Although powerful, the spider crane still fits into narrow access zones. The man basket makes it ideal for aerial work. Main applications include:
- Tower Assembly: Lift workers and steel parts to height

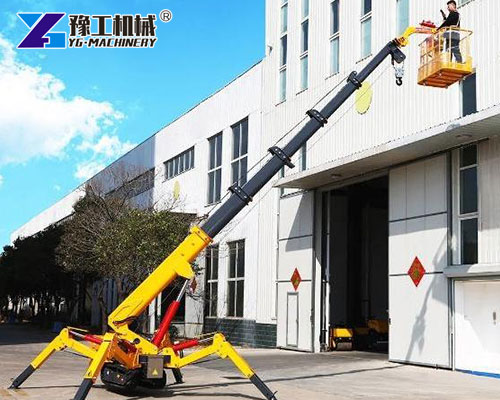

- High-Rise Facade Work: Used for glass or aluminum panel installation
- Roof Maintenance: Bring personnel and tools to high buildings

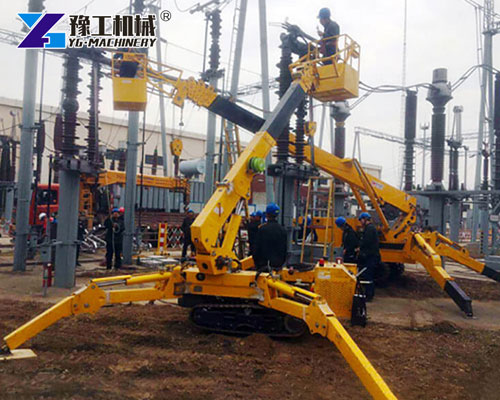

- Power Line & Signal Pole Work: Lift operators to electrical height safely
- Industrial Plant Support: Used in factories or tank yards
These tasks demand safety, power, and compact operation—exactly what this crane delivers.
Spider Crane For Sale – Configurable To Fit Your Project
This spider crane for sale supports various custom options to suit jobsite demands. Available configurations include:
- Power System:
- Diesel engine (standard)
- Electric motor (indoor use)
- Dual power (hybrid option)
- Man Basket Options:
- Fixed basket
- Rotating basket
- Foldable design for easy transport
- Control System:
- Manual operation
- Wireless remote control
- LCD control panel for precision
The crane can be built with cold-proof, dust-proof, or rust-resistant options for specific climates.
Client Feedback – 8 ton Crawler Crane for Sale
Our 8 ton crawler crane for sale has been used in multiple projects around the world. Here are examples:
- Qatar Stadium Project: Used to lift steel roofing beams and send workers to welding positions. The stability and remote control improved safety.
- South Korean Factory Expansion: Operators used the spider crane indoors to assemble overhead lines. Quiet electric power worked well inside the plant.
- Chile Solar Panel Farm: Lifted frames and personnel onto support poles across uneven land. Tracked base worked better than wheeled cranes.
- France Glass Company: Used the crane to install large panels on the building curves. Its precision made the task easier and faster.
Clients noted strong lifting force, safety for workers, and reliable daily use.
Spider Crane Pricing Guide – 8 Ton Model
The cost of an 8-ton spider crane reflects its enhanced capabilities and heavy-duty construction. Several key factors influence pricing:
Key Price Determinants
- Base Configuration
- Standard lifting capacity with essential features
- Rugged frame design for demanding applications
- Optional Attachments
- Man basket for aerial work platforms
- Extended boom options for greater reach
- Specialized lifting accessories
- Power System Options
- Diesel, electric, or hybrid power configurations
- Advanced energy-efficient models
- Customization Level
- Tailored solutions for specific industry needs
- Special paint/coating requirements
- Logistics Considerations
- Regional shipping costs and import regulations
- Local certification and compliance requirements
For precise 8-ton spider crane pricing, we provide:
✓ Detailed technical specifications
✓ Customized configuration advice
✓ Export-ready documentation support
Contact our sales team for a project-specific quotation based on your exact requirements.
Common Questions About The Mobile Spider Crane
For buyers of our mobile spider crane, here are some frequently asked questions:
- Q1: Can it be used indoors?
- Yes, the electric version is safe for indoor use with low noise and no emissions.
- Q2: Is the man basket removable?
- Yes, you can install or remove it depending on your needs.
- Q3: How is the crane transported?
- It fits into a 20-ft or 40-ft container and can be moved by trailer.
- Q4: What is the lead time?
- Usually 15–25 working days, depending on the order size and custom features.
- Q5: What support do you offer?
- One-year warranty, video training, and 24/7 tech support via WhatsApp or phone.
We help you choose the right setup and ensure you can use it with confidence.
