YG Machinery delivered a skid steer loader for sale to a customer in the United States.
The customer, a construction company, was attracted by the durability, efficiency, and advanced features of the YG loader.
WhatsApp/WeChat/Phone: 86 138 3715 9132

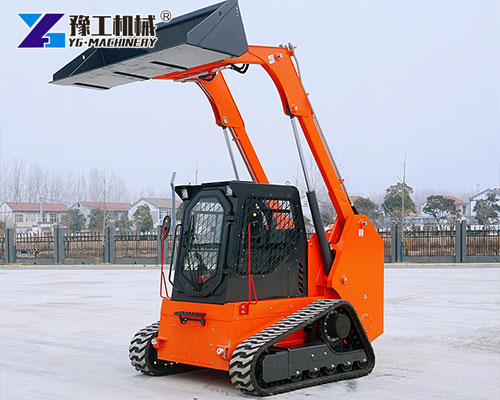

Skid Steer Track Loader Parameter
| Item | YG280 | YG380 | YG380C | |||
| With Rubber Track | With Chevron Engineering Tyre | With Chevron Engineering Tyre | ||||
| Metric | The U.S. | Metric | The U.S. | Metric | The U.S. | |
| Max working height(H3) | 2065mm | 81.3inch | 2143mm | 84.37inch | 2143mm | 84.37inch |
| Max pin height(H2) | 1803mm | 71inch | 1884mm | 74.17inch | 1884mm | 74.17inch |
| Max Dumping height(H1) | 1386mm | 54.6inch | 1488mm | 58.58inch | 1488mm | 58.58inch |
| Max Dumping distance(E) | 471mm | 18.5inch | 348mm | 13.7inch | 348mm | 13.7inch |
| Max Dumping Angle(a3) | 32° | 32° | 30° | 30° | 30° | 30° |
| Rollback of the bucket on the ground(a2) | 33° | 33° | 25° | 25° | 25° | 25° |
| Departure angle(a1) | 18° | 18° | 11° | 11° | 16° | 16° |
| Total height(H) | 1309mm | 51.5inch | 1233mm | 48.54inch | 1265mm | 50inch |
| Ground clearance(F) | 123mm | 4.8inch | 118mm | 4.65inch | 118mm | 4.65inch |
| Wheelbase(L1) | 690mm | 27.2inch | 636mm | 25.0inch | 636mm | 25.0inch |
| Overall length without bucket(L3) | 1778mm | 70inch | 1752mm | 69.0inch | 1980mm | 78inch |
| Total width(W) | 800mm | 31.5inch | 1160mm | 45.67inch | 1160mm | 45.67inch |
| Bucket width(B) | 820mm | 32.3inch | 980mm | 38.6inch | 980mm | 38.6inch |
| Total length with bucket(L) | 2210mm | 87inch | 2206mm | 86.9inch | 2430mm | 95.7inch |
| Turn radius forward turning(R) | 1237mm | 48.7inch | 1307mm | 51.5inch | 1307mm | 51.5inch |
Uses of Skid Steer Loaders
Skid Steer Loaders are extremely versatile machines with a wide range of applications. Here are some common uses:
- Construction Sites: They are used for moving materials such as gravel, sand, and bricks. They can also assist in digging foundations and backfilling trenches.
- Agriculture: In farms, skid steer loaders can be used for tasks like cleaning barns, moving hay bales, and spreading manure.
- Landscaping: For landscaping projects, these loaders can grade the land, plant trees, and remove debris.
- Snow Removal: With the appropriate attachments, skid steer loaders can quickly clear snow from driveways, parking lots, and sidewalks during winter.
Skid Steer Loader Operation Guide
Operating a skid steer loader requires proper training and knowledge. Here are the basic steps:
- Pre-operation Check: Inspect the loader for any visible damage, check the fluid levels (such as fuel, oil, and hydraulic fluid), and ensure that all safety features are working properly.
- Enter the Cab: Open the door carefully, sit in the seat, and fasten the seatbelt. Familiarize yourself with the controls, including the joysticks for steering and operating attachments.
- Start the Engine: Turn the key to start the engine. Let it warm up for a few minutes before starting any work.
- Control the Movement: Use the joysticks to move the loader forward, backward, and turn. The left joystick usually controls the left-hand wheels, and the right joystick controls the right-hand wheels. To turn, move one joystick forward and the other backward.
- Attach and Detach Attachments: Use the hydraulic controls to attach or detach different skid steer loader attachments.
- Post-operation: After finishing the work, park the loader on a flat surface, turn off the engine, and engage the parking brake.
Types of Skid Steer Loader Attachments
Skid steer loader attachments greatly enhance the functionality of the machine. Here are some common types:
- Bucket: The most basic attachment, used for moving loose materials like dirt, sand, and gravel.
- Grapple Bucket: Equipped with claw-like tines to securely handle logs, debris, or bulky materials like scrap metal.
- Forks: Ideal for lifting and moving pallets, crates, and other heavy objects.
- Hydraulic Breaker: Perfect for demolition, breaking concrete, rocks, or frozen ground with high-impact force.
- Auger: Used for drilling holes in the ground, which is useful for fence post installation or tree planting.
- Trencher: Cuts precise trenches for utilities, irrigation lines, or drainage systems in soil or asphalt.
- Brush Cutter: Designed to clear thick vegetation, such as bushes and small trees.

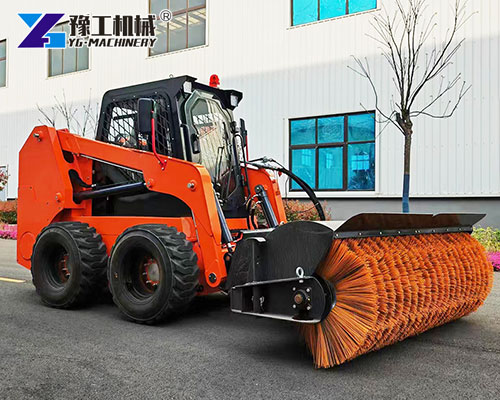

- Street Sweeper: Cleans roads, parking lots, or construction sites with rotating brushes and debris collection systems.
- Snow Blower: A must – have attachment in snowy regions, it can quickly blow snow away from large areas.
Skid Steer Loader Brand— YG Machinery
YG Machinery is a well-known brand in the skid steer loader industry. Their skid steer loaders are known for several reasons:
- Quality and Durability: YG Machinery uses high – quality materials and advanced manufacturing processes to ensure that their loaders can withstand tough working conditions.
- Innovation: They are constantly innovating and improving their products. For example, they have introduced electric mini skid steer loader models, which are more environmentally friendly and cost-effective in the long run.
- Customer Service: YG Machinery provides excellent customer service, including after-sales support, training, and maintenance services.
- Variety: They offer a wide range of skid steer loaders, including walk-behind skid steer loader models, which are more suitable for small-scale projects and confined spaces.
