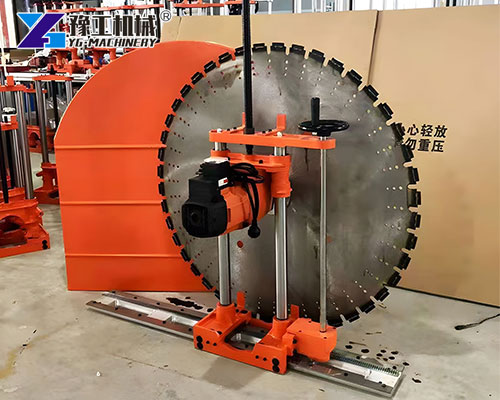

Recently, an Estonian customer purchased a wall saw machine for sale from YG Machinery. The Wall Saw Machine is a high-performance tool used for cutting reinforced concrete walls, slabs, and structures with extreme precision. It is typically powered by hydraulic or electric systems and operates with a circular diamond blade mounted on a track. Designed for professional contractors, this machine delivers clean, accurate cuts with minimal vibration or dust, making it ideal for structural modifications, demolition, and renovation tasks.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Customer Background
An Estonian construction company specializing in concrete cutting and demolition contacted us, expressing a keen interest in our Hydraulic Wall Saw models. They were impressed by the reported power, precision, and reliability of our machines, particularly for handling heavily reinforced concrete.
Their specific needs included creating precise openings for new installations in existing concrete structures and performing controlled demolition in urban environments where minimizing vibration and noise is crucial.
The client emphasized the importance of a robust and durable machine capable of consistent performance under demanding conditions, which aligns perfectly with the design and capabilities of YG’s Wall Saw Machine range.
Finally, under the recommendation of our account manager, they purchased a hydraulic wall saw machine, and the customer was very satisfied with our product.

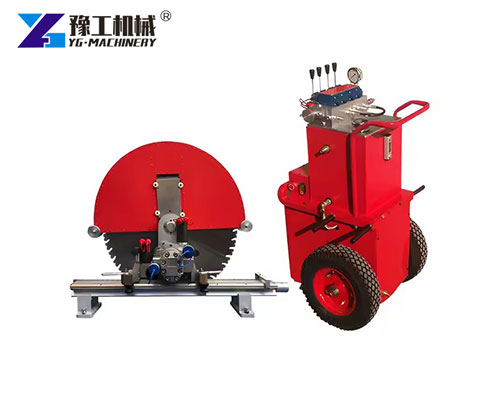

Parameters of Hydraulic Concrete Wall Saw Machine for Sale
| Hydraulic Oil Pump | Model | YG 600 | YG 700 |
| Max. power | 25KW | 30KW | |
| Motor cooling method | Air cooling | water cooling | |
| Rated voltage | 380V 50HZ | 380V-420V 50HZ-60HZ | |
| Pressure stages | 3 | 3 | |
| Max.. operating pressure | 200bar/20Mpa | 210bar/21Mpa | |
| Oil flow rate | 30-80L/min | 40-100L/min | |
| Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm | |
| Weight | 220kg | 140kg | |
| WallSaw | Saw blade diameter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm | |
| Max.. working pressure | 180bar/18Mpa | 200bar/20Mpa | |
| Max.. oil flow rate | 100l/min | 100l/min | |
| Gearing | Gear | Gear | |
| Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm | |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm | |
| Weight | 38kg | 39kg |

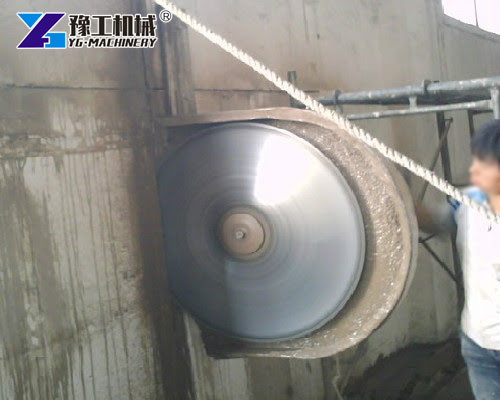

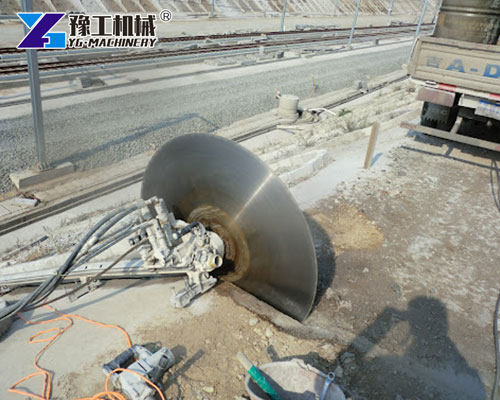

Applications Of the Wall Saw Machine In Construction
The Wall Saw Machine is essential for projects that require precise and efficient concrete cutting. Its advanced design allows it to perform in a variety of demanding environments:
- Structural Openings: Creating doorways, windows, and ventilation spaces in concrete walls.
- Demolition Work: Removing walls and slabs in controlled sections during building renovations.
- Bridge and Tunnel Projects: Cutting large reinforced concrete elements safely and effectively.
- Industrial Facilities: Modifying concrete platforms, foundations, and walls in plants or warehouses.
- Marine Structures: Used for cutting underwater concrete with specific machine configurations.
Features Of the Wall Saw Machine
The design and functionality of YG’s Wall Saw Machine provide optimal performance for professional contractors. Some key features include:
- High Cutting Accuracy: Cuts up to 730mm deep, depending on the blade size.
- Track System Mounting: Ensures straight-line cuts with minimal deviation.
- Adjustable Blade Speed: Adaptable to different concrete types and thicknesses.
- Safety Features: Emergency stop and overload protection built in.
- Remote Operation: Enhances safety and allows easy control from a distance.
Advantages of Choosing a YG Wall Saw Machine
- High Precision: Delivers accurate and clean cuts, reducing the need for rework.
- Increased Efficiency: Powerful hydraulic drive allows for faster cutting speeds, saving time and labor costs.
- Enhanced Safety: Remote control operation keeps the operator at a safe distance from the cutting process.
- Versatility: Suitable for a wide range of concrete cutting applications and depths.
- Durability and Reliability: Built with high-quality components for long-lasting performance in demanding environments.
- Reduced Noise and Vibration: Hydraulic systems typically generate less noise and vibration compared to other cutting methods, making them suitable for urban environments.
Trusted Wall Saw Machine Manufacturer
YG has established itself as a reliable supplier of construction and demolition equipment worldwide. By choosing YG, you are investing in a high-performance Wall Saw Machine that will enhance the precision, efficiency, and safety of your concrete cutting operations. Contact us today to learn more about our range of wall saws and how they can benefit your projects.
