The Cherry Picker Boom Lift is a lightweight and mobile aerial platform designed for safe access to elevated areas. The name originates from its original use in orchards, but today, it’s used across construction, maintenance, landscaping, and more.

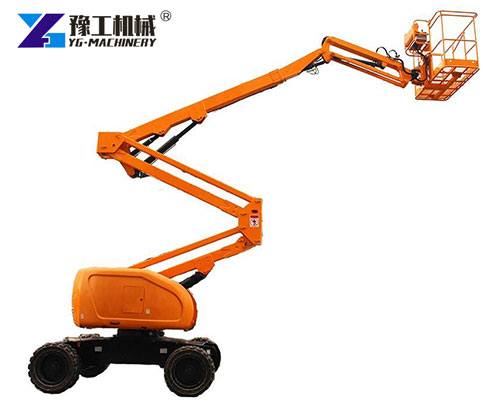

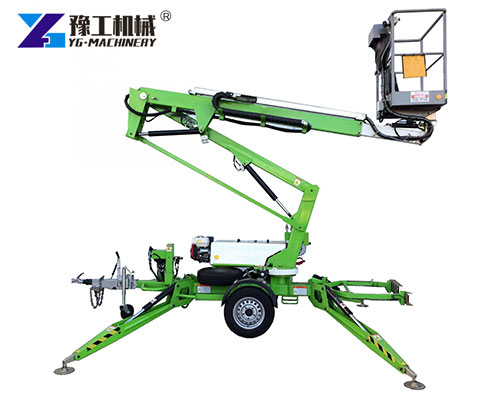

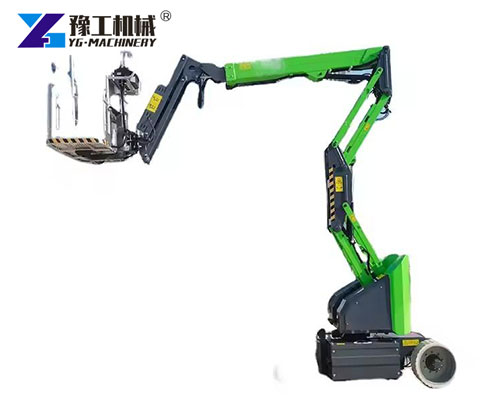

It comes in two main styles: Towable Cherry Picker, which can be hitched and moved by a vehicle, and Self-Propelled Cherry Picker, which is powered and moves independently. Both models offer compact design, quiet operation, and vertical reach from 10 to 20 meters.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Cherry Picker Boom Lift Parameters
| model | YGTZ-12 | YGTZ-14 | YGTZ-16 |
| maximum working height | 13.72 m | 15.6m | 16.6m |
| Maximum platform height | 11.72 m | 13.6m | 14.6m |
| Maximum working radius | 6.45 m | 7.49m | 8.52m |
| Standard load | 230KG | 230KG | 230KG |
| Length (folded state) | 5.74m | 6.73m | 7.7m |
| width | 1.76m | 1.76m | 2.28m |
| Height (folded state) | 1.75m | 2.13m | 2.18m |
| Shaft distance | 2m | 2m | 2.02m |
| Ground clearance | 0.2m | 0.23m | 0.3m |
| Platform size | 1.50*0.76*1.08m | 1.52*0.77*1.1m | 1.52*0.78*1.1m |
| inner turning radius | 0.8m | 0.8m | 1.85m |
| outer turning radius | 3.5m | 3.5m | 4.55m |
| Walking speed (folded state) | 5.1km/h | 5.1km/h | 5.1km/h |
| Driving speed (raised state) | 0.8km/h | 0.8km/h | 0.8km/h |
| Gradeability | 30% | 30% | 30% |
| tire | 250*15 | 250*15 | 250*15 |
| Swing speed | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm |
| Turntable rotation | 360° | 360° | 360° |
| Platform leveling | Automatic | Automatic | Automatic |
| Platform rotation | ±80° | ±80° | ±80° |
| battery | 420Ah, 6V*8 | 420Ah, 6V*8 | 420Ah, 6V*8 |
| control voltage | 12V | 12V | 12V |
| weight | 6300kg | 7000kg | 7000kg |
Key Features of the Cherry Picker Lift
The cherry picker lift stands out due to its versatility and user-friendly setup. Key characteristics include:
- Lightweight structure for easier towing or movement
- Hydraulic lifting arm with precise height control
- 360-degree rotation on some models
- Electric or diesel power options
- Platform load capacity of 200–250 kg
- Compact stabilizers for added safety on uneven ground
Workers particularly favor this tool for indoor building work, tree care, and low-rise construction because of its convenience and compactness.
Benefits of Cherry Picker Lifts
Operators and rental companies value cherry pickers for their:
- Easy transport with towable designs
- Quick setup requiring minimal training
- Flexible application in both indoor and outdoor settings
- Lower fuel/electricity usage compared to heavy-duty boom lifts
- Affordable cost for small to medium elevation tasks
Its simplicity makes it an ideal solution for tasks that don’t require high lifting capacities but demand access and mobility.
Typical Use Cases
Towable and self-propelled cherry pickers are commonly seen in:
- Tree pruning and trimming in gardens or public parks
- Indoor light or sign maintenance
- Telecom and utility pole access
- Building facade cleaning or painting
- Warehouse inventory work
- Outdoor event setup
Self-propelled cherry pickers serve commercial buildings well, whereas towable models better suit mobile contractors and landscapers.
How a Cherry Picker Boom Lift Works
A Cherry Picker Boom Lift operates using hydraulic pressure, lifting the arm smoothly to the desired height. Controls are located on the platform and base, allowing one-person operation.
The self-propelled version includes a drive system controlled from the operator platform, enabling precise movements in tight areas. In contrast, towable models feature lighter weight and vehicle-powered mobility, which simplifies storage and repositioning.

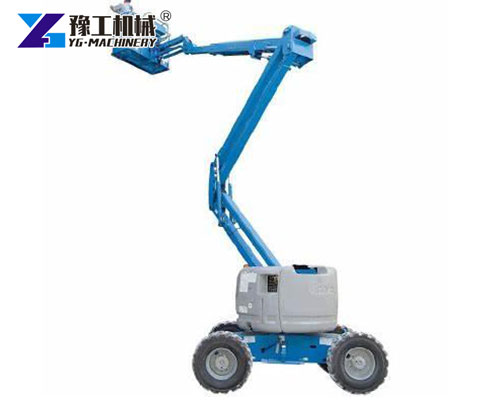

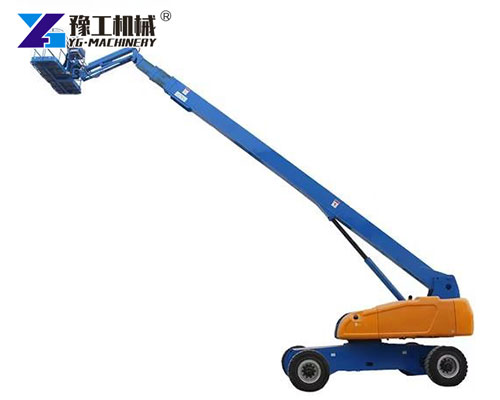

Some cherry pickers include telescopic booms, while others use an articulating arm design, depending on the model’s purpose and reach.
Differences Between Cherry Picker and Boom Lift
| Feature | Cherry Picker Boom Lift | Standard Boom Lift |
|---|---|---|
| Mobility | Towable or Self-Propelled | Truck-Mounted or Crawler |
| Size | Smaller, compact | Larger and bulkier |
| Application | Maintenance, light tree work | Heavy-duty construction |
| Power Source | Often electric | Usually diesel or hybrid |
| Weight | Light, easy to tow | Heavier, needs a transport vehicle |
While both reach heights safely, cherry pickers are designed with portability and simplicity in mind.
Safety Tips for Use
To ensure the smooth and safe operation of a cherry picker lift, follow these precautions:
- Secure outriggers before elevating the boom.
- Avoid using on steep or soft ground unless rated for it.
- Do not exceed the platform load limit.
- Wear a harness for added fall protection.
- Ensure batteries or fuel are full before use, especially for self-propelled models.
- Only trained operators should use the platform.
Regular maintenance and inspection of hydraulics and safety systems are essential for daily operation.
Why Choose YG Machinery?
YG Machinery offers a complete range of cherry picker lifts, including towable models and self-propelled boom platforms, known for:
- Durable steel structure
- Precision hydraulic control
- Wide reach options from 10m to 20m
- Export-ready models for North America and Europe
- Fast after-sales support
Our team supports OEM customization and can match cherry picker lifts to your specific use case or industry requirements.
FAQ – Cherry Picker Boom Lift
- 1. What’s the difference between a towable and a self-propelled cherry picker?
Towable versions are moved using a vehicle, while self-propelled lifts can drive themselves. - 2. Can cherry pickers be used indoors?
Yes, especially electric-powered models, which produce low noise and no emissions. - 3. Are cherry pickers safe to use on uneven ground?
They include hydraulic stabilizers, but extreme inclines should be avoided. - 4. How often do they need maintenance?
Basic checks should be done daily, with full inspections monthly. - 5. What kind of license or training is needed?
Operators must receive safety training, especially when working at height.
