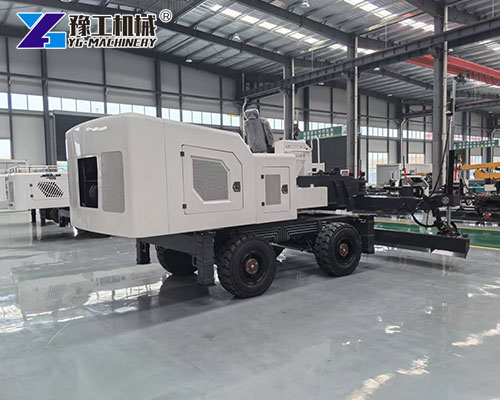

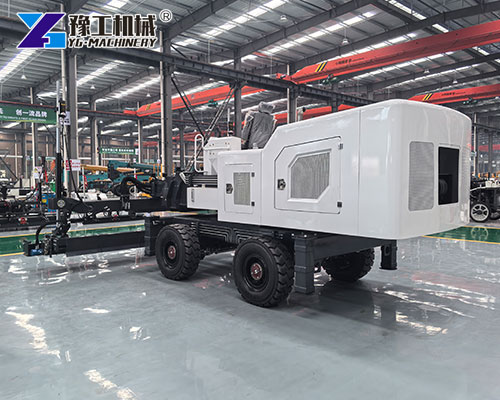

A Concrete Laser Screed is a high-precision concrete floor leveling machine used for large-scale flat floor construction. It uses laser technology to automatically control the height and slope of the screed head, ensuring the concrete surface is smooth, flat, and uniform. This makes it a perfect tool for modern construction projects that demand efficiency and precision.
WhatsApp/WeChat/Phone: 86 138 3715 9132

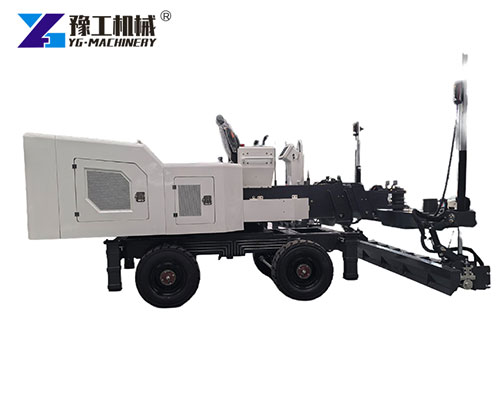

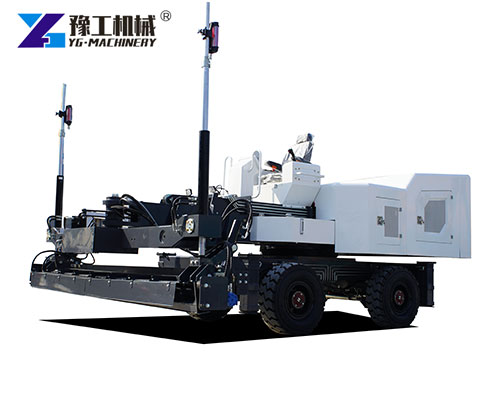

Concrete Laser Screed Machine Parameter
| Model | YG-ZP30 | |
| Powertrain Configuration | Engine Model | Yanmar 4TNV94L |
| Engine Type | Diesel, four cylinder | |
| Engine power | 35.5KW/48hp | |
| Fuel capacity | 100L | |
| Hydraulic oil volume | 150L | |
| Laser System | Laser transmitter | Swiss Leica/American Trimble transmitter (optional) |
| Laser Receiver | Swiss Leica/American Trimble receiver (optional) | |
| Laser system control effect | Plane, slope, double slope (3D) | |
| Laser system control method | Microcomputer laser scanning | |
| Leveling system | Paving method | Hydraulic Cage Paving |
| Auger power | Hydraulic motor | |
| Auger Advantages | Flip up and down for easy cleaning and left-right switching | |
| Vibration mode/exciting force | Hydraulic vibration/2000N | |
| Arm length | 6000mm | |
| Width of vibration plate | 3100mm | |
| Leveling thickness | 100-450mm | |
| Travel system | Walking speed | 4-8km/h 24m2/min |
| Travel drive type | Hydraulic four-wheel drive | |
| Outriggers | One-touch four-leg self-leveling | |
| Steering method | Front wheel + four wheels + crab walk | |
| Travel tires | Solid anti-skid and puncture-proof tires | |
| Cleaning machine flow | 15L/min | |
| Dimensions and weight | Body size | 5350×3650×2040mm |
| Weight | 5500Kg |
Core Technology Highlights of Concrete Laser Screed
The Concrete Laser Screed integrates several advanced technologies to ensure quality and consistency on every job site.
- Smart Height Control

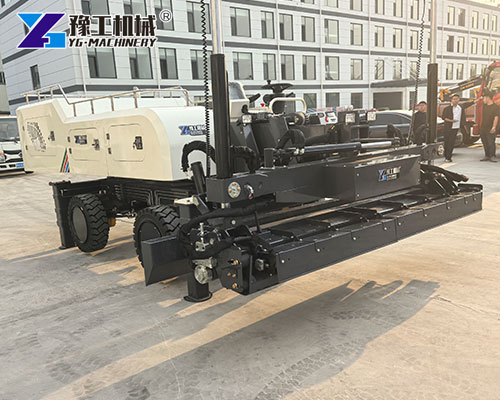

Automatically adjusts the screed head based on laser signals in real-time, maintaining perfect leveling even on uneven base layers. - Dual Balance System
Combines mechanical and laser systems to double-check leveling accuracy and reduce errors. - Remote Monitoring with 4G IoT
Construction data can be transmitted in real-time via the internet. Site managers can monitor work progress from any location. - Wear-Resistant Screed Blade
The screed blade uses tungsten carbide alloy, which is 3 times more durable than normal steel. It performs longer in tough environments.
Laser Screed Machine Price
The laser screed machine price is influenced by the quality of its core parts. Here’s a breakdown of the most important ones:
1. Laser Positioning System
- Laser Transmitter Accuracy: ±0.5mm over 30 meters
- Laser Receiver Sensitivity: Can adjust at 0.1mm scale for ultra-fine leveling
- Anti-Interference: Works accurately even under bright sunlight or jobsite lighting

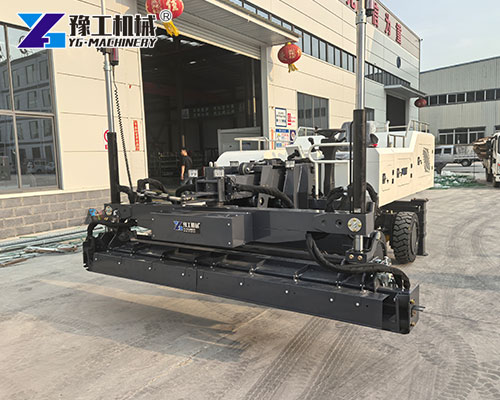

2. Screeding Mechanism
- Vibration Frequency: Adjustable from 3000 to 5000 times/min for different concrete mixes
- Screed Head Tilt: ±15° automatic adjustment for sloped surfaces
- Frame Material: Aerospace-grade aluminum alloy ensures strength and low weight
Applications of Concrete Floor Leveling Machine
This concrete floor leveling machine is widely used in industries that require precise flat surfaces:
- Data Centers: Prepares the base for anti-static flooring
- Cold Chain Warehouses: Operates continuously at -25℃
- Airport Runways: Meets FAA flatness and slope standards
- Smart Warehouses: Ensures AGV robot paths are completely smooth
Please read the case:
Concrete Laser Screed for Sale in Dubai
Concrete Screeds for Sale at a Good Price to New Zealand
Efficiency Comparison: Traditional vs. Laser Screed
| Criteria | Traditional Leveling | Laser Screed |
|---|---|---|
| Work Efficiency | 300㎡ / day | 3000㎡ / day |
| Labor Requirement | 8 workers per team | 2 workers |
| Maintenance Needs | Frequent repair | Almost no maintenance |
The laser screed improves both surface quality and productivity, reducing manual labor costs significantly.
Concrete Laser Screed for Sale: Buying Guide
Choosing the right concrete laser screed for sale depends on your project type and job site needs.
- By Project Scale:
- Small projects (e.g. small warehouses): Entry-level boom screed
- Medium projects: Self-propelled screed with mid-range capacity
- Large-scale projects: Ride-on screed with high output
- By Surface Requirements:
- Standard flat surfaces: Basic model
- Complex or sloped surfaces: Multi-angle adjustable screed head

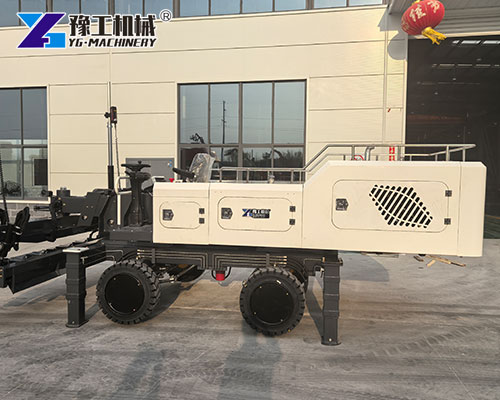

YG Laser Screed After-Sales Services
YG offers reliable after-sales support to ensure smooth operation after purchase.
- Remote troubleshooting via 4G cloud system
- Free training videos and operation guides
- Fast spare parts supply within 5 working days
- 12-month warranty with lifetime technical support
Common Questions About Concrete Laser Screed
Q: What’s the operating temperature range of the machine?
A: Most models can run from -25℃ to +45℃.
Q: Is one person enough to operate it?
A: Yes, many models are designed for one-operator use with touch screen or joystick controls.
Q: How often does the blade need replacement?
A: Tungsten alloy blades last 3x longer than standard, depending on use, often 6–12 months.
Our laser leveling machines come in different types, including: Walk-Behind Concrete Laser Screed, Ride-On Laser Leveling Machine, Telescopic Boom Laser Screed, Remote Control Concrete Laser Screed. You can choose according to your need, and we will give you a free quote!
