What Is A Dredging Robot?
A Dredging Robot is a smart machine used to clean sludge, mud, and silt underwater. It works without people going into dangerous places. It uses motors, pumps, and remote control to suck and remove mud. Many factories, cities, and construction sites use it to keep water clean and safe.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Dredging Robot Parameter
| Robot body | Robot size: 1650mm×900mm×600mm Drainage width: 900mm Travel speed: 3-17M/min | |
| 4-inch underwater slurry pump | Used for underwater pumping of sludge Pumpable particle diameter: 40mm (can be changed according to customer needs) Lift: 25 meters (horizontal conveying distance 100-150 meters) | 1 |
| Underwater hydraulic power source | Waterproof hydraulic system | 1 |
| Robot main control cabin (underwater) | Used to control all actions of the robot, including the start and stop of underwater hydraulics and the lighting system. | 1 |
| Underwater lighting system | 2 LED lights | 1 |
| Underwater camera system | Equipped with 1 underwater camera | Optional |
| Cable winding system | Electric drive (or manual), speed 0-10 r/min | 1 |
| Underwater pipeline | 50 meters | 1 |
| Ground electric control system | ||
| Main electric control cabinet | Used to power various ground systems. | 1 |
| Main control console | Robot ground main control system, used to control the work of underwater robots | 1 |
| Attachments | Sewage pipe, 20 kg pressure resistance, steel frame, 50 meters long. | Optional |
| Work efficiency | 200 cubic meters per hour | |
Product Features of Robotic Sludge Removal
The Dredging Robot has many good features that make it popular:
- Remote control keeps workers safe
- Can work in deep water or narrow places
- Powerful pumps remove sludge fast
- Can be used in clean water or places with oil, chemicals, or sand
- Easy to move and set up
These features make Robotic Sludge Removal fast, safe, and cheap.

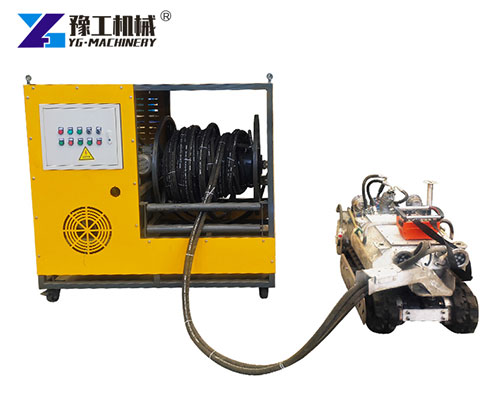

Underwater Dredging Robot Components
A Dredging Robot has several main parts:
- Hydraulic Pump Station – gives power to the machine
- Robot Body – goes under water and sucks mud
- Oil Hoses – send oil to the robot’s motor
- Mud Pipe – sends mud from the water to a storage place
YG Machinery can also change the robot’s motor to a special explosion-proof motor. This is good for places like:
- Chemical plants
- Oil refineries
- Coal chemical factories
In these places, safety is very important, so an explosion-proof motor makes the Underwater Dredging Robot much safer.
Submersible Dredging Robot Types
YG Machinery makes different types of Submersible Dredging Robots for many jobs:
- Pipeline Dredging Robot – goes into big pipes and removes sludge
- River and Lake Dredging Robot – cleans rivers, lakes, and ponds
- Trench and Sewer Dredging Robot – used in narrow spaces like drains or sewers
Each type of robot has a different size, power, and hose length to match different jobs.
Applications of Underwater Dredging Robot
The Dredging Robot is useful in many places, for example:
- River cleaning to stop flooding
- Lake cleaning to keep the water clear
- Sewage treatment plants
- Factories with dirty water
- Oil and chemical plants for cleaning tanks or ponds
- Ports or harbors for removing mud
As a Silt Cleaning Machine, it helps cities and factories work safely and meet environmental rules.
Competitive Advantages Of Dredging Robot
Compared to old ways of cleaning sludge, the Dredging Robot has many advantages:
- No need for people to go into dirty water
- Faster than manual cleaning
- Safer in dangerous places
- Saves money on labor costs
- Easy to use and control
These benefits make the Dredging Robot a good choice for many industries.
Dredging Robot Manufacturer: YG Machinery
YG Machinery is a top maker of the Dredging Robot. They build strong and smart machines that work in hard jobs. YG offers many services:
- Help choose the right robot
- Give training to use the robot
- Fast delivery
- Spare parts and repairs
If you want a good Dredging Robot, YG Machinery is a brand you can trust.
