In quarrying, mining, and construction, breaking large rocks safely and efficiently is a big challenge. The hydraulic rock splitter machine provides a clean and controlled way to split stone and concrete without blasting. Compared with diesel models, the electric version is especially popular in urban areas because it is quiet, eco-friendly, and cost-saving.
What Is A Hydraulic Rock Splitter Machine?
A hydraulic rock splitter machine works by inserting a wedge into drilled holes and applying high-pressure hydraulic force to split stone. The electric model uses a motor as the power source, which ensures a stable and reliable performance. Unlike traditional blasting, it is safe, precise, and can be used even in crowded construction areas.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Parameters of Electric Hydraulic Rock Splitter Machine
Model
YG-250
YG-350
YG-450
Wedge Length (mm)
250mm
350mm
450mm
Piston Stroke (mm)
90/220mm
90/220mm
90/220mm
Drilling Depth (mm)
>500mm
>700mm
>900mm
Punching Diameter (mm)
42mm
46mm
46mm
Crack Width (mm)
10-20mm
10-20mm
10-20mm
Cleavage Time (s)
10-15/s
10-15/s
10-15/s
Splitting Force (T)
500t
800t
800t
Weight (kg)
240kg
250kg
260kg
These values may vary by model, but all ensure high efficiency and safe rock breaking.
Many contractors choose the electric type of hydraulic rock splitter machine because it provides:
Environmental Protection: Zero exhaust gas, meeting strict green regulations.
Energy Saving: Electricity is cheaper and more stable than diesel fuel.
Low Noise: Can be used near hospitals, schools, or residential areas.
Easy Operation: Simple control, low vibration, and safe handling.
Customer Case
In a European tunnel expansion project, strict environmental rules banned blasting and high-emission machines. The contractor used an electric rock splitter for the job. It allowed continuous operation in a low-noise environment, reduced project costs, and met all safety standards. Workers reported that the machine was easy to maintain and delivered reliable splitting power.
Why Buy From Us
Choosing YG’s hydraulic rock splitter machine means you get:
Factory Direct Price: No middleman, better value.
Certified Quality: CE, ISO, and other international certifications.
Fast Delivery: Global shipping with professional logistics support.
After-Sales Service: Training, spare parts, and technical support worldwide.

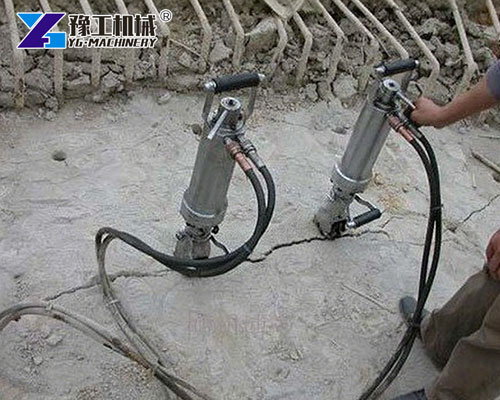

Concrete splitter machine for construction

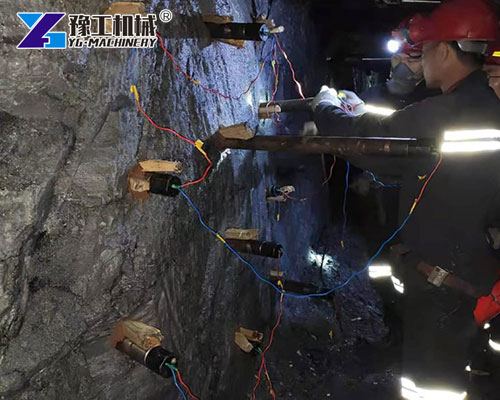

Rock splitter machine in tunnel excavation
Contact us today for a detailed quotation and video of the hydraulic rock splitter machine. We provide OEM/ODM customization, support large orders, and deliver worldwide. Start your quarry or construction project with reliable YG equipment now.
