The electric wall saw is a specialized cutting machine designed to cut concrete, reinforced concrete, masonry, and stone structures. It uses a diamond-tipped circular blade mounted on a track system to make extremely straight, precise cuts. Unlike hydraulic wall saws, an electric wall saw is powered by a high-voltage electric motor, making it ideal for indoor work, renovation projects, and situations where emission-free operation is crucial. WhatsApp/WeChat/Phone +86 138 3715 9132
Parameters of Electric Wall Saw for Sale
| Electric Type Wall Saw Machine | |||
| Model | YG-800 | YG-1000 | YG-1200 |
| Type | Manual type / Semi-automatic type / Full automatic type (every model has three types) | ||
| Cutting depth | 320mm | 420mm | 520mm |
| Saw blade diameter | 800mm | 1000mm | 1200mm |
| Power/Voltage | 7280w/220v | 7580w/220v | 7880w/220v |
| Rotary speed | 400r/min | 380r/min | 350r/min |
| Machine weight | 35kg | 38kg | 45kg |
| Machine size | 55*55*78cm | 55*55*88cm | 55*55*98cm |
| Remark: Manual type means to put the saw blade by hand and walk manually on the track. Semi-automatic means putting the saw blade by hand, but self-propelled walking on a track. Full automatic means putting the saw blade automatically and walking on a track automatically. | |||
Features of Electric Concrete Wall Saws
- Emission-Free Operation
Suitable for indoor use without worrying about exhaust fumes. - High Cutting Precision
Track-guided blade ensures clean, straight cuts with very little overcutting. - Variable Speed and Power Control
Operators can adjust blade RPM and cutting force to match material conditions. - Remote-Controlled Operation
Enhances safety by allowing operators to manage the machine from a safe distance. - Diamond Blade Compatibility
Enables cutting through thick, heavily reinforced concrete and other hard materials. - Lightweight and Compact Motor Units
Easier handling and setup compared to bulkier hydraulic systems. - Energy Efficiency
Newer models are designed with inverter technology to save electricity and deliver smoother cutting performance.
How The Electric Concrete Wall Saw Works
The Electric Concrete Wall Saw operates by using an electric motor to rotate a diamond-tipped blade mounted on a track system. This allows for controlled, linear cuts through vertical and horizontal surfaces. Here’s how it works:
- Power Transmission: Electricity drives the motor, transferring energy to the cutting blade.
- Blade Rotation: The blade spins at high speed to efficiently slice through concrete and reinforcement materials.
- Track Guidance: The saw moves along a mounted track, ensuring a straight and precise cut without manual handling errors.
- Cooling System: Water sprays onto the blade during cutting to minimize heat and dust, extending blade life and improving cut quality.
Thanks to its consistent speed and power, the electric wall saw is ideal for projects requiring precision and minimal structural disturbance.

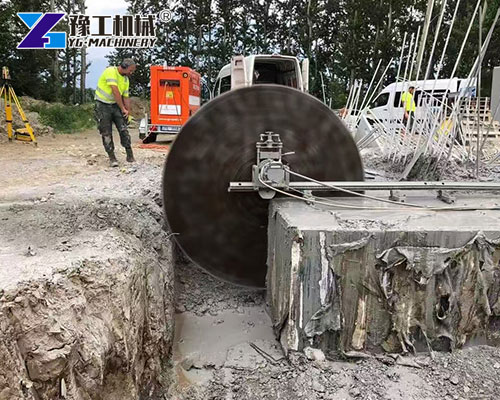

Application of The Electric Wall Cutting Saws
The Electric Wall Cutting Saw is versatile and suitable for various industrial, commercial, and residential applications. Typical uses include:
- Building Renovations: Cutting new doorways, windows, and staircases in concrete walls.
- Bridge Construction: Slicing through thick concrete sections for expansion or reinforcement.
- Demolition Projects: Controlled removal of concrete structures with minimal vibration and dust.
- Infrastructure Projects: Utility installation, such as cables, pipes, and ventilation ducts.
Because of its electric power source, this saw is especially favored in enclosed environments where ventilation and noise control are critical.
Factors Affecting The Electric Wall Cutting Saw Price
Model and Specifications
Different models of Electric Wall Saw come with varying specifications, such as motor power, cutting capacity, and additional features. Higher-end models with more powerful motors and advanced features will generally have a higher price tag. For example, a model with a larger cutting depth capacity and a more sophisticated control system will cost more than a basic model.
Quality of Components
The quality of the components used in the wall saw significantly impacts its price. Saws made with high-quality materials, such as durable diamond-tipped blades and robust electric motors, tend to be more expensive. YG Machinery’s commitment to using top-notch components ensures that their Wall Saw models offer superior performance and longevity, which is reflected in their pricing.
Brand Reputation
Established brands like YG Machinery often command higher prices due to their reputation for quality, reliability, and excellent customer service. Customers are willing to pay a premium for an electric wall-cutting saw from a trusted brand, knowing that they will receive a product that meets their expectations and is backed by a reliable support system.
Additional Accessories
The inclusion of additional accessories, such as dust collection systems, spare blades, and mounting brackets, can also affect the price of the Wall Saw. Saws that come with a comprehensive set of accessories will generally be more expensive than those sold as basic units.
Electric Wall Saw Manufacturer – YG Machinery
Our Electric Wall Saw models are designed and manufactured using the latest technology and strict quality control processes. The company’s team of experts continuously researches and develops new features and improvements to ensure that their products stay ahead of the competition. YG also offers comprehensive after-sales service, including technical support, maintenance, and the supply of genuine spare parts. When you choose an Electric Wall Saw from YG Machinery, you’re choosing a product that is backed by a reliable and experienced manufacturer committed to your success. WhatsApp/WeChat/Phone +86 138 3715 9132
