Flexo Printing Machine

A Flexo Printing Machine is a modern press that prints on a wide range of materials. It uses flexible plates and liquid inks. This machine is good for high-speed runs. It works well for paper cups, cartons, labels, and flexible packaging. The Flexo Printing Machine gives clear color, quick changeover, and low waste.

Key Product Features of Flexo Printing Machine

• High Speed And Stable Operation: Runs long jobs with steady print quality.
• Flexible Color Options: Available in 2, 4, or 8 color stations for simple to complex jobs.
• Easy Plate Change: Fast tooling change reduces downtime.
• Low Ink Consumption: An Efficient anilox and ink system saves cost.
• Automatic Controls: PLC and touch screen make the press easy to use.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Product Parameters of Flexo Printing Machine for Sale

Model	YG-320	YG-420	YG-550	YG-650
Max. web width	320 mm	420 mm	550 mm	650 mm
Max. printing width	310 mm	410 mm	520 mm	650 mm
Printing speed	10-60 m/min	10-60 m/min	10-60 m/min	10-60 m/min
Printing color	1/2/3/4/5/6/7/8 color	1/2/3/4/5/6/7/8 color	1/2/3/4/5/6/7/8 color	1/2/3/4/5/6/7/8 color
Max. unwinding diameter	600 mm	600 mm	600 mm	600 mm
Max. rewinding diameter	600 mm	600 mm	600 mm	600 mm
Printing length	177.8-355.6 mm	177.8-355.6 mm	177.8-355.6 mm	177.8-355.6 mm
Voltage	380V±10%	380V±10%	380V±10%	380V±10%
Precision	±0.15mm	±0.15mm	±0.15mm	±0.15mm
Voltage	3P 380V,50HZ	3P 380V,50HZ	3P 380V,50HZ	3P 380V,50HZ

Model	YG-850
Maximum paper width	860mm
Maximum printing width	850mm
Plate repeat length	181～450mm
Maximum unwinding diameter	1000mm
Maximum recovery diameter	1000mm
Registration accuracy	±0.12mm
Gear specification	1/8cp
Maximum machine speed	100m/min
Plate thickness	1.7mm
Plate thickness	0.38mm
Suitable printing material	30-300gsm paper printing
Host Color	white
Operation language	Chinese and English logo
Operation console	located in front of the printing unit
Air pressure requirements	100PSI (0.6Mpa), clean, dry, oil-free compressed air
Power supply demand	380V±10% 3PH phase 50HZ
Tension control range	10-100KG
Tension control accuracy	±0.5kg
Drying method	ordinary IR, optional (UV)
Heating oven maximum temperature	80℃

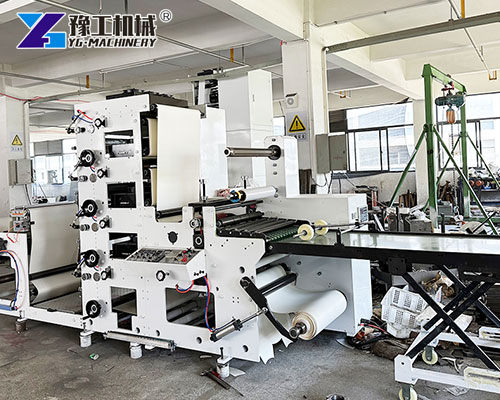

How The Flexographic Printing Press Works

1. Plate Mounting: Flexible printing plates are fixed on the cylinder.
2. Ink Transfer: Ink is metered by anilox roll and transferred to the plate.
3. Impression and Transfer: The Plate presses ink onto the substrate as it moves.
4. Drying: UV or hot air dryer fixes the ink quickly.
5. Rewinding/Cutting: Printed web is collected or cut into the final form.

This process allows fast runs and stable color. The automatic flexo printing equipment controls speed, tension, and registration.

Product Advantages of Flexographic Printing Press

• Cost Efficient:
  • Lower ink use than many other methods.
  • Less waste due to accurate registration.
• High Quality:
  • Good color strength and repeatability.
  • Stable print for long runs.
• Fast Setup:
  • Quick plate and job change help small batches.
• Versatile:
  • Works on many substrates and for many products.
• User Friendly:
  • Touch screen and servo controls make operation simple.

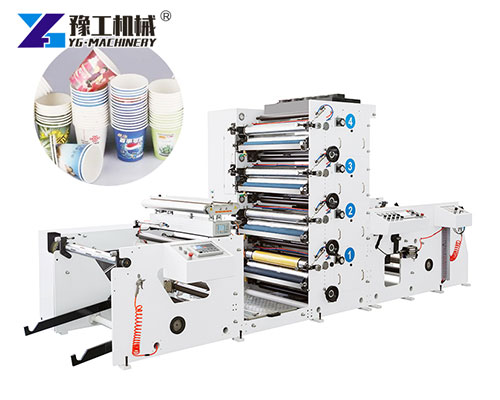

Application Fields of High-speed Flexo Printer

• Paper Cup and Food Packaging: Good for safe, fast cup printing.
• Corrugated And Folding Cartons: High-speed box printing.
• Flexible Packaging: Film and laminate printing with special inks.

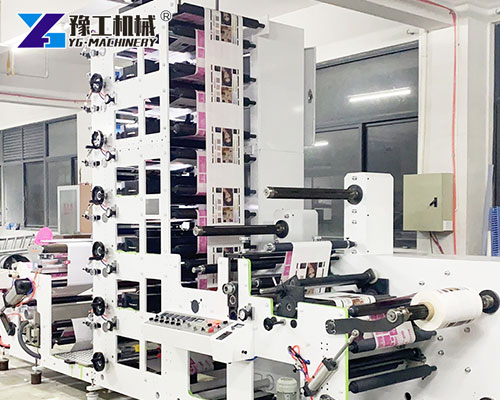

• Labels And Stickers: Precise color registration for many label shapes.
• Industrial Packaging: Large runs for consumer goods and food boxes.

Why Choose YG Flexo Printing Machine

• Proven Technology: We use reliable components and servo drives for steady output.
• Custom Options: 2/4/8 color models fit small to large jobs.
• After-Sales Support: Training, spare parts, and fast service from our team.
• Good ROI: Lower ink cost and higher speed reduce unit cost.
• Safety and Standard: Machines meet CE and export safety rules.

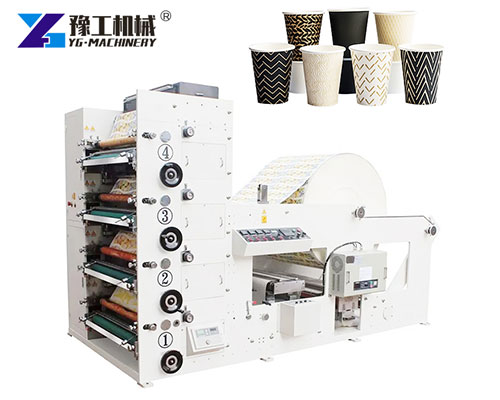

Customer Case of 4-color Flexo Printing Machine

A European paper cup maker installed our 4-color Flexo Printing Machine. After three months, they reported:

• Production efficiency up 35%.
• Ink usage down 20%.
• Product appearance consistency improved.
  Customer comment: “Easy to operate, stable color registration, fast job change.” This case shows the press works well for food-grade packaging and helps clients win new orders.

Common Questions (FAQ)

Q: What jobs suit a 2-color machine?
A: Simple logos, single color designs, and low-cost cups or bags.

Q: Can the press print on coated paper?
A: Yes. Use correct ink and dryer settings for coated stock.

Q: How fast can an 8-color machine run?
A: Top speed depends on substrate and drying. Typical top speed is 200–300 m/min for paper.

Q: Is plate making difficult?
A: Modern plate making is simple. YG can advise on plate suppliers and settings.

Q: Do you provide spare parts?
A: Yes. We provide spare parts, tools, and remote technical support.

How To Get A Quote

Contact YG with:

• Your product type (paper cup, carton, label).
• Required print width and colors.
• Expected daily output.
  We will suggest a model and provide the price, lead time, and shipping options.
