In modern construction, the demand for installing large glass panels and curtain walls is rapidly increasing. A Glass Installation Robot is now the smart choice for builders and contractors. It makes glass handling safer, faster, and less labor-intensive, solving many of the problems of manual installation.
What Is a Glass Installation Robot?
A Glass Installation Robot is an intelligent machine designed to lift, move, and install glass using vacuum suction cups and a robotic arm.
- It works with vacuum suction, electric or hydraulic power, and remote control.
- Compared with manual installation, it greatly reduces risks such as falls or glass breakage.
- It saves time and labor costs, making it a better investment for construction companies.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Specifications of Glass Installation Robot Machine
| Model | YG400-MINI | YG-600M | YG-500OR | YG-800L |
| Max. Lifting Height | 3.2M | 3.6M | 3.5M / 5M | 4.6M |
| Max. Rated Loading/Capacity | 400kg | 600kg | 500kg | 800kg |
| Max. Applied Work Piece Size | 5×3M | – | 6×3M | 7×3M |
| Driving Speed | 0-4km/h | 0-4km/h | 0-4km/h | 0-4km/h |
| Driving Wheel | 24V Motor on back wheel | AC 24V front wheel driving | AC 24V axle on back wheels | AC 24V front wheels driving |
| Driving Motor Power | 750W / 1.5kW (Optioned) | 2.2kW | 2.2kW | 2.2kW |
| Up-Hilling | 15% | 15% | 15% | 12% |
| Suction Cup Number/Size | 6×290mm | – | 6×300mm | 8×400mm |
| Vacuum Circle | Dual pumps and dual circles | Dual pumps and dual circles | Dual pumps, dual circles | Dual pumps and dual circles |
| Alert Indication | Light and acoustic | Light and acoustic | Light and acoustic | Lights and acoustic |
| Extension Distance/Arm Extension | 500mm | 650mm | 600mm | 650+500mm |
| Tilting Degree | 0° -180° | 0° -135° | 0° -180° | 0° -180° (Electric flip) |
| Rotating Degree | Endless to both sides | 0° -360° endless | Endless on both sides | 0° -360° endless |
| Side Shift | ±50mm | ±50mm | ±50mm | ±50mm |
| Side Turning | Free on both 90° | 90° to both sides | 90° on both sides (manual) | 90° (left) +15° (right) |
| Batteries | DC12V×2×80Ah | DC12V×2×150Ah | DC12V×2×100Ah | DC12V×2×150Ah |
| Charging Power | AC 220V/110V~240V | AC110V-220V | AC220V/AC110-240V | AC220V/AC110-240V |
| Max. Work Time | 8h | 8h | 8h | 8h |
| Min. Machine Dimensions | 2300×700×1400mm | 2055×850×1800mm | 2012×800×1920mm | 3100×1620×880mm |
| Self Weight | 771kg | – | 1136kg | 1925kg |
Key Features of Glass Installation Robot
The Glass Installation Robot has many advanced features that make it suitable for construction and industrial projects:
- Strong load capacity: lifts 200–1000kg glass panels with ease
- 360° rotation: handles glass installation in complex positions
- Safety design: vacuum alarm system and anti-slip features
- Easy operation: wireless remote control, single-person handling
- Wide applications: glass curtain walls, interior partitions, and sliding doors

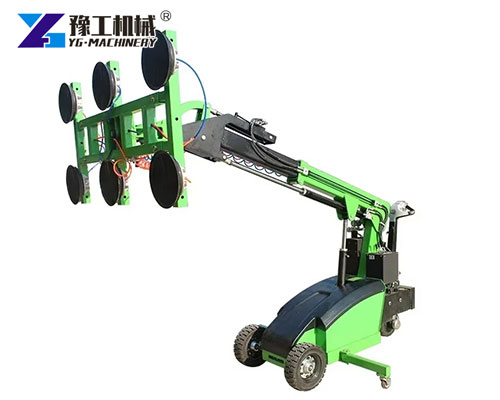

Applications Of the Vacuum Glass Lifter Robot
The vacuum glass lifter robot can be used in many fields, including:

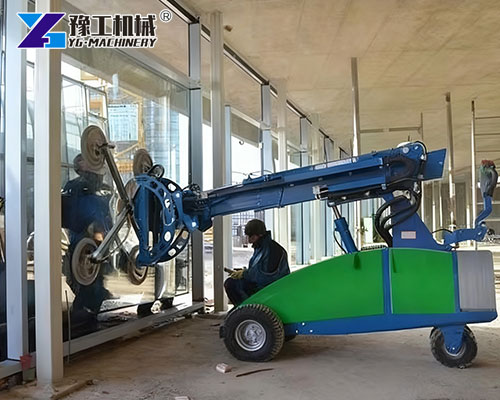

- High-rise building curtain wall installation
- Glass doors and walls in shopping malls and showrooms

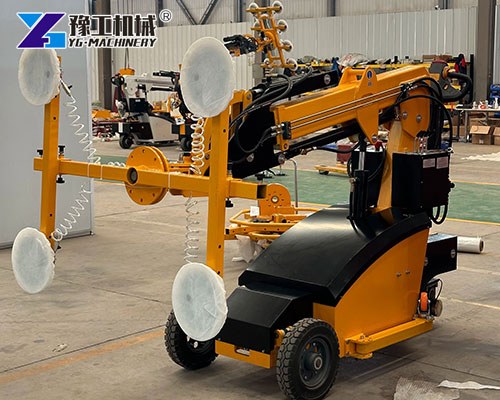

- Indoor glass partitions and display units
- Handling solar panels and tempered glass sheets
Advantages Of Using A Glass Handling Robot
Choosing a glass handling robot offers several clear benefits:
- Faster installation speed, 2–3 times quicker than manual work
- Reduced risks, lowering accidents, and glass damage
- Cost savings by cutting down labor requirements
- Flexible use with different glass sizes and heights
Benefits Of Choosing A Robotic Glass Lifter
The robotic glass lifter provides real value for modern construction:
- High safety with vacuum technology
- Reliable performance in both indoor and outdoor environments
- Smart design that minimizes human effort
- Long-term cost efficiency for contractors and companies
Glass Lifting Equipment For Sale
At YG, we provide advanced glass lifting equipment for sale that meets international standards:
- Exported worldwide, compliant with CE and safety regulations
- Different models available: vacuum type, crawler type, mobile type
- Affordable glass lifter price with high performance
- Professional support team for installation and training
Why Choose Our Smart Glass Installation Machine
Our smart glass installation machine is trusted by global clients because:
- We have years of export experience with excellent service
- Multiple models and capacities are available to meet project needs
- Full support with spare parts, technical help, and after-sales guidance
- Competitive prices and strong market reputation
The Glass Installation Robot is the future of safe and efficient glass installation. It is the perfect choice for high-rise buildings, industrial projects, and solar panel handling. Contact us today to get the best robotic glass lifter price and customized solutions.
YGMachinery not only provides professional glass installation robots but also offers a range of high-altitude lifting equipment, including mini spider cranes equipped with glass suction cups and electric lifting platforms.
