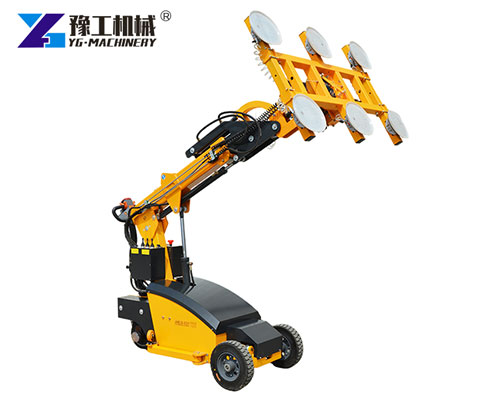

A Glass Lifting Robot is a smart machine designed for lifting, moving, and installing large glass panels. It utilizes a robust vacuum suction system to securely hold the glass. The robot is built with several core parts:
- Vacuum suction cups
- Electric linear actuators
- Telescopic lifting arm
- Mobile chassis
This equipment is widely used in glass installation, building facade projects, and moving large interior glass panels. It helps workers work faster, reduces injuries, and lowers the risk of glass breaking. Many installation teams utilize the robot as a safer and more efficient alternative to manual glass handling.

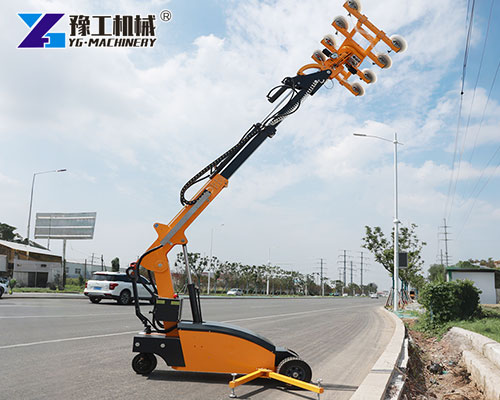

Vacuum Glass Lifter Features
The vacuum system is the heart of the machine. It ensures stable suction even when handling big or heavy panels.
Main Features
- High suction power suitable for smooth and coated glass surfaces
- Options for manual or electric vacuum pumps
- Real-time vacuum monitoring
- Alarm system to ensure safe operation
This type of vacuum glass lifter can handle laminated glass, tempered glass, and oversized glass commonly used in modern buildings.

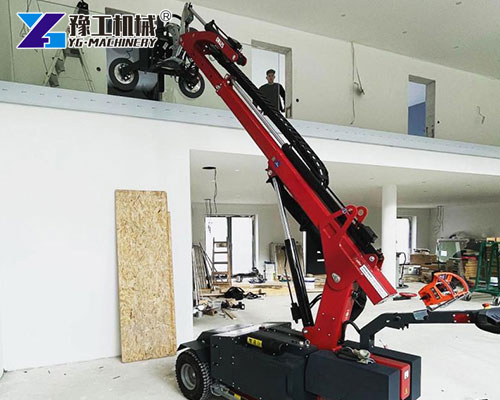

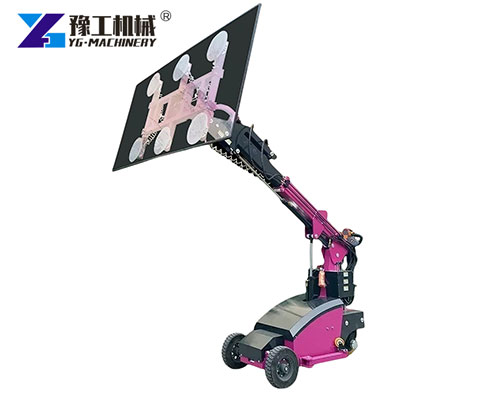

Mobile Glass Lifting Robot For Job Sites
A mobile glass lifting robot offers excellent mobility. It can move smoothly in small or narrow spaces and can be used on different job sites.
Main Capabilities
- 360° rotating head for flexible positioning
- Electric fine-adjustment for forward, backward, left, and right
- Works on slopes, uneven ground, or indoor floors
This type of robot is ideal for busy construction areas, shopping malls, and glass installation projects where space is limited.
Key Benefits Of Using A Glass Lifting Robot
A Glass Lifting Robot brings many benefits to construction teams and installation companies.
- Reduce the risk of glass damage
- Easily lift large or heavy glass panels
- Improve installation speed by 3–5 times
- Work well in difficult environments
- Lower labor costs and reduce worker fatigue
These advantages make it a long-term, cost-effective solution for glass contractors.
Technical Parameters Of YG Glass Lifting Robot
YG offers several models to meet different project needs. Main technical specifications include:
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 | |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) | |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm | |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs | |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm | |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | |||||
| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. | ||||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). | |||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | |||||
Custom configurations are available for special engineering projects.
Application Scenarios
The Glass Lifting Robot is suitable for many types of installations:

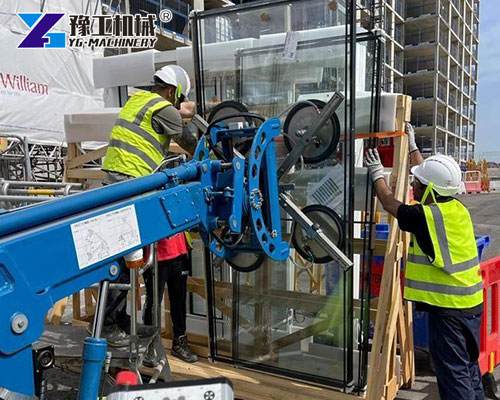

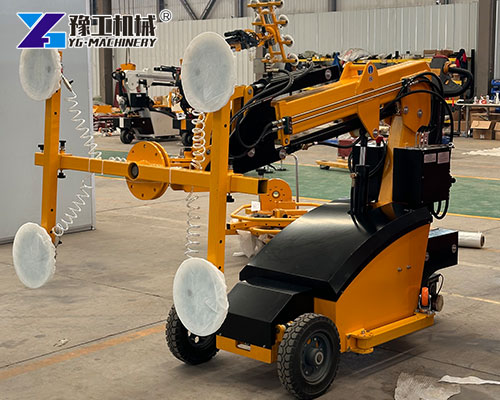

- Curtain wall glass installation
- Building exterior facade projects

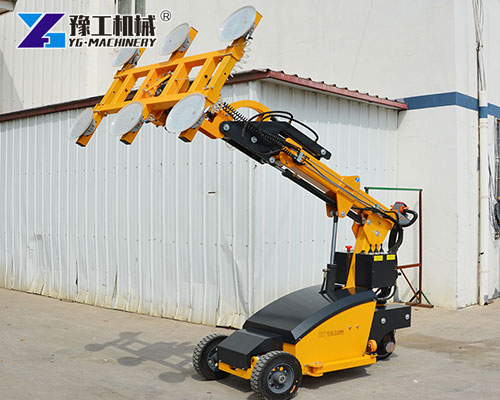

- Large glass transportation inside factories
- Indoor glass partition installation
- Home renovation for large sliding doors or windows

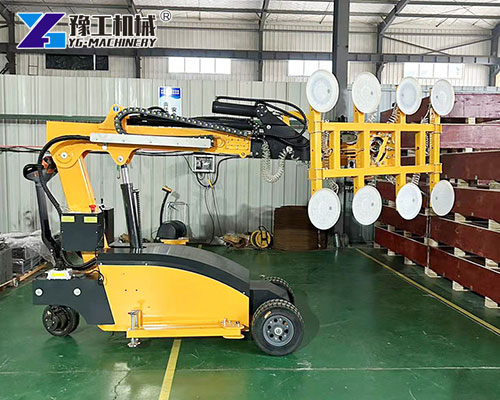

Its stability and precise control make it ideal for both small and large projects.
How To Choose The Right Glass Lifting Robot
Choosing the correct machine depends on your job site and glass size.
Selection Tips
- Choose a model based on glass weight
- Select tire or crawler base depending on ground conditions
- Pick suction cup quantity based on glass panel size
- Choose lifting height according to installation position
If you share your project details, YG can recommend the most suitable model.
Customer Cases
YG Glass Installation Robots are used in many countries.
- Germany: 10 units of the 500kg model used in facade installation
- United States: Indoor glass partition installation for commercial buildings
- Canada: Large tempered glass handling inside a glass processing factory
- United Kingdom: Glass installation for a commercial center exterior wall
These cases show stable performance and strong reliability in different working environments.
Why Choose YG Glass Lifting Robot
YG is a trusted supplier with long-term experience.
- 20+ years of construction machinery export experience
- CE-certified equipment
- OEM customization support
- Training videos and full user manuals
- Worldwide delivery and after-sales service
YG also provides spare parts, technical support, and fast response service for all customers.
Contact Us For Glass Lifting Robot Price
To get an accurate quotation, please share:
- Glass weight
- Glass size
- Working height
- Job site conditions
We can also check your project photos and give you the best solution. YG offers fast shipping, free project evaluation, and 24-hour support. Our team ensures safe operation and long-term stable performance.
WhatsApp/WeChat/Phone: 86 138 3715 9132
