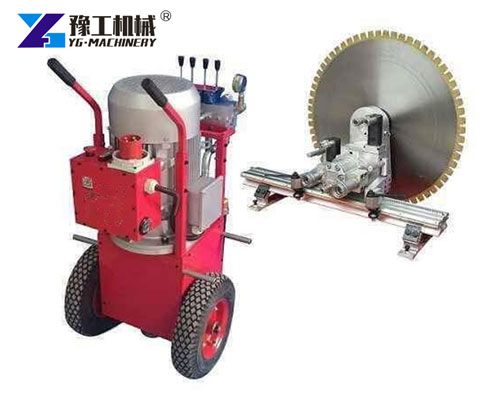

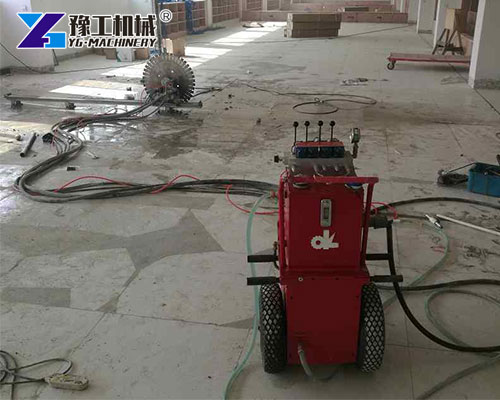

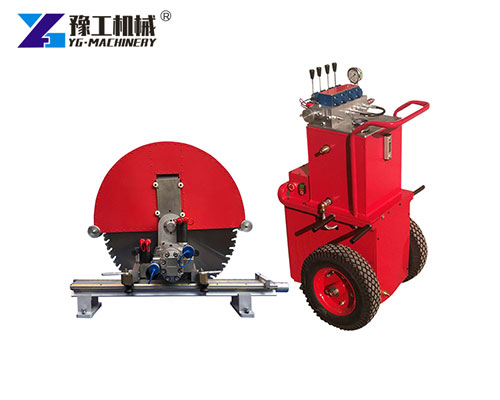

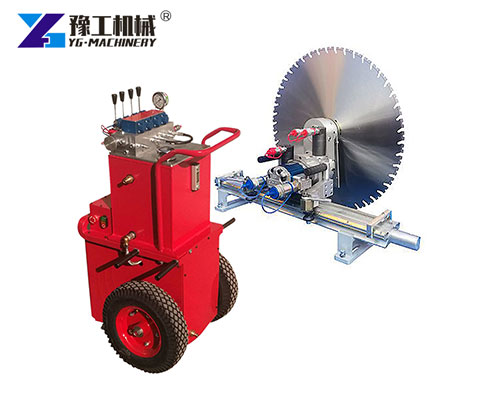

The hydraulic wall saw is a powerful, precision-cutting machine designed to cut reinforced concrete, brick, masonry, and stone structures—especially walls, floors, and ceilings—with high accuracy. Powered by a hydraulic power unit, it uses a diamond blade mounted on a track system, allowing smooth and controlled cuts in vertical, horizontal, or inclined positions.
Hydraulic wall saws are commonly used in construction, demolition, renovation, and civil engineering projects, especially where large openings like doors, windows, elevator shafts, or HVAC vents need to be created in solid walls or slabs. WhatsApp/WeChat/Phone +86 138 3715 9132
Parameters of Hydraulic Wall Saw Machine

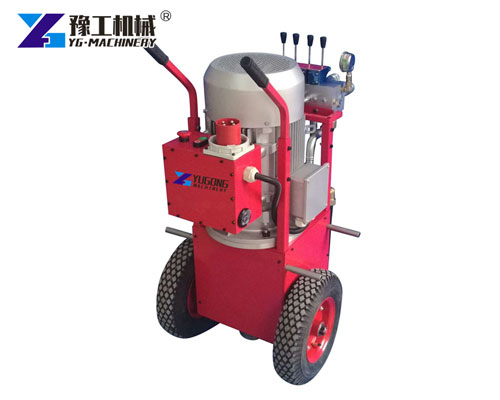

| Hydraulic Oil Pump | Model | YG 600 | YG 700 |
| Max. power | 25KW | 30KW | |
| Motor cooling method | Air cooling | water cooling | |
| Rated voltage | 380V 50HZ | 380V-420V 50HZ-60HZ | |
| Pressure stages | 3 | 3 | |
| Max. operating pressure | 200bar/20Mpa | 210bar/21Mpa | |
| Oil flow rate | 30-80L/min | 40-100L/min | |
| Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm | |
| Weight | 220kg | 140kg | |
| WallSaw | Saw blade diameter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm | |
| Max. working pressure | 180bar/18Mpa | 200bar/20Mpa | |
| Max. oil flow rate | 100l/min | 100l/min | |
| Gearing | Gear | Gear | |
| Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm | |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm | |
| Weight | 38kg | 39kg |
Key Features of Hydraulic Wall Saws
- High Cutting Power
Ideal for thick, reinforced concrete (up to 900 mm or more), even in densely rebarred structures. - Precision Track System
Allows the saw blade to travel smoothly in a controlled, linear path for straight, accurate cuts. - Variable Speed and Depth Control
Operators can adjust blade rotation and cutting depth based on material thickness and hardness. - Remote Control Operation
Enhances operator safety by allowing control from a safe distance, especially in hazardous environments. - Water-Cooled Diamond Blades
Reduces dust and cools the blade during cutting, extending its life and improving performance. - Modular and Portable Design
Easier transport and assembly, especially in confined or elevated job sites.

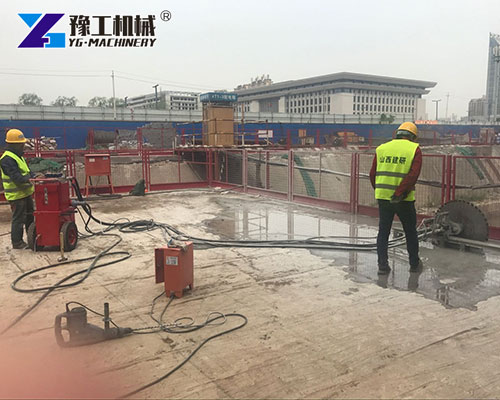

Applications of Hydraulic Concrete Wall Saws
Building Renovation
In building renovation projects, contractors commonly use the Hydraulic Wall Saw to create new doorways, windows, or openings in existing walls.
For example, when converting an old building into a modern office space, they can use the saw to cut through thick concrete walls to install larger windows for better natural lighting. They can also use it to remove sections of walls to create more open floor plans.
Demolition Work:
During demolition projects, the Hydraulic Concrete Wall Saw Machine plays a crucial role in selectively removing parts of a building.
Instead of using more destructive methods that could damage surrounding structures, the wall saw allows for precise cutting, enabling the controlled removal of walls and other elements. This is especially important in urban areas where minimizing collateral damage is essential.
Construction of Infrastructure:
In infrastructure construction, such as building tunnels, subways, and bridges, workers use the saws to cut through concrete and rock formations.
It helps in creating precise openings for pipes, cables, and other essential components. The saw’s ability to handle tough materials makes it a valuable asset in these large-scale construction projects.
Industrial Facilities:
Industrial facilities often require modifications to their structures.
The saw can be used to cut through walls and partitions in factories, warehouses, and power plants. Whether it’s for installing new machinery or reconfiguring the layout of the facility, this saw provides the necessary cutting capabilities.
Functions of Hydraulic Wall Saws
- Straight Cutting: The primary function of the Hydraulic Wall Cutting Saw is to perform straight cuts. With its precise guidance system and powerful cutting force, it can quickly and accurately cut through walls in a straight line. This is essential for creating openings of a specific width or for separating sections of a wall.
- Curved Cutting: In addition to straight cuts, the saw can also be used for curved cutting. By adjusting the cutting path and using specialized techniques, operators can create smooth, curved cuts in walls. This function is useful in architectural projects where unique shapes and designs are required.
- Deep Cutting: The high – power hydraulic system of the Wall Saw enables deep cutting. It can cut through thick walls and materials, reaching depths that would be difficult or impossible with other cutting tools. This makes it suitable for projects that require extensive removal or modification of large – scale structures.
Saw Blades of Wall Saw
The cutting blade is a key component of the Hydraulic Wall Saw, and selecting the right one significantly impacts performance. Various blade types are available depending on the material and depth of the cut:
- Diamond Blades: Ideal for reinforced concrete, providing fast and long-lasting cutting capacity.
- Segmented Blades: Best for dry cutting and offer excellent cooling through open slots.
- Continuous Rim Blades: Provide a smoother finish and are typically used for precision applications.
The operator can mount different blade sizes to handle various depths and materials, which allows them to adapt the machine for any job.
Hydraulic Wall Saw Manufacturer: YG Machinery
YG Machinery is a leading producer of advanced construction machinery, including the Hydraulic Wall Saw. Here’s why professionals trust YG:
Rich Industry Experience: Years of development and field testing guarantee proven, high-performance products.
OEM Customization: Get machines tailored to your specific job needs and branding preferences.
Global Delivery: Rapid and reliable shipping worldwide with expert logistics support.
After-Sales Service: Technical assistance, training, and spare parts ensure worry-free operation.
Competitive Pricing: Exceptional value for money without compromising on durability or features.
When it comes to choosing a top-tier Hydraulic Wall Saw, YG Machinery combines technology, performance, and service into one dependable solution.
