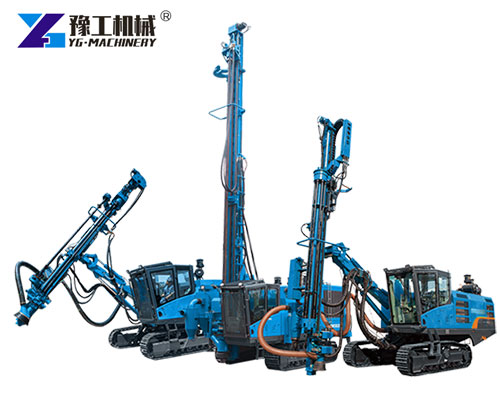

Integrated DTH drilling rig operation
Integrated DTH drilling rig operation

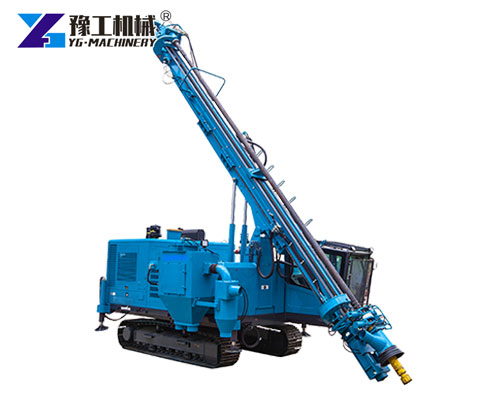

Crawler-mounted integrated drilling machine
Crawler-mounted integrated drilling machine

What Are Integrated DTH Rigs?

Integrated DTH Rigs are highly compact and efficient. The down-the-hole drilling Rigs that combine the power unit, air compressor, and hydraulic drilling system into one mobile structure. Unlike Split-Type DTH Rigs, these units are designed for simplified operation, rapid deployment, and reliable performance in a wide range of environments.

They are especially useful for small- to medium-depth drilling projects, offering a reliable solution for water well drilling, borehole construction, and soil investigation. This type of rig is ideal for remote locations, as it requires no additional power or air source connections.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Down the Hole Drilling Machine Parameter

ModelYGS100AYGS153YGS180YGS300YGS350
Total weight5.95T3.8T6.3T6.8T8T
Walking speed2.5km/h2.5km/h2.5km/h2.2/3.8km/h4km/h 2km/h
Diesel tank capacity85L70L85L85L225L
Shipping size6500*2100*2400mm4640*1980*2260mm6600*2110*2500mm6600*2220*2600mm7600*2350*2800mm
Drilling hole diameter90-146mm83-130mm90-146mm90-152mm90-165mm
Power configurationYCD4R22T-80YC2108 33kw/2400rpmYCD4R22T-80 55kwYC4DK80-T302YC4DK100-T304 73.5kw/2200rpm
Highest horizontal hole height3.2m2.8m3.6m3.25m3.5m

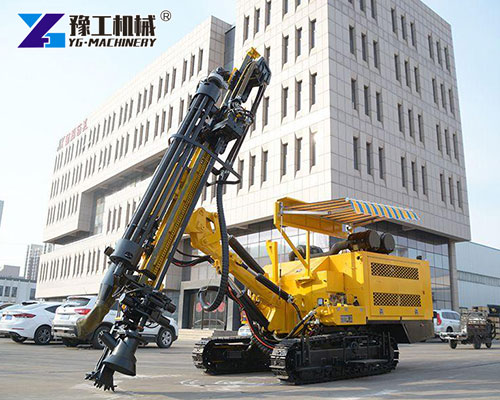

Built-in compressor DTH rig
Built-in compressor DTH rig

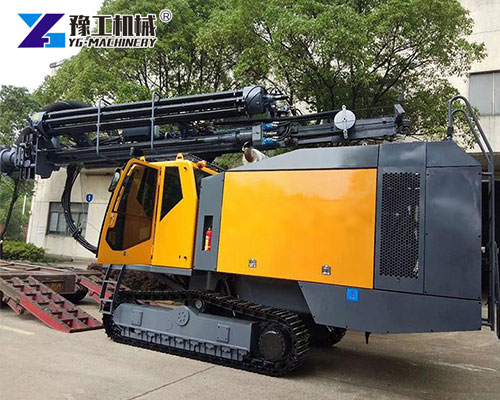

Hydraulic DTH drilling rig controls
Hydraulic DTH drilling rig controls

Key Components and Structure

An Integrated DTH Rig has these parts:

  • Air Compressor (Built-In): It gives strong air to help drill into the ground.
  • Hydraulic System: It controls how fast and strongly the drill moves.
  • Control Panel: One person can run the rig with this system.
  • Crawler Chassis: It moves easily on rough or hard roads.

Because all parts are in one machine, it is easy to move and set up.

Advantages of Integrated DTH Rigs

  • One Machine, Many Jobs: You don’t need an extra air compressor.
  • Easy to Move: It works well in mountains, farms, and remote places.
  • Saves Energy: Uses less fuel than older rigs.
  • Easy to Use: Small teams can use it. Good for quick jobs.

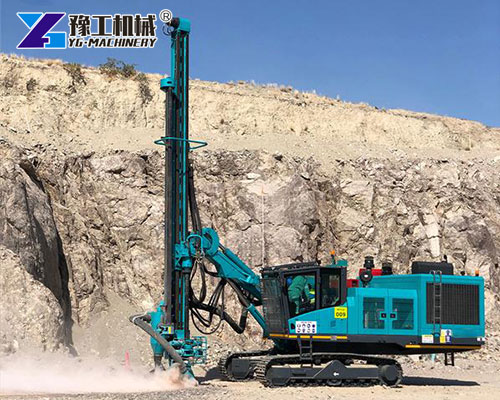

Rock drilling with an integrated rig
Rock drilling with an integrated rig

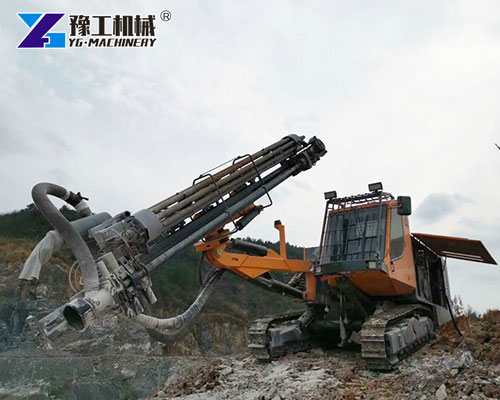

Mobile DTH rig on the job site
Mobile DTH rig on the job site

Typical Applications of Integrated DTH Rigs

Integrated DTH Rigs can be used for:

  • Water Well Drilling in villages and farms.
  • Soil and Rock Tests for Building Foundations.
  • Mining Work and rock blasting jobs.
  • Borehole Drilling for homes and factories.

It is very good in hard-to-reach places, like hills or forests. Also used in emergency rescue.

Performance & Technical Options

You can choose different models:

  • Drilling Depth: From 100m to 300m.
  • Power Type: Diesel or electric.
  • Drill Bits: For hard rocks or soft soil.
  • Drilling Mode: Wet or dry drilling.

It works with many DTH drilling tools.

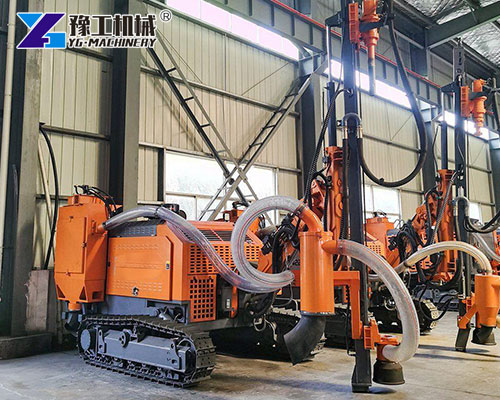

Diesel-powered DTH drilling machine Manufacturer
Diesel-powered DTH drilling machine Manufacturer

Integrated DTH Rigs Cost

This rig can help you save money:

  • No need to buy extra air compressors.
  • Fewer workers are needed.
  • Fast to move and start work.
  • Easy to fix and clean. Common parts are easy to find.

Their modular design allows for easy access during routine maintenance, and common spare parts reduce downtime significantly.

Operational Environments

It works well in many places:

  • Hot areas: The Cooling system keeps the machine safe.
  • Mountains: Crawler design helps move on hills.
  • Far away places: No need for power lines or other tools.

Used in geotechnical drilling, deep water wells, and factory boreholes.

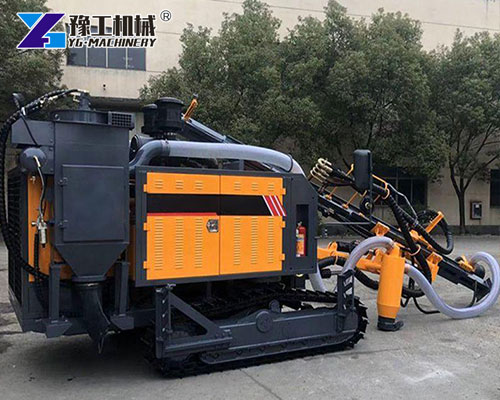

Integrated DTH rig Producer
Integrated DTH rig Producer

FAQs – Integrated DTH Rigs

Q1: Can it drill hard rock like granite?
Yes. With strong drill bits, it can drill granite and basalt.

Q2: Can it work in very hot places?
Yes. It has a cooling system to stop overheating.

Q3: What is different from Split-Type DTH Rigs?
Integrated DTH Rigs are small and easy to use. Split-type rigs can drill deeper but need more machines.

Q4: Can I change the air compressor?
No. The air compressor is inside the rig. If you want to change it, use a Split-Type rig.

Q5: How do you transport it?
You can move it with a trailer or a small truck.
