Mast Lifts are compact vertical access platforms designed for safe and stable lifting in confined work areas. Powered by electricity or hydraulics, these machines feature telescoping masts made of high-strength aluminum alloy and are widely used for indoor maintenance, installation, and warehousing.
Unlike traditional scaffolding or ladders, Mast Lifts provide a secure working platform with guardrails, ensuring operator safety at various heights. With minimal floor space usage and excellent maneuverability, they are especially suitable for tight or cluttered environments.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Single Mast Aluminum Lift Parameter
| M O D E L | AWP1-6 | AWP1-8 | AWP1-9 | AWP1-10 | ||||
| Loading Capacity | 150kg | 150kg | 150kg | 130kg | ||||
| Occupants | 1 | 1 | 1 | 1 | ||||
| Max.Working Height | 8.00m | 10.00m | 11.00m | 12.00m | ||||
| Max.Platform Height | 6.00m | 8.00m | 9.00m | 10.00m | ||||
| 0verall Length | 1.34m | 1.34m | 1.45m | 1.45m | ||||
| Overall Width | 0.85m | 0.85m | 0.85m | 0.85m | ||||
| Overall Height | 1.99m | 1.99m | 1.99m | 1.99m | ||||
| Platform Dimension | 0.60m*0.55m | 0.60m*0.55m | 0.60m*0.55m | 0.60m*0.55m | ||||
| Outrigger coverage | 1.7m*1.67m | 1.7m*1.67m | 1.93m*1.77m | 1.93m*1.77m | ||||
| Lifting Motor | 0.75KW | 0.75KW | 0.75KW | 1.1KW | ||||
| Weight(AC) | 325kg | 378kg | 400kg | 430kg | ||||
| Option | DC | 12V/80Ah | 12V/80Ah | 12V/80Ah | 12V/80Ah | |||
| Motor | 1.5KW | 1.5KW | 1.5KW | 1.5KW | ||||
| Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A | ||||
Types of Mast Lifts
Mast lifts are available in various configurations, primarily distinguished by the number of vertical masts supporting the platform. Each type is designed to cater to different height requirements, stability needs, and work environments, offering specialized solutions for a broad range of tasks.

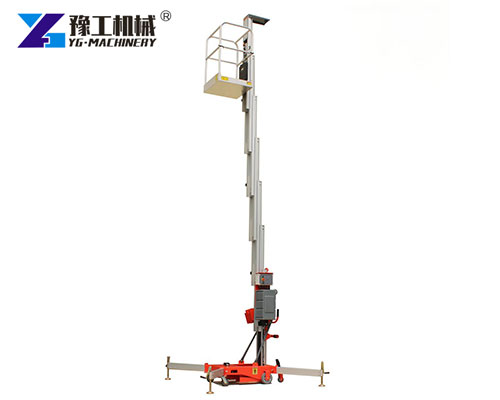

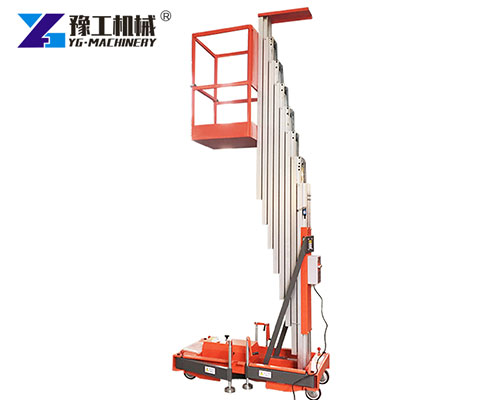

- Single Mast Lifts:
- Description: These are the most compact and lightweight type of mast lift, featuring a single, vertically extending mast.
- Ideal for: Indoor applications, tight aisles, delicate flooring, and tasks requiring quick setup and repositioning.
- Characteristics: Excellent maneuverability, often battery-powered for quiet and emission-free operation.

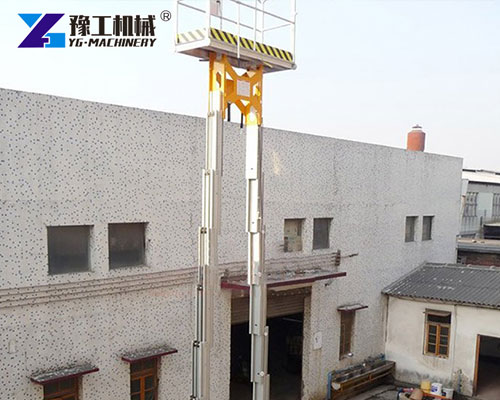

- Dual Mast Lifts:
- Description: Equipped with two parallel vertical masts, offering enhanced stability and often a larger platform than single-mast models.
- Ideal for: Applications requiring greater stability and a wider working area for one or two operators, such as general maintenance or installation tasks.
- Characteristics: Improved rigidity and lift capacity compared to single masts, while still maintaining a relatively compact footprint.
- Triple Mast Lifts:
- Description: Featuring three vertical masts, these lifts provide even greater stability and typically achieve higher working heights.
- Ideal for: More demanding indoor and sometimes protected outdoor applications where increased platform stability and higher reach are critical.
- Characteristics: Enhanced safety for operators working at greater heights, capable of handling slightly heavier loads.
- Quad Mast Lifts:
- Description: These are the most robust and stable type of multi-mast lift, utilizing four vertical masts for maximum rigidity and load capacity.
- Ideal for: Heavy-duty applications, higher reach requirements, and situations where maximum platform stability is essential for multiple operators or heavier tools.
- Characteristics: Superior stability, allowing for work at significant heights with confidence, often with larger platforms to accommodate more personnel and equipment.
The choice between these categories largely depends on the required working height, platform capacity, workspace constraints, and the nature of the tasks to be performed. For instance, a Mast Aluminum Alloy Lifting Platform often falls into the single or dual mast categories due to its lightweight construction and focus on maneuverability.

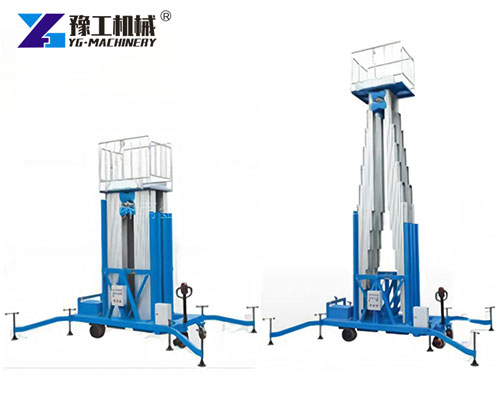

Features of a Mast Aluminum Alloy Lifting Platform
A Mast Aluminum Alloy Lifting Platform stands out due to its corrosion-resistant construction and ease of handling. YG’s mast lifts integrate key safety and performance features to ensure productivity without compromising worker protection.
Main features include:
- Aluminum Alloy Masts – Lightweight yet robust structure
- Safety Guardrails – Full enclosure for operator protection
- Non-Marking Wheels – Ideal for indoor flooring
- Emergency Stop Function – Ensures immediate safety control
- AC/DC Power Options – Flexible for indoor or remote site operation
- Compact Storage – Foldable guardrails and retractable outriggers
This combination of lightweight design and heavy-duty performance makes it a go-to solution for professionals working at height.
Applications of Mast Lifts
Mast Lifts are versatile tools used across many industries that require vertical access in narrow or sensitive environments. Whether for maintenance, installation, or inspection, these lifts offer practical solutions in areas where traditional equipment would be inefficient.
- Facility Maintenance – HVAC servicing, lighting repair, and ceiling work
- Retail and Warehousing – Stock picking, signage installation
- Hotels and Malls – Interior decoration, cleaning tasks
- Airports and Stations – Surveillance system checks, public infrastructure maintenance
- Event Venues – Rigging and lighting setup
Their small turning radius and vertical lifting action make mast lifts ideal for busy and restricted locations.
Advantages of Using Mast Lifts
Investing in a Mast Lift can significantly enhance worksite efficiency and safety. Its vertical lifting mechanism and stable design provide better performance over traditional height access tools.
- Increased Safety – Enclosed platform with non-slip flooring
- Labor Efficiency – Quick elevation saves time and effort
- Space-Saving Design – Fits through standard doorways and elevators
- Low Operating Costs – Minimal maintenance and low energy use
- Environmentally Friendly – Quiet operation and zero emissions indoors
By choosing a mast lift, operators gain precise elevation control and flexibility in challenging environments.
Other Aerial Lifting Platforms by YG Machinery
In addition to Mast Lifts, YG Machinery offers a full range of lifting platforms tailored to diverse industrial and commercial applications: Hydraulic Scissor Lift Platform, Electric Scaffold Lift, Straight Boom Lift Platform, Articulating Boom Lift Platform. These complementary products give users a broad choice of lifting solutions, enhancing operational productivity.
