A Pneumatic Water Well Drill Rig is an air-powered drill used to make boreholes for water. This rig uses an air compressor and special drilling tools. It works well where fuel or hydraulic systems are hard to use. Many farms, small towns, and exploration teams use this rig for fast, low-cost drilling.
WhatsApp/WeChat/Phone: 86 138 3715 9132

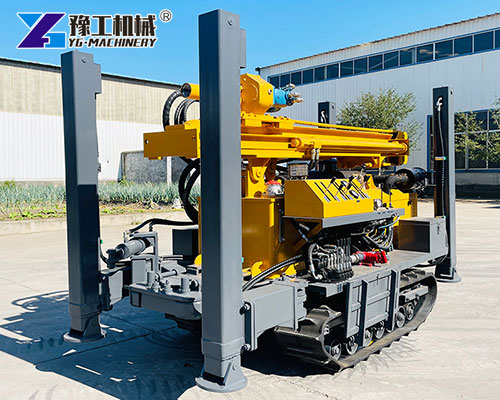

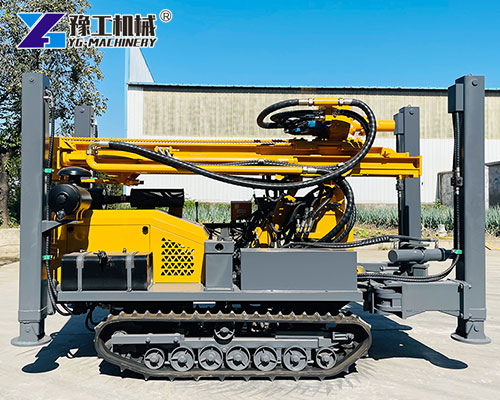

Air-Powered Water Well Drilling Machine
An air-powered water well drilling machine uses high-pressure air to break rock and move cuttings out of the hole. It is not the same as a hydraulic rig. The pneumatic rig needs a strong air compressor. The moving air spins or hammers the drill head and clears the hole.
Key simple points:
- Uses compressed air to drill and clear the borehole.
- Good for remote sites with little fuel or oil use.
- Works in many soils and rock layers when set up well.
This type of rig is light and easier to move than heavy hydraulic rigs. It also avoids the need for large hydraulic oil systems.
Product Parameters of Borehole Drilling Rig For Sale
| Model | YK-180 | YK-200 | YK-260 | YK-300 | YK-350 |
| Drilling Depth | 180m | 200m | 260m | 300m | 350m |
| Drilling Diameter | 90-315mm | 90-315mm | 90-315mm | 90-315mm | 90-315mm |
| Working Wind Pressure | 1.7-3.0Mpa | 1.7-3.0Mpa | 1.7-3.0Mpa | 1.7-3.0Mpa | 1.7-3.3Mpa |
| Air Consumption | 17-35m³/min | 17-35m³/min | 17-35m³/min | 17-35m³/min | 17-35m³/min |
| Drill Pipe Length | 3m | 3m | 3m | 3m/6m | 3m/6m |
| Drill Pipe Diameter | 76/89mm | 76/89mm | 76/89mm | 76/89mm | 76/89/102mm |
| Axial Pressure | 4T | 5T | 7T | 8T | 10T |
| Lifting Force | 14T | 15T | 16T | 17T | 25T |
| Maximum Swing Torque | 4500-6500Nm | 4900-6900Nm | 5400-7400Nm | 7200-8500Nm | 8800-9500Nm |
| Rotational Speed | 50-70r/min | 50-70r/min | 50-70r/min | 50-115r/min | 50-115r/min |
| One-time Advance Length | 3000mm | 3000mm | 3000mm | 6000mm | 6000mm |
| Crawler Speed | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h |
| Crawler Gradeability | 35° | 35° | 35° | 35° | 35° |
| Total Weight | 4T | 4.5T | 5T | 7.5T | 9T |
| Dimensions | 3.9*1.7*2.2m | 3.9*1.7*2.2m | 4*1.7*2.2m | 4.3*1.8*2.7m | 4.5*1.9*2.7m |
| Engine | 58KW | 65KW | 76KW | 85KW | 92KW |

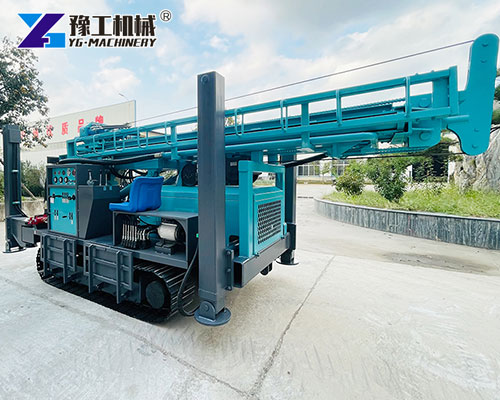

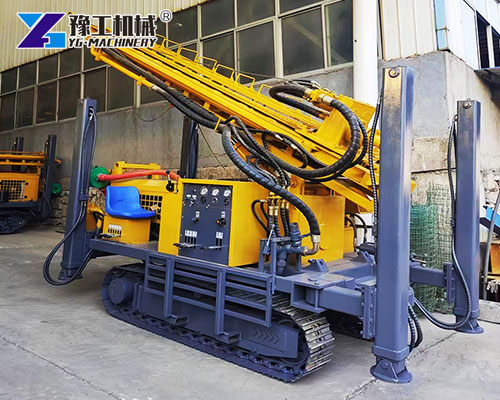

Product Features of Water Drilling Equipment
The water drilling equipment design focuses on long life and easy repair. Main features are:
- High Drilling Speed: Air hammers and rotary heads speed up cutting.
- Durable Build: Alloy steel frame and protected parts for rough sites.
- Modular Design: Easy to assemble, disassemble, and move.
- Simple Controls: Clear levers and gauges that workers learn quickly.
These features make the rig suitable for many tasks, from farm wells to small community water supplies.

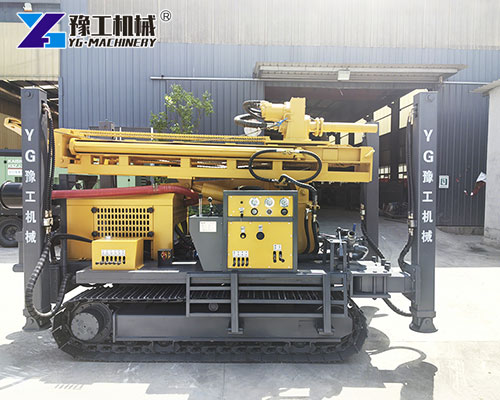

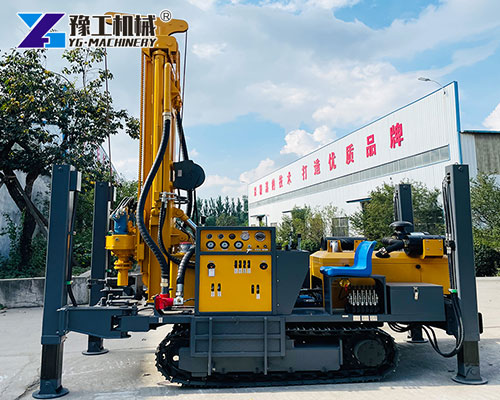

Applications of Air Compressor Drilling Rig
A good air compressor drilling rig fits many jobs:
- Agriculture: Irrigation and farm wells.
- Rural Water Supply: Village and remote area boreholes.
- Geological Work: Core drilling and sampling for ground study.
- Small Construction: Foundation and site ground checks.
The rig can use different drill bits and rods to match sand, clay, gravel, or hard rock layers. It is a flexible tool for field teams.
Usage Advantages Of Pneumatic Water Well Drill Rig
Using a Pneumatic Water Well Drill Rig gives clear business benefits:
- Lower Maintenance: No large hydraulic oil system to fix.
- Energy Saving: Air systems reduce fuel use in many setups.
- Longer Life: Less mechanical wear in some ground types.
- Fast Setup: Teams can move and set up the rig in hours.
These advantages make the rig cost-effective over time, especially in remote projects.

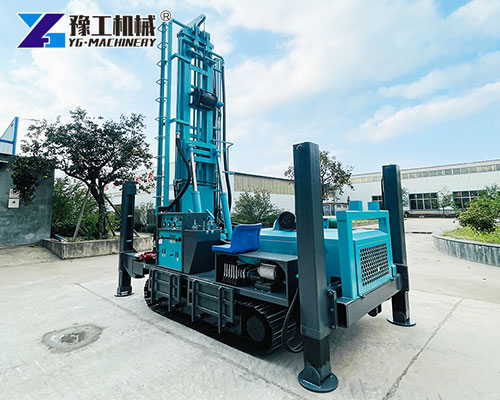

Practical Operation And Safety Tips
To use the rig well, follow simple steps and safety rules:
- Check the air compressor and hoses before starting.
- Fit the right drill head and rod for the soil.
- Wear safety gear: helmet, gloves, and ear protection.
- Keep clear of moving wire ropes and spinning parts.
These easy rules lower the chance of downtime and keep your crew safe.
Why Choose YG Pneumatic Water Well Drill Rig
YG offers tested Pneumatic Water Well Drill Rig models and full service:
- Experience: Years of making drilling rigs for many countries.
- Parts Supply: Fast spare parts delivery to reduce stoppage.
- Training: On-site or remote training for your crew.
- Custom Work: We adjust rig layout, rod length, and compressor match to your needs.
Many clients say YG rigs run long jobs with few problems. Support and spare parts help projects stay on time.

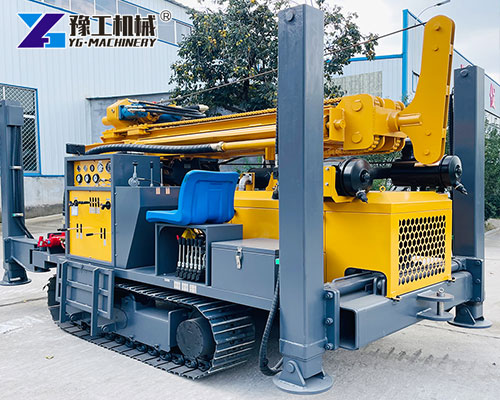

How To Buy A Borehole Drilling Rig For Sale
Buying is simple and clear:
- Tell us your drilling depth and ground type.
- Choose the rig model and compressor size.
- Confirm delivery time and packing.
- We test the rig and ship it by sea or land.
- Receive training and start drilling.
We help with transport documents and local shipping choices to make the delivery smooth.
Other Drilling Equipment And Options
In addition to pneumatic water well drilling rigs, we also offer a variety of other drilling equipment, such as: Water Well Drilling Rigs, Trailer Mounted Water Well Drilling Rigs, Water Well Drilling Machines, Borewell Drilling Machines, and Water Well Drilling Trucks.
