Portable Water Well Drilling Rigs

Portable Water Well Drilling Rigs are compact and mobile machines designed for drilling water wells. They are different from large-scale, fixed-location drilling rigs. These rigs are easy to transport from one site to another, making them a popular choice for various water-well drilling projects. Portable Water Well Drilling Rig is suitable for both small-scale domestic use and some light-industrial applications. WhatsApp/WeChat/Phone: 86 138 3715 9132

Portable Water Well Drilling Machine Parameter

Model	HY-180	HY-120	HY-240
Dimension(mm)	700*700*2500	700*700*2900	700*700*2500
Weight of machine (kg)	120	120	150
Drill rod diameter (mm)	Ø42	Ø42	Ø51
Drill rod length(mm)	1500	1500	1500
Drilling depth(m)	80	80	100
Voltage (V)	220V	220V	220V
Motor power (KW)	DC60V,1.5KW~2KW	DC60V,1.25KW~1.5KW	4.0KW
Pump power (KW)	2.2KW	2.2KW	2.2KW
Drilling hole diameter(mm)	Within Ø200mm	Within Ø120mm	Within Ø220mm
Hosting height(mm)	2000	2000	2000
Hosting capacity (kg)	500	500	500

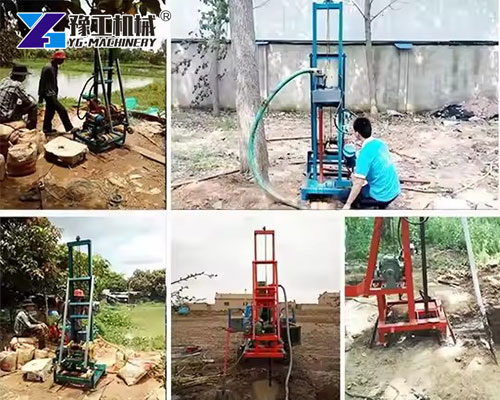

Applications of Small Portable Water Well Drilling Rigs

• Domestic Use: In rural areas without access to a centralized water supply, people can use Small Water Well Drilling Rigs for Sale to drill wells to meet household water needs. Homeowners can have their private water source for drinking, cooking, and other daily uses.
• Agricultural Use: Farmers can use a Small Water Well Drilling Rig to drill wells on their farms. Farmers can use the water from these wells for irrigation, ensuring a stable water supply for crops and livestock.
• Construction Sites: On construction sites, water is often needed for various purposes such as dust suppression and concrete mixing. A Portable Water Well Drill Rig can quickly drill wells to provide the necessary water on-site.
• Remote Areas: In remote locations such as mining camps or research stations, workers or staff can use these rigs to drill wells and meet their water requirements.

Advantages of Small Water Well Drilling Rigs

• Mobility: One of the main advantages is their portability. Users can easily move them from one location to another, enabling them to drill wells in multiple sites without the need for expensive transportation equipment.
• Cost-Effective: Compared to large, stationary drilling rigs, Small Water Well Drilling Rigs are generally more affordable. They require less initial investment and lower operating costs, making them a great option for small businesses and individual users.
• Ease of Use: Most portable water well drilling rigs are designed with user-friendly controls. Even those with limited drilling experience can operate these rigs with proper training, reducing the need for highly skilled labor.
• Quick Setup and Teardown: These rigs can be set up and dismantled in a relatively short time. This saves time and allows for more efficient drilling operations, especially when working on multiple projects.

Working Principle of Portable Water Well Drilling Rigs

The working principle of a Portable Water Well Drill Rig typically involves a rotating drill bit that cuts through the ground.

The drill bit is attached to a drill string, which is rotated by a power source, usually an engine or an electric motor.

As the drill bit penetrates the ground, water or drilling fluid is pumped down the drill string to lubricate the bit and carry the cuttings back to the surface.

The drilling fluid also helps to maintain the stability of the wellbore. Once the desired depth is reached, the drill string is removed, and a casing is inserted into the well to prevent the well from collapsing.

The well is then completed by installing a pump to draw water from the well.

Features of Portable Water Well Drill Rigs

• Compact Design: Engineers design them to be small and lightweight, which not only makes them portable but also enables them to access tight spaces.
• Powerful Engine: Despite their small size, manufacturers equip these rigs with powerful engines that can provide sufficient power for drilling through different types of soil and rock.
• Adjustable Drilling Parameters: These rigs allow operators to adjust drilling parameters such as rotation speed and feed pressure. This flexibility enables them to adapt to different geological conditions.
• High-Quality Components: They are built with high-quality components to ensure reliability and durability. This reduces the frequency of breakdowns and maintenance requirements.

Maintenance of Portable Small Water Well Drilling Rigs

• Regular inspection: It is important to perform regular inspections of the rig. Check the drill bit for wear and tear, and inspect the hydraulic hoses, belts, and other components for signs of damage.
• Lubrication: Proper lubrication of moving parts is essential to ensure smooth operation and prevent premature wear. Follow the manufacturer’s recommendations for lubrication intervals and the type of lubricant to be used.
• Cleaning: Keep the equipment clean, especially after each use. Remove any dirt, mud, or debris that may have accumulated on the fixture. This will help prevent corrosion and damage to components.
• Replacing Components: Replace worn components promptly. Do not wait until a component fails, as this can lead to more serious problems and costly repairs.

YG Machinery – A Reliable Provider of Portable Water Well Drilling Rigs

YG Machinery is a well-known company in the field of manufacturing Portable Water Well Drilling Rigs. They have a wide range of rigs available, suitable for different applications and customer needs. The rigs produced by YG Machinery are known for their high quality and reliability. They use advanced technology and high-quality materials in the manufacturing process. The company also provides excellent after-sales service, including technical support and spare parts supply. Whether you are a small-scale farmer looking for a Small Water Well Drilling Rig or a contractor in need of a Portable Water Well Drilling Rig for multiple job sites, YG Machinery can offer you the right solution. WhatsApp/WeChat/Phone: 86 138 3715 9132
