Split-Type DTH Rigs

What Are Split-Type DTH Rigs?

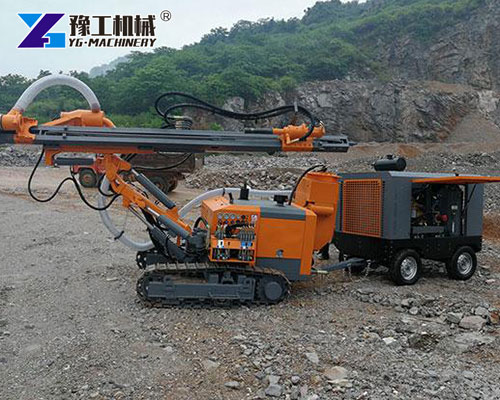

Split-Type DTH Rigs are drilling machines where the drilling part and the air compressor are not in the same body. They are separate. This gives users more choices. You can choose different air compressors and power systems based on your drilling needs.

These rigs are good for deep hole drilling, like water wells, mining, or geological work. Because the parts are separate, you can use a stronger compressor and work for a longer time.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Parameters of Split-Type DTH Rigs

Model	YGS100A	YGS153	YGS180	YGS300	YGS350
Total Weight	5.95T	3.8T	6.3T	6.8T	8T
Walking speed	2.5km/h	2.5km/h	2.5km/h	2.2/3.8km/h	4km/h 2km/h
Diesel tank capacity	85L	70L	85L	85L	225L
Shipping size	6500×2110× 2400mm	4640×1980× 2260mm	6600×2110× 2500mm	6600×2220× 2600mm	7600×2350× 2800mm
Drilling hole diameter	90-146mm	83-130mm	90-146mm	90-152mm	90-165mm
Power configuration	YCD4R22T-80	YC2108 33kw/2400rpm	YCD4R22T-80 55kw	YC4DK80-T302	YC4DK100-T304 73.5kw/2200rpm
Highest horizontal hole height	3.2m	2.8m	3.6m	3.25m	3.5m

Main Parts of Split-Type DTH Rigs

Split-Type DTH Rigs usually have:

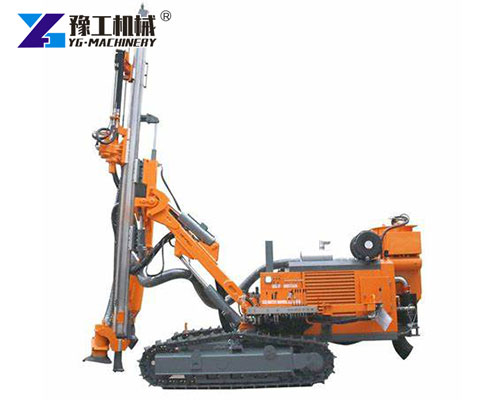

• Drilling Unit: Includes the drill head, hydraulic system, control panel, and crawler tracks.

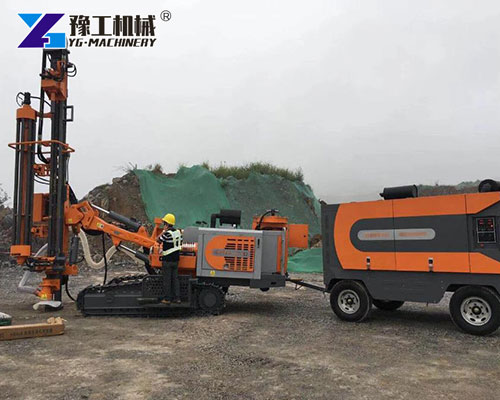

• External Air Compressor: You can choose different compressors depending on how much air you need.
• Power System: Usually runs on diesel. Some models also use electricity or hybrid systems.
• Drilling Tools: Works with many kinds of drill rods, DTH hammers, and drilling equipment.

This structure is easy to upgrade or replace each part when needed.

Advantages of Split-Type DTH Rigs

• More Airflow: External compressors give more air, good for deep and hard rock drilling.

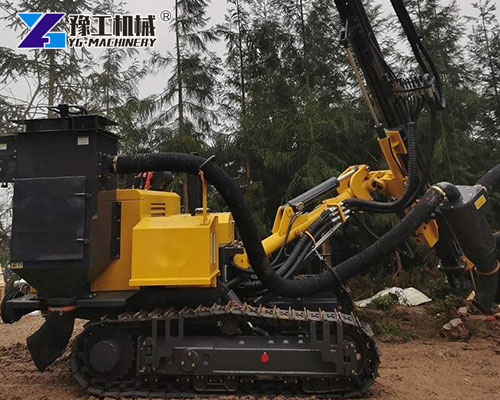

• Great for Deep Drilling: Can drill over 300 meters deep.
• Flexible Setup: Choose the right compressor and drill for each job.
• Strong and Durable: Can work in hard environments for many hours.

Many people use this rig for geological drilling, factory boreholes, and mining blasting holes.

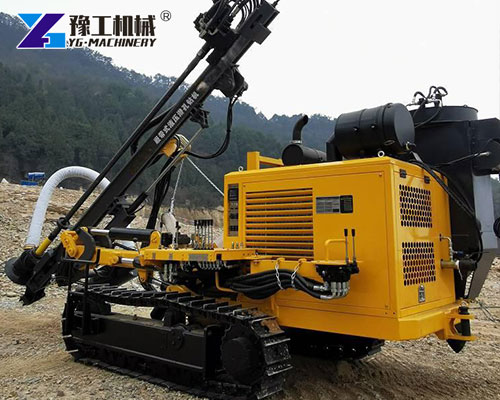

Where Can You Use a DTH Rig?

Split-Type DTH Rigs are useful for:

• Water Wells in big farms or cities
• Mining in hard rocks
• Foundation Drilling for bridges, wind turbines, and tunnels
• Oil Pipelines and Utilities that need deep holes
• Soil Testing before building roads or buildings

It also works well in mountain areas where trucks and big machines can’t go easily.

Split DTH Rigs Performance

These rigs can:

• Drill from 300m to 500m deep
• Adjust air pressure based on job needs
• Change drill rods and parts easily
• Move on rough ground with crawler tracks
• Use air filters to keep the compressor clean

They are very good for big drilling jobs that need strong and long-lasting performance.

Maintenance & Operating Costs

Even though setup takes a little more time, Split-Type DTH Rigs help save money in the long run:

• Easy to fix: You can repair or change one part at a time
• Upgradable Compressor: Change to a better compressor when needed
• Fuel Saving: Many diesel engines use fuel smartly
• Less Work Delay: Replace broken parts quickly and keep working

They also match many types of DTH drilling machines, which makes it easy to find spare parts.

Before You Start Using It

• Make sure the drilling machine and compressor work well together
• Check the hydraulic system, drill bit, and air pressure
• Plan your work area so that hoses between machines don’t get in the way
• Use standard drill tools for better results

These rigs are better for people who have experience in drilling and want more control and power.

FAQ – Split-Type DTH Rigs

• Q1: How deep can it drill?
  Some models can drill over 400–500 meters, depending on the rock and the compressor.
• Q2: Can I use different compressor brands?
  Yes. It works with many kinds of air compressors.
• Q3: Can I use it in remote places?
  Yes. If you have a mobile power source, it works well.
• Q4: Can it drill soil and rock?
  Yes. With the right tools, it can drill both soil and hard rock.
• Q5: How do you move it?
  You can use a truck or trailer. The drilling unit has tracks and can move on rough ground.
