Steel Pipe Bender

What Is A Steel Pipe Bender?

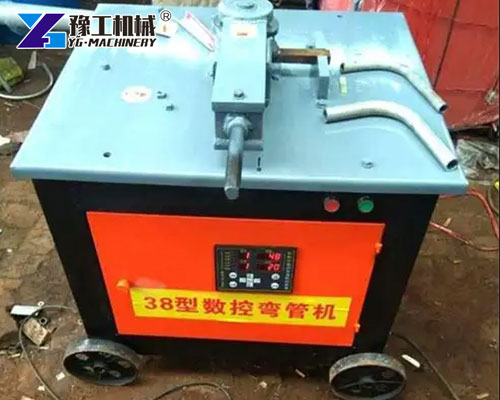

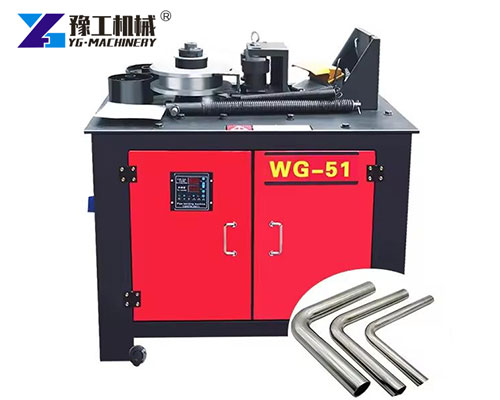

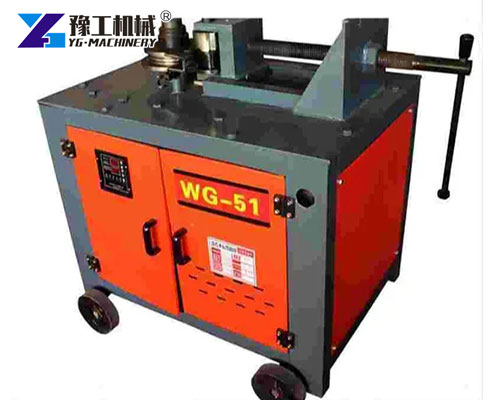

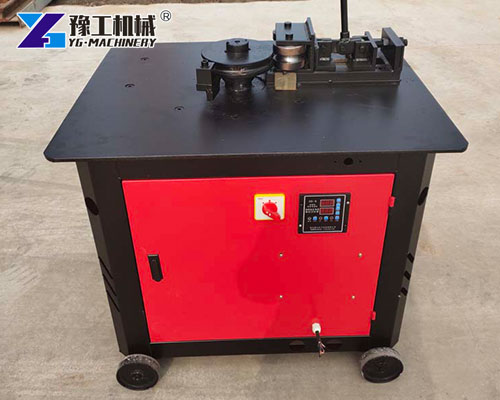

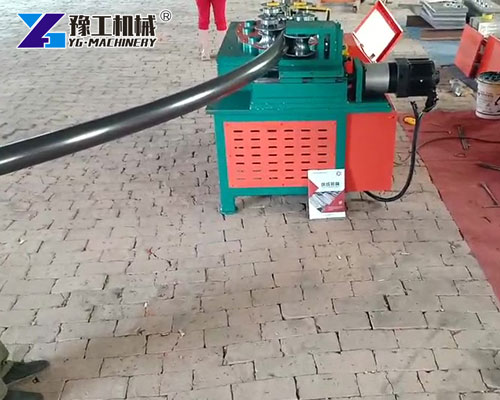

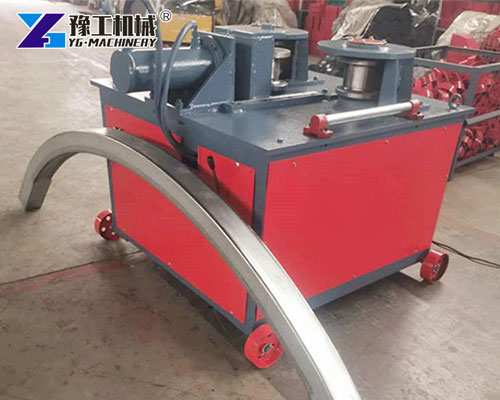

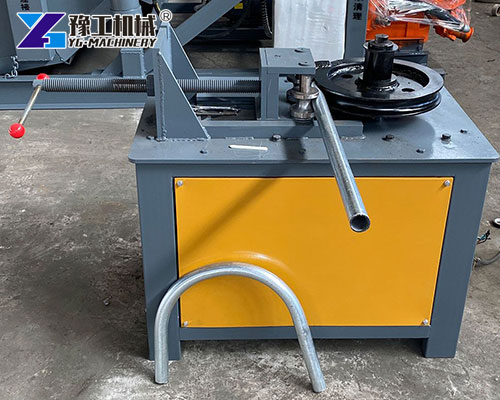

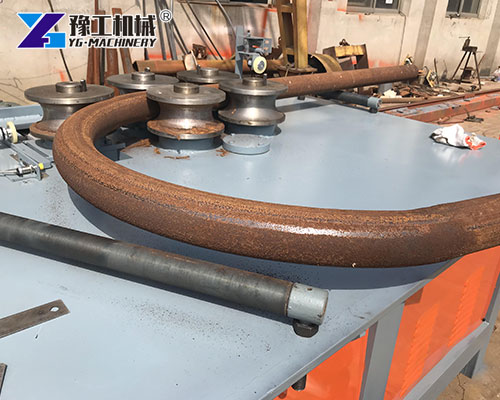

A Steel Pipe Bender is a machine built to bend thick steel pipes and tubes into required shapes or angles. It handles large-diameter pipes that would be hard to shape manually. Metalworking shops, fabrication workshops, and construction teams often use it for structural frames and pipelines.

Compared with a hydraulic pipe bender or simple bench bender, this machine can handle heavier loads and larger sizes with greater stability.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Parameters of the Steel Pipe Bender

Model	YG-WG28	YG-WG38	YG-WG51	YG-WG76	YG-WG100	YG-WG150
Type	Electric Type/Hydraulic Type				Hydraulic Type	Hydraulic Type
Bending angle	0-180°
Apply for the diameter of the steel pipe	10-26mm	16-38mm	16-51mm	16-76mm	25-100mm	25-133mm
Power/voltage	2.2kw/380v	3kw/380v	3kw/380v	4kw/380v	7.5kw/380v	11kw/380v
Main shaft rotary speed	20r/min	16r/min	8r/min	8r/min	9r/min	9r/min
Bending angle quantity	10	10	10	10	9	9
Applicable pipe thickness	≤2mm	≤3mm	≤3mm	≤3mm	≤3mm	≤5mm
Machine size	80*65*90cm	90*80*100cm	90*80*100cm	100*90*110cm	180*200*135cm	190*210*140cm
Machine weight	180kg	260kg	300kg	350kg	1200kg	1500kg
Remark: Electric type means semi-automatic, Hydraulic type means full automatic (Mainly difference in working efficiency)

Key Features Of Metal Tube Bending Machine

The metal tubing bender is designed for performance and stability. Important features include:

• Hydraulic Driving System: Smooth and powerful bending force.
• Strong Frame: Holds pipes without motion or bending error.
• Variable Speed Control: Adjust bending speed via foot pedal or switch.
• Pipe Range: Handles Ø10–Ø133 mm steel pipes.
• Angle Scale: Visible dial for accurate bend angle tracking.
• Quick Die Change: Fast swapping of bending dies for different pipe sizes.

These features make it ideal for tasks needing strong force and stable bending.

Best Use Cases For Steel Pipe Bender

The pipe-bending equipment is useful in many fields:

• Construction Framework: Bending structural steel pipes.
• Scaffolding and Railings: Creating Curved Safety Frames.
• Truck & Trailer Manufacturing: Tube frames and supports.
• Oil & Gas Pipelines: Field bending of lines on-site.
• Bridge & Handrail Work: Smooth curved pipe railings.

Works well for any metalwork where pipe shape is key.

Hydraulic Pipe Bender Advantages

Compared to manual benchtop tools, the hydraulic pipe bender gives:

• Greater bending force with less effort
• Suitable for thicker and larger pipes
• Speedy production cycles
• Safety features like overload protection
• Precise angle control

This makes it a reliable choice for high-volume shops.

Price Range Of Steel Pipe Bender

The steel pipe bender price depends on:

• Frame strength and size
• Hydraulic power unit horsepower
• Available bending dies
• Automated vs. manual operation
• Included safety guards or accessories

YG Machinery offers transparent prices with clear specs and no hidden fees.

After-Sales Support For Metal Tube Bender

To support your machine use, YG provides:

• One-year warranty for hydraulic parts
• Imported seals and hoses are stocked
• User manuals and operation videos
• Technical service via phone or remote
• Training when buying multiple units

We make sure your pipe bender works well and safely.
