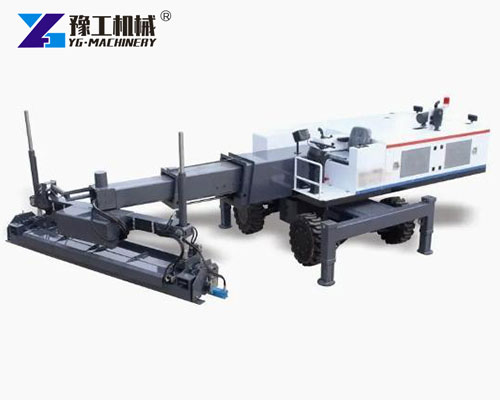

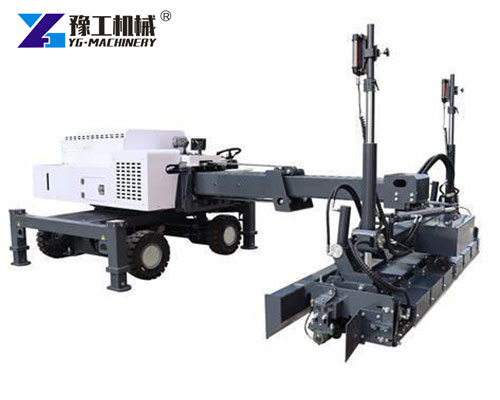

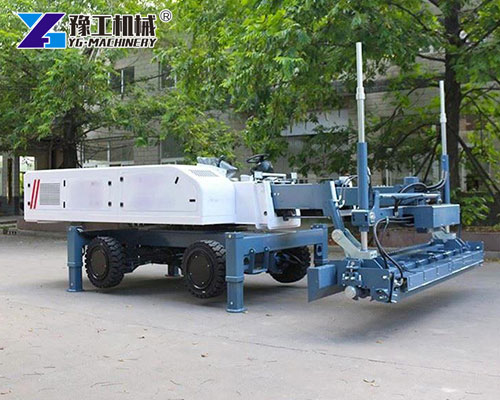

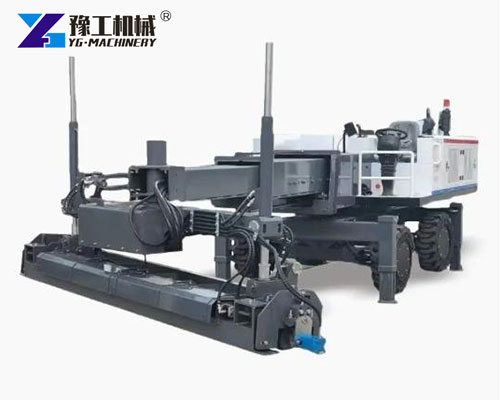

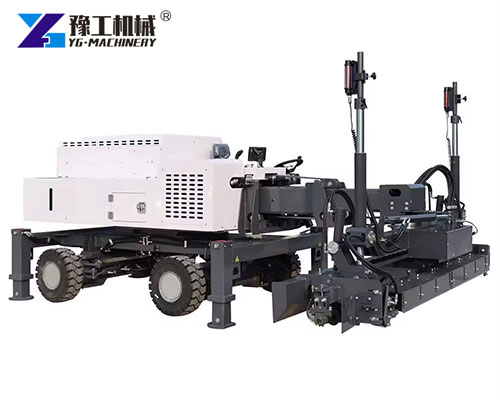

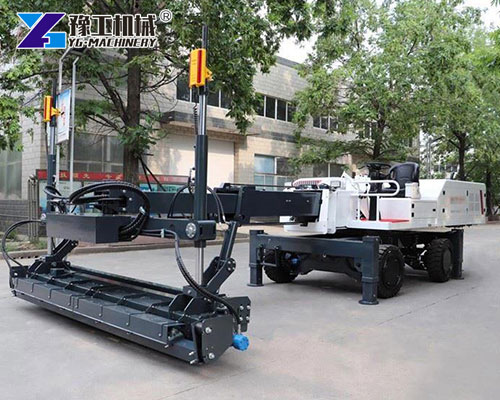

The Telescopic Boom Laser Screed is a specialized concrete leveling machine equipped with a hydraulic boom arm. Designed for large-scale and irregular work areas, this machine allows operators to extend the screeding head far beyond the base of the equipment, enabling precise placement of concrete even in difficult-to-access areas.
With its long horizontal reach, this boom-type laser screed is perfect for bridge decks, tunnels, wide-span industrial slabs, and other scenarios where maneuverability and range are critical. The built-in laser leveling system ensures precise slab height control, while the robust hydraulic system provides reliable performance on demanding job sites.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Telescopic Boom Laser Screed Parameters
| Engine Type | YANMAR 4TNV98T-ZCNISC |
| Characteristic | Water-cooled Diesel, 4 Stroke,4 Cylinder |
| Cooling System | Closed Cooling Liquid |
| Power | 63KW / 2500Rpm |
| Fuel Consumption | <=254g/kw.h |
| Fuel Tank Volume | 140L |
| Engine Oil Volume | 8.9-10.6L |
| Screed Width | 4M |
| Telescopic Boom | 6M Long, 360° Rotation |
| Screed Swing Angle | 120 Degrees. |
| Paving Mode | Hydraulic Screw Conveyor Paving |
| Paving Thickness | 5-45CM |
| Leveling Precision | 1.5MM |
| Vibrating System | Hydraulic Eccentric Vibrating Beam |
| Excitation Force | 3000N |
| Vibration Frequency | 60HZ |
| Configuration | Laser Emitter, Laser Receiver, Tripod |
| Laser Control System | Microcomputer Laser Scanning |
| Applicable Scope | Flat Surface, Slope/Double Slope (three-dimensional) |
| Drive Type | Full Hydraulic 4-Wheel Drive |
| Mini turning radius | 2.9M |
| Hydraulic Oil Tank | 200L |
| Tyre | Solid Puncture-proof & Anti-skid Tyre |
| Walking Speed | 0-10 KM/H (Double speed switch) |
| Working Speed | 24 sq m/Min |
| Speed Control | Stepless Speed Change. |
| Turning Mode | 2 Wheels/ 4 Wheels/ Crab Turn. |
| Power | External Motor |
| Theoretical Flow | 20m³/h |
| Rated Pressure | 7kgs/cbm |
| Outline Dimension | 5835*4470*2630 mm |
| Net Weight | 8500Kgs |
Key Features of Boom-Type Laser Screed
- The hydraulic telescopic boom arm extends the screed head reach
- Remote or in-cab control system for flexible operation
- Dual-axis laser receivers maintain slab elevation
- 360° rotation platform (available on select models)
- Vibration-integrated screed plate for enhanced concrete compaction
- Durable high-strength chassis and frame for stability
Advantages of Using a Telescopic Boom Laser Screed
Using a Telescopic Boom Laser Screed offers several advantages that directly improve jobsite performance:
- Extended Reach
- Perfect for complex jobs with rebar, beams, or embedded fixtures
- Reduces the need for repositioning the machine
- Accurate Laser Leveling
- Automatically adjusts the screed height in real-time
- Provides smooth, flat, and level surfaces
- Time & Labor Savings
- Covers a larger area per pass
- Requires fewer operators than manual leveling
- Versatile Performance
- Operates effectively over edges, obstacles, or elevation changes
- Ideal for non-standard and wide-span areas
Applications of Boom Laser Screed Machine
The Boom Laser Screed Machine is suited for a wide variety of construction environments. It’s especially effective in:
- Large factory floors and warehouses
- Bridge deck concrete pouring
- Tunnel slabs
- Multi-bay industrial zones
- Pre-stressed slab foundations
For indoor or hard-to-reach areas, the Remote-Controlled Laser Screed offers unmatched flexibility.

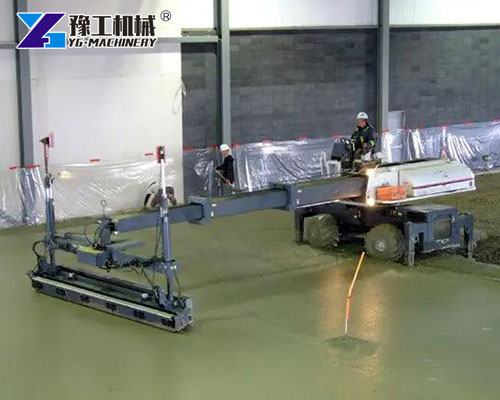

How the Telescopic Boom Laser Screed Works
The machine uses a laser transmitter to establish a reference plane. The telescopic boom arm extends and positions the screed head above the wet concrete. Then, the following process takes place:
- The laser receiver on the screed head detects height changes.
- The hydraulic system adjusts the screed head automatically.
- Vibration and levelling blade smooths and compacts the surface.
- The operator can rotate or extend the boom to cover the next area.
This process ensures consistent results across large areas without manual measurement or adjustment.
How to Operate a Telescopic Boom Laser Screed
To use the machine effectively, follow these steps:
- Step 1: Position the machine at the edge of the pour zone.
- Step 2: Power up the laser transmitter and calibrate the system.
- Step 3: Extend the boom arm to the working position.
- Step 4: Begin leveling using the remote control interface.
- Step 5: Monitor and adjust the screed head if necessary.
- Step 6: Retract the boom, reposition, and repeat the process.
Operators should be trained briefly on the control system, which is intuitive and designed for field use.
Why YG Machinery?
YG Machinery is a trusted manufacturer of concrete leveling machines with strong R&D and production capabilities. Our telescopic boom laser screeds are built to international quality standards, offering exceptional durability, precision, and versatility.
- OEM customization for reach and power
- In-stock models for fast delivery
- 24/7 technical support and maintenance guidance
- Used globally in infrastructure, construction, and industrial projects
FAQ
- What Is a Telescopic Boom Laser Screed?
It’s a boom-type laser screed with a long, extendable arm that allows the machine to reach across obstacles, rebar, or trenches without repositioning. - Where Is This Type of Screed Commonly Used?
These are often used in bridge decks, elevated slabs, or jobs with embedded equipment or post-tensioning cables. - How Long Is the Boom Arm?
The telescopic arm usually extends between 3 and 6 meters, depending on the model. It covers wide spans quickly and efficiently. - What Are the Main Benefits?
- Minimal repositioning
- Excellent reach
- Ideal for non-standard slab geometry
- Does It Require a Large Crew?
No. A boom screed typically needs one operator and one helper. The arm can be controlled either from the seat or by remote control, depending on the model.
