A vertical mast lift is an aerial work platform designed to safely lift workers and tools to high areas. It features a vertical mast structure that supports a small platform, making it compact and easy to maneuver. Unlike large aerial lifts, this equipment is lightweight and suitable for narrow spaces where flexibility is key.
This lift is widely used in various industries because of its simple operation and high safety. Whether you need to reach high shelves in a warehouse or repair equipment in a factory, a vertical mast lift provides a stable, efficient solution for height-access tasks.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Technical Specifications Of Vertical Mast Lift
YG’s vertical mast lift series covers multiple models to meet different work needs. Here are the core technical parameters for common models:
Max.Working Height
11.2m
Max.Platform Height
9.2m
Max.Horizontal Reach
3.0m
Up and Over Height
7.89m
Overall Length
2.53m
Overall Width
1.0m
Overall Height (Stowed
1.99m
Wheelbase
1.22m
Guardrail Height
1.1m
Platform Dimension
0.62m*0.87m
Ground Clearance (Stowed)
70mm
Ground Clearance(Raised)
19mm
Loading Capacity
200kg
Occupants
2
Tuming Radius(Inside/Outside)
0.23/1.65m
Turret Rotation
345°
Jib Movement
130°
Travel Speed (Stowed)
4.5km/h
Travel Speed (Raised)
0.5Km/h
Up/Down Speed
42/38s
Max.Working Slope
X-2.5°,Y-2.5°
Tyres
φ381*127mm
Driving Motor
24V/0.9Kw
Lifting Motor
24V/3Kw
Battery
24V/240Ah
Charger
24V/30A
Weight
2950Kg
All parameters are strictly tested to ensure stable performance. Each model comes with a detailed parameter manual for users to check before purchase.
YG’s vertical mast lift stands out with practical and user-friendly features that enhance work efficiency and safety:
Sturdy and Lightweight Structure: Made of high-strength aluminum alloy, the lift is durable yet lightweight. It can be moved easily, even in narrow corridors or small workshops.
Smooth Lifting System: Equipped with a high-quality hydraulic lifting system, the vertical mast lift rises and falls steadily without sudden jolts, protecting workers and equipment.

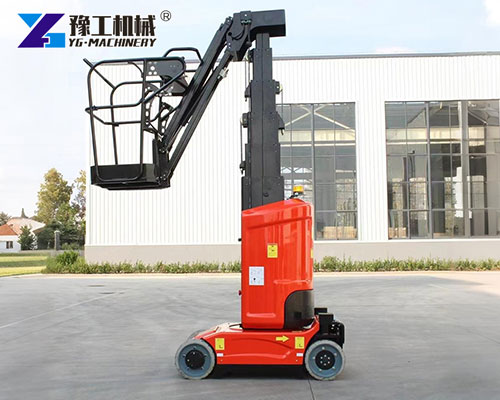

Safety Protection Devices: Includes an anti-slip platform, an emergency stop button, an overload alarm, and a falling protection system. All meet OSHA and CE safety standards.
Easy Operation: One-key lifting and lowering control, with a clear operation panel. Workers can master the use within a short training period.
Low Energy Consumption: The electric vertical mast lift uses a high-capacity lithium battery, supporting 8 hours of continuous work after a full charge. It saves energy and reduces operating costs.
These features make the lift suitable for long-term use in various complex environments, bringing convenience and safety to daily operations.
Application Scenarios Of Vertical Mast Lift
The vertical mast lift is a versatile aerial work platform that adapts to multiple industries and scenarios. Its flexibility and compact design make it a top choice for many businesses:

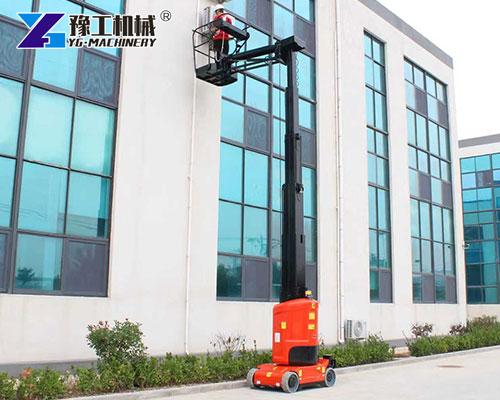

1. Industrial Vertical Mast Lift For Factory Use

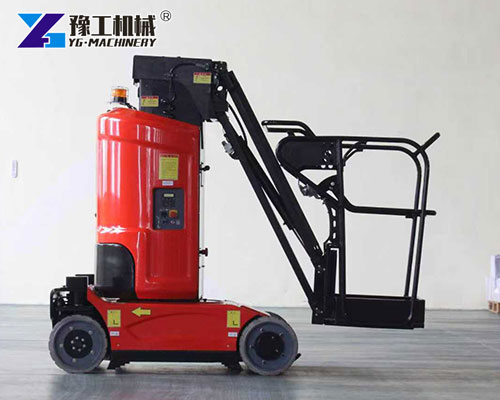

In industrial settings, the industrial vertical mast lift is widely used for equipment maintenance, production line debugging, and warehouse cargo stacking. It can move freely between narrow production lines, helping workers reach high machinery parts quickly.
2. Small Vertical Mast Lift For Sale In Commercial Areas
For commercial occasions like shopping malls, supermarkets, and exhibition halls, the small vertical mast lift for sale is the ideal choice. Its small size and low noise won’t affect customer flow or business operations. It’s often used for decoration, billboard installation, and shelf arrangement.
3. Single Mast Lift For Construction And Property Maintenance
The single mast lift is perfect for construction sites and property maintenance. It’s lightweight and easy to carry to different floors, suitable for indoor decoration, wall painting, and window cleaning.

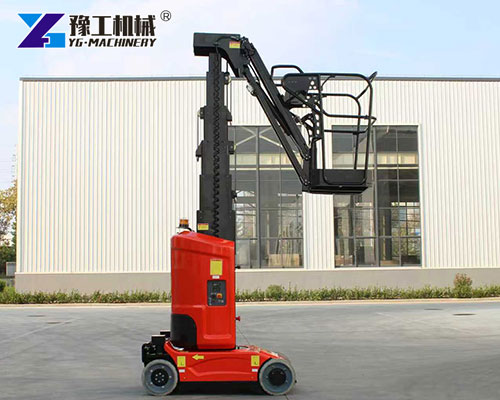

4. Electric Vertical Mast Lift For Indoor Tasks
Indoor environments like office buildings, hospitals, and data centers require clean and quiet equipment. The electric vertical mast lift produces zero emissions and low noise, making it suitable for these places. It’s often used for ceiling repair, lighting installation, and server maintenance.
How To Select The Right Vertical Mast Lift For Your Needs
Choosing the right vertical mast lift is crucial to ensure work efficiency and safety. Follow these steps to find the most suitable model:
Match By Working Height And Load Capacity
First, confirm your maximum working height. If you need to work at 6m, choose a model with a lifting height of 7-8m to leave a safe margin.
Calculate the total load, including workers and tools. If the total weight is 200kg, select a model with a load capacity of 250kg or more to avoid overload.
Adapt To the Working Environment
Indoor use: Prioritize the electric vertical mast lift. It’s quiet, emission-free, and suitable for closed spaces like workshops and shopping malls.
Outdoor use: Choose fuel-powered models. They have strong adaptability to harsh environments and don’t rely on power sockets.

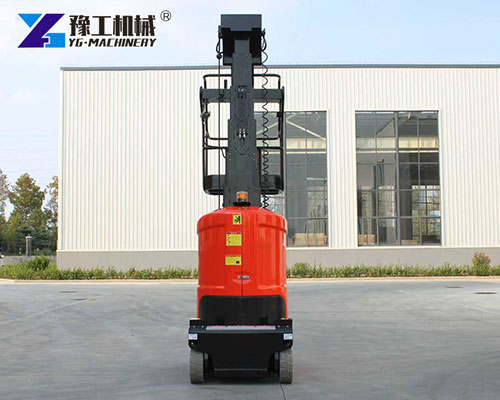

Narrow spaces: Select the single mast lift. Its slim structure can pass through doorways and narrow corridors easily.
Advantages Of Choosing YG Vertical Mast Lift
Choosing YG’s vertical mast lift means you get a reliable, high-quality product with comprehensive support. Here are the key advantages:
Strict Quality Control: All parts are sourced from well-known international brands. Each vertical mast lift undergoes 10+ quality inspections before leaving the factory to ensure stable performance.
Customizable Solutions: We offer customized services based on your specific needs. Whether you need to adjust the platform size, lifting height, or power type, our team can create a tailored plan.
Efficient After-Sales Service: We have a global after-sales network. Our 24/7 technical support team can solve your problems quickly. We also provide on-site maintenance and training services.
Cost-Effective Pricing: Compared with other brands, YG’s vertical mast lift has a more competitive price while maintaining high quality. It helps you reduce equipment investment costs.
YG’s vertical mast lift has been used by customers in more than 50 countries and regions. Here are some typical cases:
Industrial Case: Automotive Parts Factory
A leading automotive parts factory in Italy purchased 10 industrial vertical mast lifts from YG. Before using our products, the factory relied on scaffolding for equipment maintenance, which took 2-3 hours per task. After switching to our vertical mast lift, each maintenance task only takes 40 minutes. The factory’s annual maintenance efficiency increased by 50%, and labor costs decreased by 25%. The factory manager said, “YG’s vertical mast lift is easy to operate and very safe. It’s the best investment we’ve made this year.”
Commercial Case: Large Supermarket Chain
A supermarket chain in the UK bought 20 small vertical mast lifts for sale to maintain shelves and install promotional signs. The small size of the lift allows it to move freely between supermarket aisles without affecting customer shopping. The electric power design ensures no noise or emissions. The chain’s operation director commented, “The lift is very suitable for our daily operations. It saves us a lot of time and manpower.”
Construction Case: Residential Property Company
A property company in the US used YG’s single mast lift for residential building maintenance. The lift’s lightweight design makes it easy to carry to different floors via elevators. It’s used for window cleaning, wall repair, and air conditioning maintenance. The company’s maintenance team leader said, “The single mast lift is flexible and efficient. It has greatly improved our work speed and safety.”
Frequently Asked Questions (FAQs)
Q: How high can a vertical mast lift reach? A: Most models reach 6–14 m. Choose based on your highest task.
Q: Is a vertical mast lift safe for one person? A: Yes. It is designed for one or two persons with guard rails and safety locks.
Q: Can I use it outdoors? A: Some models are made for outdoor use. Pick a model with weather protection and a stable base.
Q: Do electric models need special chargers? A: They include on-board chargers. Check your site voltage (220V/380V) and add adapters if needed.
Q: How often should I inspect the lift? A: Follow the manufacturer’s checklist. Daily visual checks and monthly full inspections are standard.
Q: How to request a quote? A: Use the quick contact or request form on the YG website. Provide height, load, and job site info.
