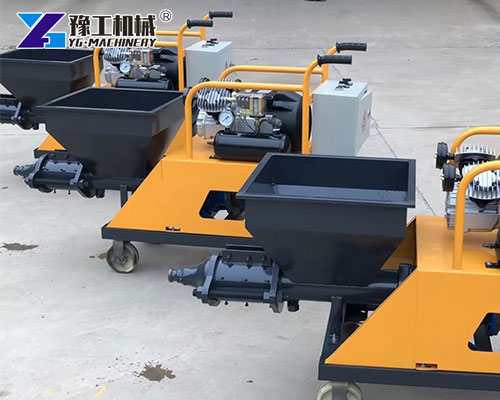

In mid-April 2025, we received an inquiry from a Mexican customer asking about the mortar spraying machines we sold. Our account manager, Mr. Wang, communicated with the customer. We sent the parameters, pictures, videos, and factory videos of the mortar spraying machine to the customer. The customer expressed great satisfaction. In the end, the customer decided to order 2 mortar spraying machines.
WhatsApp/WeChat/Phone: 86 138 3715 9132

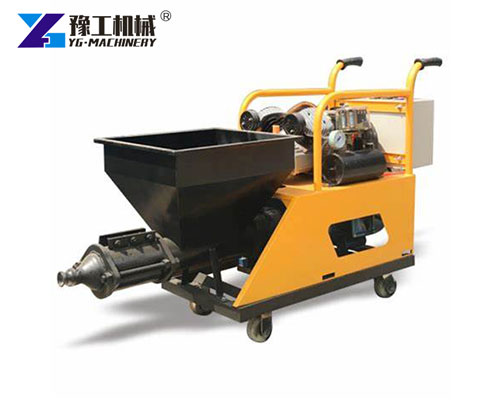

Parameters of Mortar Spraying Machine for Sale
Model | YG-311 | YG-318 | YG-711 |
Capacity | 3m³/h | 3-5m³/h | 4-6m³/h |
Pressure | 3 Mpa | 3 Mpa | 3 Mpa |
Material Ratio | 0.7-1:1:3 (Water, Ash, Sand) | 0.7-1:1:3 (Water, Ash, Sand) | 0.7-1:1:3 (Water, Ash, Sand) |
Voltage | 220V/380V 50Hz | 380V three-phase 50Hz | 380V three-phase 50Hz |
Main Motor Power | 4kw | 7.5kw | 7.5kw |
Particle Size | Below 4mm | Below 8mm | Below 8mm |
Convey Distance | Horizontal 30m | Horizontal 50m | Horizontal 50m |
Vertical 20m | Vertical 30m | Vertical 30m | |
Volume | 60L | 80L | 100L |
Air Consumption | 0.3m³/min | 0.3m³/min | 0.3m³/min |
Weight | 200kg | 320kg | 340kg |

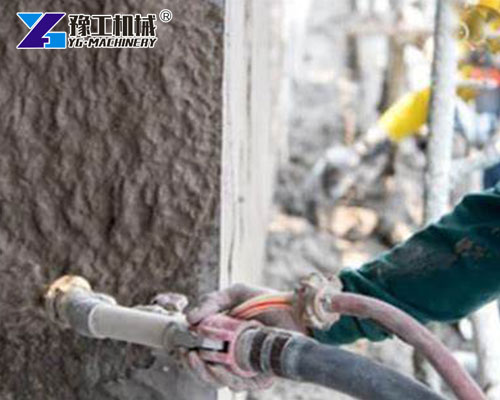

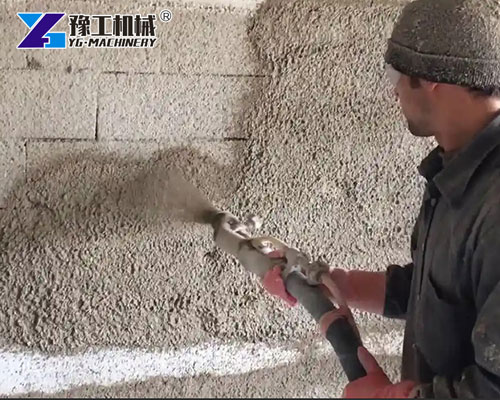

Application of the Mortar Spraying Machine in Mexico
The construction sector in Mexico is expanding rapidly, with increasing demand for faster and more cost-effective building solutions. The Mortar Spraying Machine has become an essential tool across residential, commercial, and industrial projects in the region. Its ability to apply uniform layers of mortar in a short time makes it particularly valuable in areas with high labor costs or tight project timelines.
Key areas of use include:
- Urban Housing Projects: Accelerates plastering of large wall surfaces.
- Commercial Buildings: Reduces project durations and ensures quality finishes.
- Public Infrastructure: Bridges, tunnels, and schools benefit from efficient coating applications.
- Rural Development: Enhances construction in regions where skilled labor is limited.
Thanks to its compact size and high mobility, the machine is suitable for both large-scale city projects and remote rural sites in Mexico.
Key Features of the Cement Spray Plaster Machine
The YG Cement Spray Plaster Machine is engineered with several key features designed to optimize performance and user experience:
- High-Efficiency Pump System: Ensures a consistent and even flow of mortar for uniform application.
- Adjustable Spray Volume: Allows operators to control the output based on the specific requirements of the project.
- User-Friendly Controls: Simple and intuitive operation minimizes training time and maximizes productivity.
- Durable Construction: Built with high-quality materials to withstand the rigors of construction sites.
- Easy to Clean and Maintain: Designed for quick and efficient cleaning, reducing downtime and maintenance costs.


Benefits of the Mortar Spraying Machine
Using a Mortar Spraying Machine provides a range of benefits that improve project outcomes and lower overall construction costs. Here’s why contractors in Mexico and beyond are adopting this technology:
- Increased Productivity: Sprays mortar faster than manual troweling.
- Labor Savings: Reduces the number of workers needed on-site.
- Consistent Quality: Achieves a smooth, even finish with minimal rework.
- Reduced Material Waste: Precision spraying lowers spillage and overuse.
- Improved Safety: Limits worker fatigue and lowers exposure to repetitive motion.
Common Questions About Mortar Spraying Machines
Understanding the specifics of a Mortar Spraying Machine is essential for making the right investment. Here are some frequently asked questions:
- What types of mortar can be used with the Mortar Spraying Machine?
The YG Mortar Spraying Machine is compatible with various types of mortar, including cement mortar, lime mortar, gypsum plaster, and insulating plaster. The specific model and its pump capacity may influence the optimal type and consistency of the material. - What is the spraying distance and thickness achievable with the machine?
You can determine the maximum spraying distance and achievable thickness according to the model of the Mortar Spraying Machine, the type of mortar you use, and the air pressure (if applicable). Refer to the product specifications for detailed information. - How much maintenance is required for a Mortar Spraying Machine?
Regular cleaning after each use is crucial to prevent clogging and ensure optimal performance. Periodic inspection of hoses, nozzles, and pump components is also necessary. Refer to the product manual for detailed maintenance schedules and procedures. - What power source is required to operate the Mortar Spraying Machine?
People use electricity to power most Mortar Spraying Machines, and they need to provide a suitable power supply on the job site. Some larger industrial models may require three-phase power. Check the product specifications for the specific power requirements. - Is training required to operate the Mortar Spraying Machine effectively?
Although the controls are generally easy for users to understand, we recommend that operators receive proper training on setup, operation, cleaning, and maintenance. This will help you use the Cement Spray Plaster Machine safely and efficiently and achieve the best results. YG provides comprehensive training materials and offers support.
