A contractor in Mexico ordered a Rebar Spiral Bending Machine from YG Machinery, received it successfully, put it into production, and reported strong satisfaction with the machine’s performance and efficiency.
Project Background And Site Limitations
The buyer is a construction contractor that focuses on foundation pile reinforcement cages. Their projects require many spiral cages with stable size and high strength. However, their real situation was not ideal.
Local Challenges
- Manual spiral forming labour cost kept rising each year
- The infrastructure project deadline was tight
- The workshop space was small and could not hold large equipment
Technical Requirements
- Coil diameter range: 300–1200 mm
- Rebar diameter: 8–12 mm
- Power supply limit: 220V / 60Hz
- Budget limit with ROI expectation within 12 months
The client clearly stated they did not want the cheapest machine. They wanted a stable solution that could work every day. This realistic mindset shaped the whole purchasing process.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Rebar Spiral Bending Machine For Sale Search Journey
Instead of contacting suppliers directly, the client searched Google for Rebar Spiral Bending Machine for Sale. This shows how modern buyers act: they research first, compare later.
Their evaluation process included:
- Checking supplier cases
- Watching machine test videos
- Asking about spare parts availability
- Confirming technical support response time
After sending the requirements, our product manager studied the project drawings and steel specs. Only then did we recommend a suitable model. We also showed our spare parts stock system and support process, which removed their biggest concern — overseas after-sales service.
Spiral Rebar Bending Equipment Matching Analysis
The selected spiral rebar bending equipment was not the largest model. It was chosen because it matched the real site conditions.
Key Matching Points
- Compact frame design for limited workshop space
- Adjustable spiral pitch for different cage designs
- Stable feeding rollers for smooth forming
- Simple control panel for fast learning
Realistic Limitations Explained To Client
- Rebar must be straight before entering the machine
- Steel quality must be consistent
- The operator needs a short training period
By explaining limits early, the client avoided wrong expectations. This is very important for long-term cooperation.

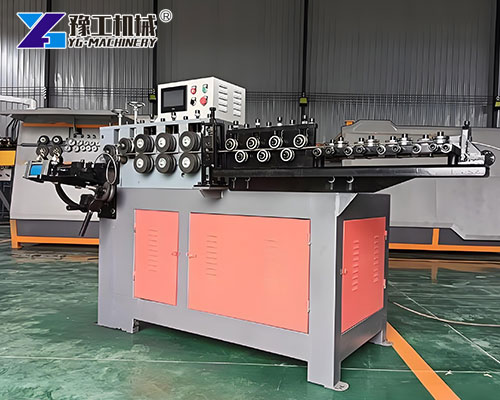

Construction Rebar Processing Machine Recommended Specifications
The recommended construction rebar processing machine had the following configuration:
| Parameter | YG 8-12 |
| Steel Bar Diameter (mm) | 8–12 |
| Ring Diameter (mm) | 50–1500 |
| Total Power (kW) | 7 |
| Speed (m/min) | 16–25 |
| Error (mm) | ±0.2 |
| Dimensions (m) | 1.55×0.8×1.3 |
| Weight (kg) | 640 |
This configuration was selected because:
- It covered all cage sizes used in their project.
- It matched their power supply limit.
- It balanced performance and budget.
The machine was not over-configured. This helped reduce cost and shorten delivery time.
Delivery Process And Site Implementation
The delivery stage showed the supplier’s real service strength.
Production Timeline
- Manufacturing period: 12 working days
- Testing and calibration: 2 days

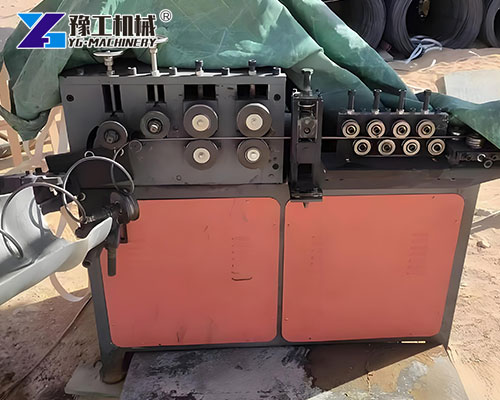

Before Shipment Confirmation
- Full operation test video sent to the client
- Spiral forming accuracy measurement shown
- Control panel parameter demonstration

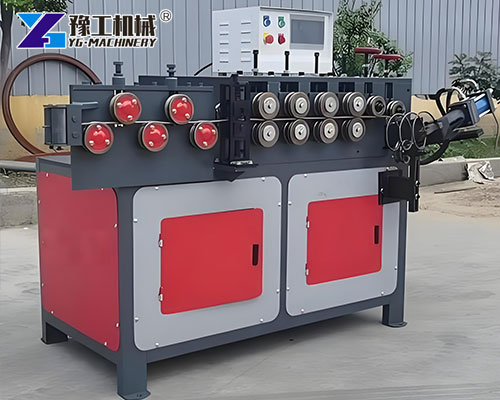

Export Packaging
- Steel frame reinforcement
- Moisture-proof film wrapping
- Shock-absorbing base
Shipping Route
Factory → Chinese port → sea freight → Mexican port → local truck delivery
Total transit time: about 32 days
Remote Commissioning Support
- Live video guidance with an engineer
- Digital operation manual
- Preset parameters based on client drawings
Because parameters were preset, the machine could run within one hour after installation.

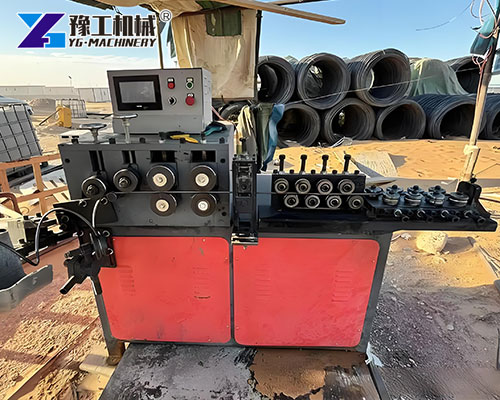

Rebar Spiral Forming Machine Real Production Feedback
After installation, the client tested the rebar spiral-forming machine in actual production. They compared data with their previous manual forming method.
Measured Results
- Hourly output increased by 180%
- Labour cost reduced by 60%
- Material waste decreased significantly
Unexpected Benefits
- Cage sizes became more standardised
- Project scheduling became easier
- Worker fatigue reduced
The contractor said the biggest change was stability. Manual forming often produced uneven spirals. The machine made every coil consistent.
The Rebar Spiral Bending Machine became a core tool in their workshop within the first month.
Problems Encountered And Solutions
No real project runs perfectly from day one. The first week revealed two issues.
Problems
- Incorrect parameter setting caused pitch deviation
- Local operators were unfamiliar with automation
Solutions Provided
- Remote recalibration support from an engineer
- Step-by-step training video
After the adjustment, production returned to normal. This experience helped the client team learn machine logic faster.

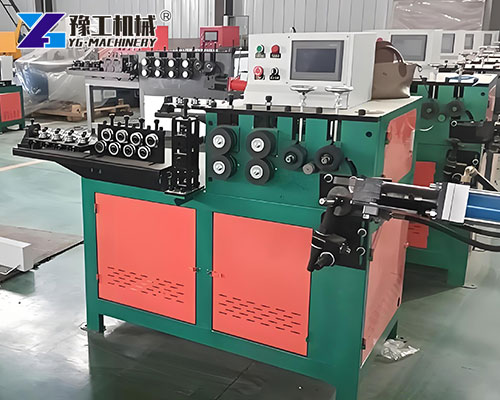

Rebar Bending Machine Supplier Manufacturing Strength
Choosing a rebar bending machine supplier is not only about price. Buyers must evaluate production ability and the service system.
YG Manufacturing Advantages
- Years of experience producing rebar machines
- Strict factory testing before shipment
- Custom voltage and specification options
- Stable spare parts supply
Export Service System
- Packaging design for long-distance transport
- Documentation support for customs clearance
- Fast response technical team
Because of these factors, the client said they felt confident placing the order even before shipment.
The Rebar Spiral Bending Machine is now used daily on their project and continues to run smoothly.
