CNC Rebar Bending Machine

What Is A CNC Rebar Bending Machine

A CNC Rebar Bending Machine is a machine that bends steel bars into different shapes. It uses computer controls to bend rebar accurately. It can make circles, squares, hooks, or stirrups. This machine helps construction workers save time and get perfect shapes for building projects.

WhatsApp/WeChat/Phone: 86 138 3715 9132

CNC Rebar Bending Machine Parameter:

Model	YG-1	YG-2	YG-3	YG-4
Single wire(mm)	Round steel 4-10mmDeformed steel bar 4-8mm	Round steel 4-12mmDeformed steel bar 4-10mm	Round steel 5-14mmDeformed steel bar 5 -12mm	Round steel 4-12mmDeformed steel bar 4-10mm
Double wire(mm)	Round steel 4-6mmDeformed steel bar 4-6mm	Round steel 4-8mmDeformed steel bar 4-8 mm	Round steel 5-10mmDeformed steel bar 5 -10mm	Round steel 4-8mmDeformed steel bar 4-8mm
Max bending angle	±180°	±180°	±180°	±180°
Center pin diameter	16、18、20	16、18、20	/	16、18、20
Maximum towing speed	60m/min	60m/min	110m/min	110m/min
Maximum bending speed	800°/sec	800°/sec	1000°/sec	800°/sec
Machine size	2600*800*1700mm	3280*1000*1700mm	3850*1200*2200mm	3660*1110*1700mm
Device color	Yellow(customized)	Yellow(customized)	Yellow(customized)	Yellow(customized)
Pieces Processed	≤2	≤2	≤2	≤2
Air circuit system pressure	≥0.8mpa	≥0.8mpa	/	≥0.8mpa
Total Power	14kw	20kw	32kw	23.5kw
Working temperature	-5°C~40°	-5°C~40°	-5°C~40°	-5°C~40°
Length accuracy	±1mm	±1mm	±1mm	±1mm
Angle accuracy	±1°	±1°	±1°	±1°
Average power	4.5KW/h	5KW/h	5KW/h	5KW/h
Total weight	1150KG	1350KG	2200KG	1550KG

Features Of The CNC Stirrup Bending Machine

The CNC stirrup bending machine has many great features:

• Bends rebar into many shapes
• Works automatically without much labor
• Saves time and cuts labor costs
• Makes accurate and repeatable bends

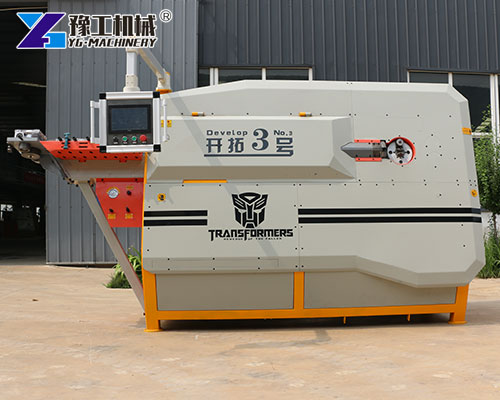

• Easy to use with touch screen controls
• Strong parts ensure long machine life

These features make it popular in construction work.

Application Fields Of The CNC Rebar Bender

The CNC Rebar Bending Machine is used in many places, like:

• Building houses
• Making bridges
• Roads and highways
• Tunnels and dams
• Rebar processing factories

It’s useful anywhere builders need bent steel bars.

How To Choose A CNC Rebar Bending Machine

When choosing a CNC Rebar Bending Machine, buyers should think about:

• The size of the rebar they often use
• The bending speed they need
• Types of shapes they want to make
• Factory space for the machine
• Power supply available
• Budget for buying the machine

If buyers know these points, they can pick the best machine for their projects.

User Guide For CNC Rebar Bending Machine

Using a CNC Rebar Bending Machine is easy:

1. Put rebar into the feeding system.
2. Choose the shape and size on the screen.
3. Press start to begin bending.
4. The machine bends and cuts rebar automatically.
5. Check the finished shapes.
6. Clean the machine after use.

Always wear safety gloves and glasses while using it.

Factors Affecting CNC Rebar Bending Machine Price

The CNC rebar bending machine price depends on many things:

• Machine size and capacity
• Type of motor and power
• Quality of materials used
• Extra functions like auto-cutting
• After-sales support

Checking these factors helps buyers find good machines at fair prices.

FAQs About The CNC Rebar Bender

Here are some common questions about the CNC Rebar Bending Machine:

• Q: Can it bend different sizes of rebar?
  Yes. It can bend from 5mm to 16mm rebar, depending on the model.
• Q: Is it hard to operate?
  No. It uses a touch screen and is easy to learn.
• Q: Can it make custom shapes?
  Yes. You can program it to make many different shapes.
• Q: How fast does it work?
  It can bend up to 25 times per minute.

CNC Rebar Bending Machine And Other Products From YG Machinery

Besides the CNC Rebar Bending Machine, YG Machinery also makes:

• Straightening and cutting machines
• Rebar cage welding machines
• Hydraulic rebar cutters

These machines help construction workers finish jobs faster and with better quality.
