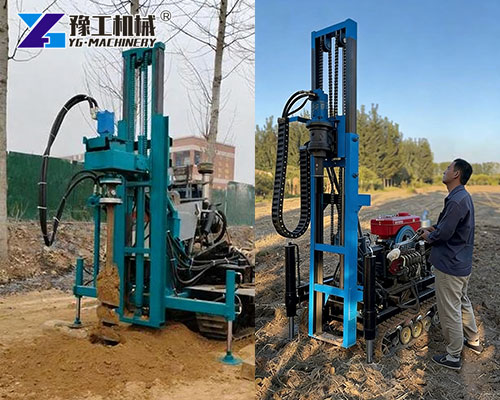

A Crawler Screw Pile Driver is a tracked foundation machine designed to install helical piles quickly and safely. It uses hydraulic torque to rotate screw piles into the soil instead of hammering them. This method reduces vibration, lowers noise, and improves installation speed. It is widely used in solar farms, fencing projects, and light construction foundations where efficiency and ground protection are important.

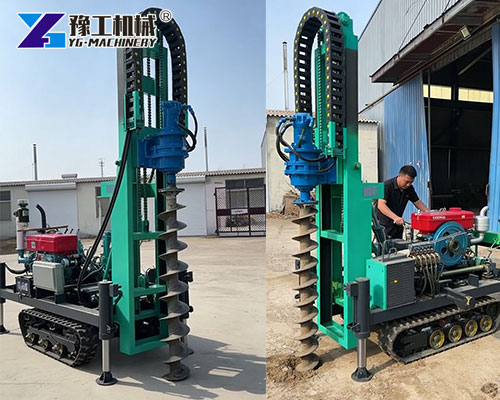

A Crawler Screw Pile Driver is a type of piling equipment mounted on a crawler chassis. It moves easily on soft soil, sand, farmland, and uneven terrain. The machine drives helical piles into the ground by rotation and steady downward pressure.
Definition And Working Principle
Unlike traditional impact pile drivers, this machine does not hit the pile from above. Instead, it rotates the pile into the soil using hydraulic torque. The spiral blade at the bottom of the pile cuts into the soil and forms a strong anchor underground.
This method offers:
Less ground disturbance
Better load capacity in many soil types
Faster installation speed
Safer operation near buildings
Because of these advantages, many contractors now choose this equipment over hammer-type machines.
Main Structural Components
A Crawler Screw Pile Driver usually includes:
Crawler Chassis – Provides strong traction and stability on rough terrain.
Hydraulic Power Head – Generates high torque to rotate the screw pile.
Vertical Mast – Keeps the pile aligned vertically during installation.
Power System – Diesel engine or electric motor to drive the hydraulic system.
Control Panel – Allows the operator to adjust torque and pressure easily.
Each part works together to ensure accurate and efficient piling.
WhatsApp/WeChat/Phone: 86 138 3715 9132
Hydraulic Screw Pile Machine Working System
As a hydraulic screw pile machine, this equipment relies on a powerful hydraulic torque rotation system.
Hydraulic Torque Rotation System
The hydraulic motor drives the rotation head. The rotation head connects directly to the screw pile. High torque ensures that the pile can enter dense soil layers without stopping.
Torque capacity can be adjusted according to soil conditions. This improves both safety and performance.
Downward Pressure And Rotation Mechanism
The machine applies steady downward pressure while rotating the pile. This combined movement allows the helical blade to cut into the soil smoothly.
Compared with impact driving:
No heavy vibration
Less noise pollution
Reduced damage to nearby structures
Soil Displacement Instead Of Compaction
The pile enters the soil by displacement rather than by hitting or compressing it. The spiral plate pushes soil outward and creates strong holding force.
This method is especially useful in:
Clay soil
Sandy soil
Mixed soil layers
Installation Efficiency Advantage
With proper operation, one pile can be installed in just a few minutes. A skilled operator can complete many piles per day. This improves project timelines and reduces labor costs.
Helical Pile Driver Machine Core Advantages
As a modern helical pile driver machine, this equipment provides many practical benefits for contractors.
High Mobility With Crawler Chassis
The tracked base allows smooth movement across:
Muddy ground
Slopes
Agricultural land
Construction sites with obstacles
The machine remains stable even on uneven terrain.

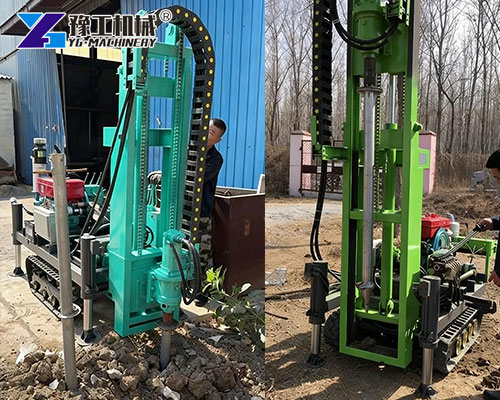

Strong Torque For Various Soil Types
The hydraulic system delivers stable torque output. It can handle soft soil as well as medium-density soil layers.
For harder soil, higher torque models are available.
Low Noise And Low Vibration
Because it uses rotation instead of hammering:
Nearby buildings are protected
Worker safety improves
Environmental impact is lower
This makes it suitable for urban or residential areas.

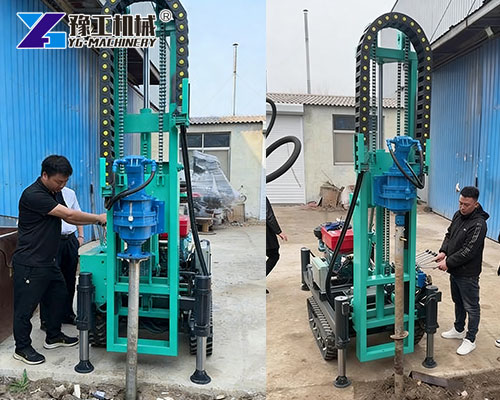

Compact Design For Narrow Spaces
A mini crawler pile driver is ideal for tight working areas such as backyards, small construction sites, or fence lines.
Its compact body allows easy transport and flexible positioning.
Labor And Cost Savings
The machine requires fewer workers. Fuel consumption is controlled. Maintenance is simple.
Over time, this reduces overall project cost and increases return on investment.

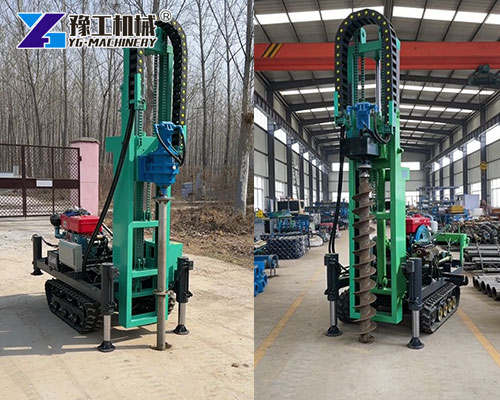

Our Crawler Screw Pile Driver is designed for durability and global construction needs.
Stable Crawler Chassis
The reinforced steel track system provides strong stability and long service life.
Reliable Hydraulic System
High-quality hydraulic components ensure steady torque and smooth operation.
Easy Operation And Maintenance
A simple control layout allows operators to learn quickly. Daily maintenance is convenient.
Rich Global Export Experience
Our machines are exported to Europe, North America, Southeast Asia, and other markets. We understand international standards and customer expectations.
Complete After-Sales Support
We provide:
Technical guidance
Spare parts supply
Online troubleshooting support
Installation assistance
This ensures long-term machine reliability and customer satisfaction.
