Dry Ice Pelletizer Machine

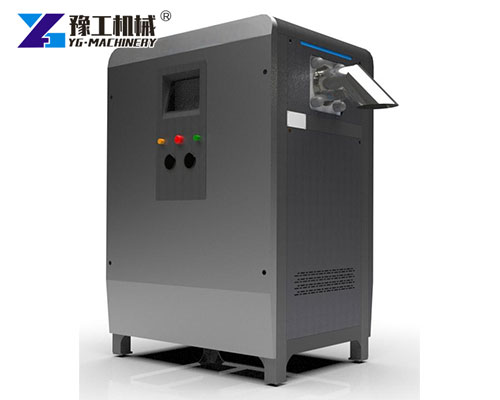

Dry Ice Pellet Machine for Sale
Dry Ice Pellet Machine for Sale

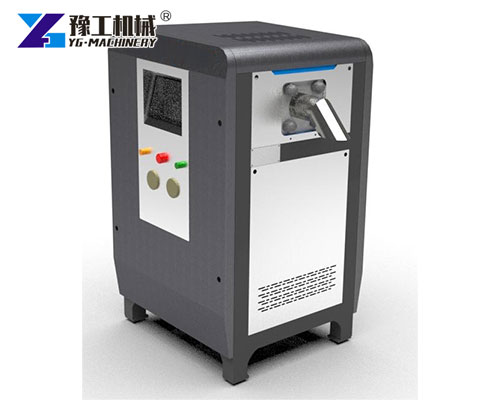

Dry Ice Pelletizing Machine
Dry Ice Pelletizing Machine

The Dry Ice Pelletizer Machine is used to compress liquid CO₂ into solid dry ice pellets. These pellets serve multiple purposes, from industrial cleaning to cold chain logistics. With demand for clean and residue-free processing increasing, more businesses are turning to dry ice solutions for efficient, eco-friendly results. YG’s pelletizer ensures rapid and uniform dry ice production, helping your operation stay clean and cold—literally.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Parameters of Dry Ice Pelletizer Machine

ModelYGX60YGX120YGX200
Dry ice SpecificationsΦ3-Φ19Φ3-Φ19Φ3-Φ19
Dry ice density1.3-1.451.3-1.451.3-1.45
Output per hour60kg120kg200kg
Work stress20KN20KN20KN
Motor power2.2KW3.7KW7.5KW
System pressure25Mpa25Mpa25Mpa
Working pressure20Mpa20Mpa20Mpa
Oil pumps60L/min100L/min150L/min
Dimensions700 * 640 * 1150mm1000 * 740 * 1450mm1420 * 1000 * 1750mm

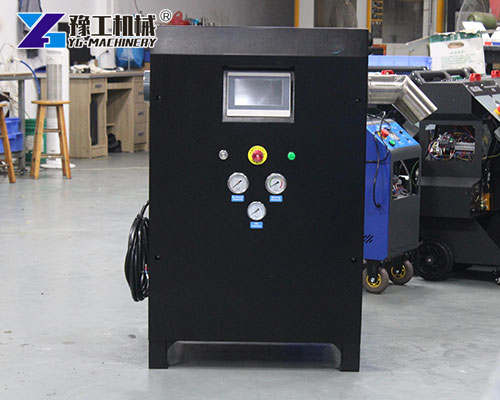

Dry Ice Pellet Machine
Dry Ice Pellet Machine

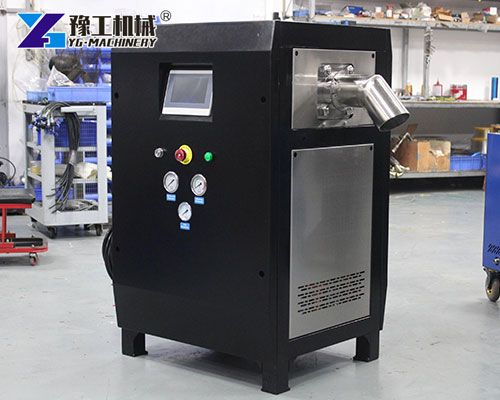

Dry Ice Pellet Equipment
Dry Ice Pellet Equipment

Applications of Dry Ice Pelletizing Machine

  • Dry Ice Blasting: Producing pellets for dry ice cleaning of machinery, molds, and production lines
  • Cold Chain Logistics: Preserving food, pharmaceuticals, and biological samples during transport
  • Medical and Lab Use: Storing temperature-sensitive samples or tissues
  • Industrial Cleaning: Removing paint, oil, and dirt without secondary waste
  • Event and Stage Effects: Creating fog and atmospheric effects for entertainment and events

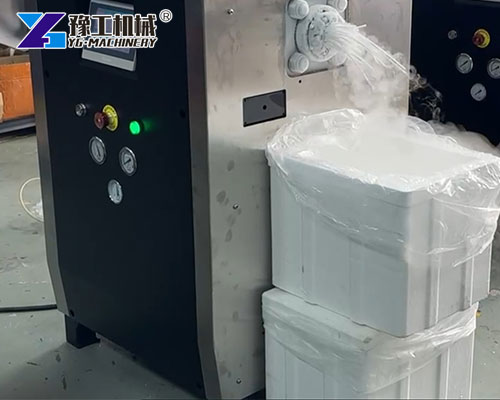

Using Dry Ice Pelletizer Machines
Using Dry Ice Pelletizer Machines

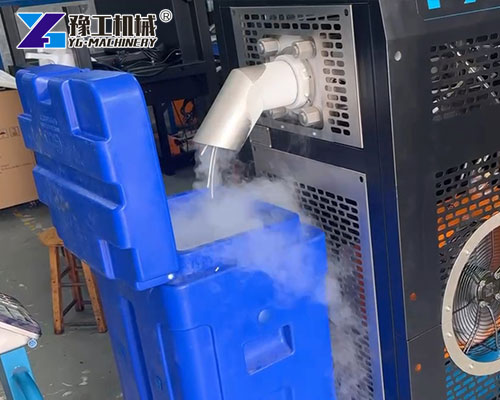

Application Of Dry Ice Pelletizer Machine
Application Of Dry Ice Pelletizer Machine

Case Example: Pairing With Dry Ice Cleaning Machine

One of the most significant applications of a Dry Ice Pelletizer Machine is its seamless integration with dry ice blasting equipment. By producing your dry ice pellets, you gain greater control over the blasting process and realize several key benefits:

  • Cost Savings: Eliminating the need to purchase pre-made dry ice can significantly reduce operational expenses.
  • On-Demand Availability: Produce the exact quantity of dry ice pellets needed, minimizing waste and ensuring a continuous supply for your blasting operations.
  • Customizable Pellet Size and Density: Some Dry Ice Pelletizer Machines allow for adjustments in pellet size and density to optimize blasting performance for specific applications.
  • Improved Efficiency: Having a readily available supply of fresh dry ice pellets ensures uninterrupted workflow during cleaning and surface preparation tasks.

For instance, a manufacturing facility using a YG Dry Ice Pelletizer Machine can directly feed the produced pellets into their YG dry ice blasting equipment for cleaning molds and machinery. This integrated approach streamlines operations, reduces costs associated with dry ice procurement, and enhances overall efficiency.

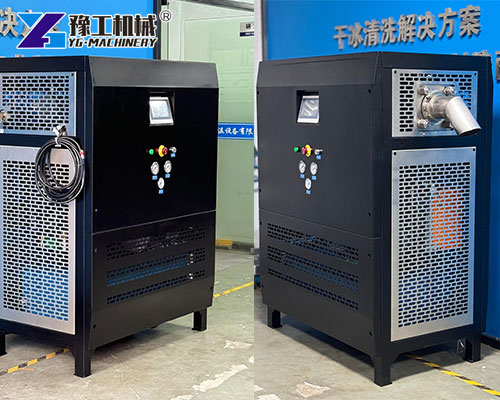

Dry Ice Pellet Making Machine
Dry Ice Pellet Making Machine

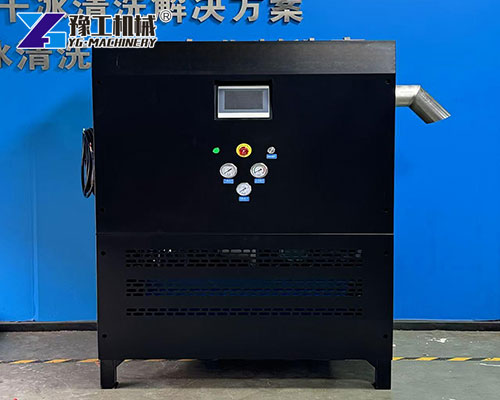

Dry Ice Pelletizer for Sale
Dry Ice Pelletizer for Sale

Key Features of YG Dry Ice Pellet Machine

  • Robust Construction: Built with high-quality materials for long-lasting durability and minimal maintenance.
  • Efficient Cooling System: Ensures rapid and consistent solidification of liquid carbon dioxide into dry ice pellets.
  • User-Friendly Interface: Simple and intuitive controls for easy operation and monitoring.
  • Adjustable Production Capacity: Models available with varying output capacities to meet different demands.
  • Safety Mechanisms: Incorporating multiple safety features to protect operators and ensure safe operation.
  • Compact Design: Optimizing space utilization within your facility.
  • Consistent Pellet Quality: Producing uniform and high-density dry ice pellets for optimal performance in various applications.

How The Dry Ice Pellet Machine Works

  1. CO₂ Tank Connection: The machine connects to a liquid CO₂ storage tank.
  2. Pressure Reduction: Liquid CO₂ is depressurized inside the machine’s chamber.
  3. Flash Freezing: The sudden drop in pressure converts liquid CO₂ to dry ice snow.
  4. Pellet Compression: A hydraulic or pneumatic piston compresses the snow into solid pellets.
  5. Pellet Output: The pellets are automatically extruded through a die plate.

This process allows for continuous and high-volume pellet production suitable for immediate use or storage.

Choosing YG as your partner for a Dry Ice Pelletizer Machine means investing in reliable technology that will streamline your operations and provide a consistent supply of high-quality dry ice pellets for your diverse applications. Contact us today to discuss your specific needs and find the perfect Dry Ice Pellet Making Machine for your business.
