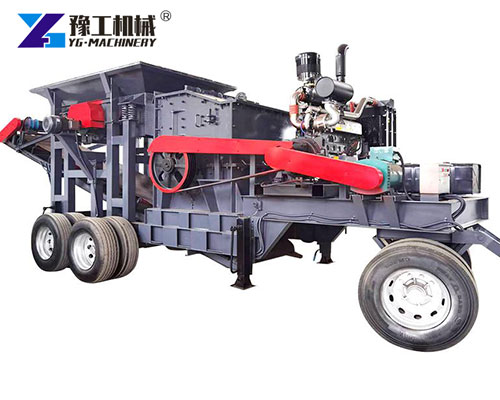

Mobile Jaw Crusher

A Mobile Jaw Crusher is a mobile crushing unit. It is used in mining, construction, and road building. Many projects need fast on-site crushing. A mobile crusher removes the need to move big stones to a fixed plant. Choosing a mobile jaw crusher for sale helps cut transport costs and save time. The unit is ready to work after a short setup. It fits quarry sites, demolition yards, and recycling plants.

WhatsApp/WeChat/Phone: 86 138 3715 9132

Mobile Jaw Crusher Parameters

Model	800×800	800×1000	1000×1200	1200×1200	1200×1500	1400×1600
Motor Power	90kw×4G	110kw×4G	132kw×4G	160kw×4G	185kw×4G	250kw×4G
Diesel Power	195HP	195HP	260HP	330HP	330HP	400HP
Hopper	3500*1800*8mm	3600*2200*8mm	3600*2200*8mm	3800*2200*8mm	3800*2200*8mm	4000*2400*10mm
Hammerhead Weight	15kg	15kg	20kg	36kg	36kg	55kg
Total Weight	10t	12.5t	14t	19t	21t	26t
Belt	7×0.8m	8×0.8m	8×1m	8×1m	8×1m	9×1m
Belt Conveyor Power	5.5kw	5.5kw	7.5kw	7.5kw	7.5kw	7.5kw
Tyre Model×Number	1100×8pcs	1100×8pcs	1100×8pcs	1000×12pcs	1100×12pcs	1100×12pcs
Sand Capacity	30t	45t	55t	65t	80t	100t
Stone Capacity	50t	70t	80t	90t	120t	180t
Overall Size	10*2.8*3.5m	11*2.8*3.5m	11.5*2.8*3.5m	12*3*3.6m	12*3*3.6m	13*3.2*3.7m

Working Principle Of Mobile Jaw Crusher

The Mobile Jaw Crusher works like a simple press. Key parts include the feeder, jaw crusher, conveyor, and chassis. The feeder sends big rocks to the jaw crusher. The jaw crusher breaks rocks with a moving jaw and a fixed jaw. Broken stones go to the conveyor. The whole unit is mounted on a wheeled or tracked chassis. This mobile design lets the machine move fast between sites. It is useful when work moves along a road or mining face.

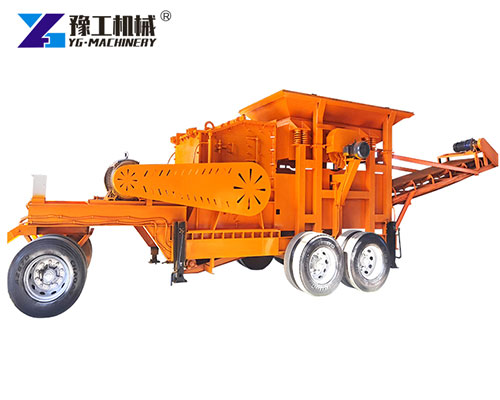

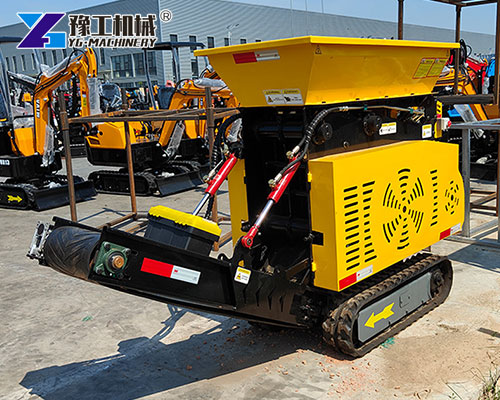

Product Features Of Portable Jaw Crusher Machine

A portable jaw crusher machine has many useful features for site work:

• High Crushing Ratio: Breaks hard rock like granite and limestone.
• Strong Mobility: Wheel or crawler base for quick site move.
• Lower Cost: Less transport and no foundation work needed.
• Power Options: Choice of diesel or electric drive.
• Easy Operation: Simple control panel and fast maintenance access.

These features make a portable jaw crusher machine a good tool for small and large jobs. It helps cut time and improve output.

Applications Of Stone Crushing Equipment

This stone crushing equipment is used in many projects. Main uses include:

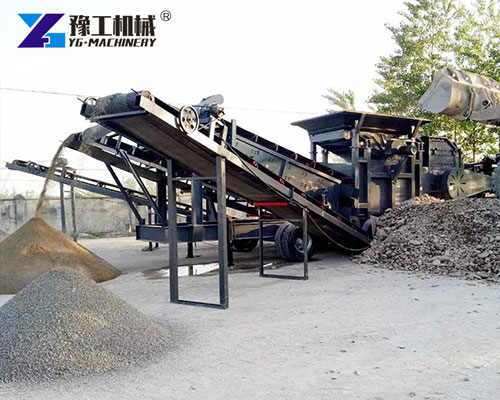

• Construction Waste Recycling: Break concrete and brick for reuse.
• Quarrying: Produces aggregate from granite, limestone, and basalt.
• Road and Railway Work: Make base material for pavement and tracks.
• Concrete Recycling: Crush old concrete for new mixes.

Stone crushing equipment is flexible. You can add screens or a secondary crusher to make different sizes of material.

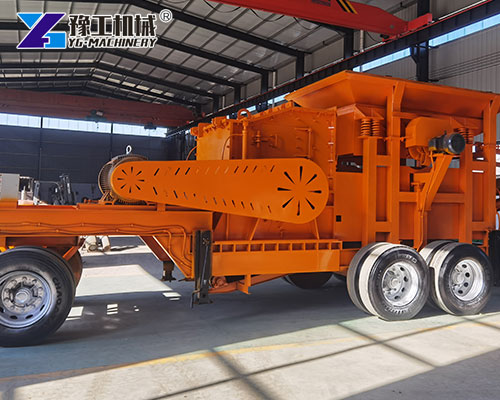

YG Jaw Crusher Advantages and Price

Choosing YG gives clear benefits and a fair jaw crusher price:

• Factory Direct Supply: Lower cost than middlemen.
• Multiple Models: Small, medium, and large mobile jaw crushers.
• Custom Options: Add screens, sand-making, or double-deck conveyors.
• Global Export Experience: Many machines work in Southeast Asia, Africa, and South America.
• After-Sales Support: Installation guidance and spare parts.

YG sets a competitive jaw crusher price while keeping quality and parts life high. This helps projects save money and run longer.

How To Choose A Mobile Jaw Crusher

Pick the right Mobile Jaw Crusher with these simple steps:

1. Check Feed Size: Match maximum rock size to crusher inlet.
2. Determine Output Need: Select a model based on the required tons per hour.
3. Choose Power Type: Diesel for remote sites, electric for plants.

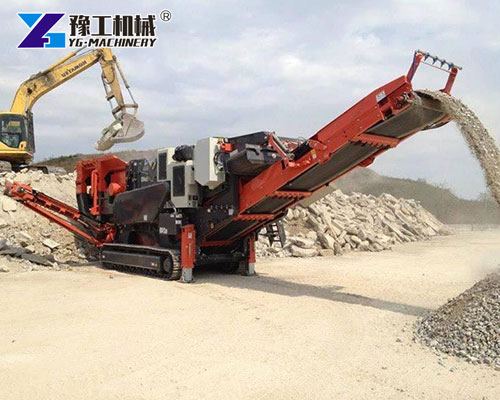

4. Think Mobility: Wheel-mounted for roads, crawler for rough ground.
5. Ask About Service: Fast spare parts and local support are important.

Our team can help recommend a model after you tell us the site conditions and target capacity.

If you are searching for a reliable mobile jaw crusher for sale, contact YG now for a clear quote and solution. Our portable jaw crusher machine can make your site work faster and cut costs. Get a fair jaw crusher price and start crushing sooner.
